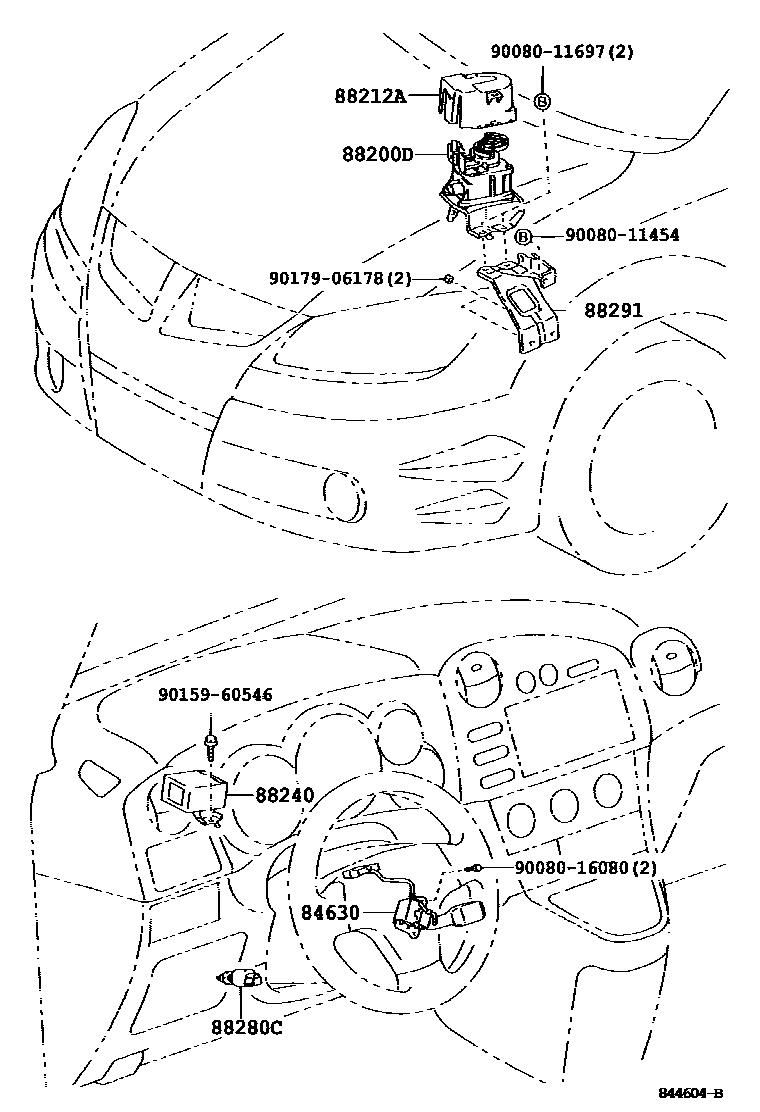

CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-02040iZZE130..NAP; ZZE132,134..NAP;ZZE133..NAP..6F200201-200405

main84630-02041iZZE130,131..NAP200409-200801

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-02030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,133,134..NAP200201-200405

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-02010iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,133,134..NAP200201-200405

88240COMPUTER ASSY, CRUISE CONTROL

main88240-01020iZZE133..NAP200201-200405

main88240-01030iZZE134..NAP200405-200607

main88240-02050iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132..NAP200201-200405

main88240-02060iZZE131..NAP; ZZE133..NAP200405-200607

88280CSWITCH ASSY, CLUTCH

main88280-14030iZZE130..NAP..5F..LE..CND; ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE132,133..NAP..MTM200201-200405

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-02030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,133,134..NAP200201-200405

9008011454

main90080-11454

9008011697

main90080-11697

9008016080

main90080-16080

9015960546

main90159-60546

9017906178

main90179-06178

11 parts on this diagram · 1 diagram in section
