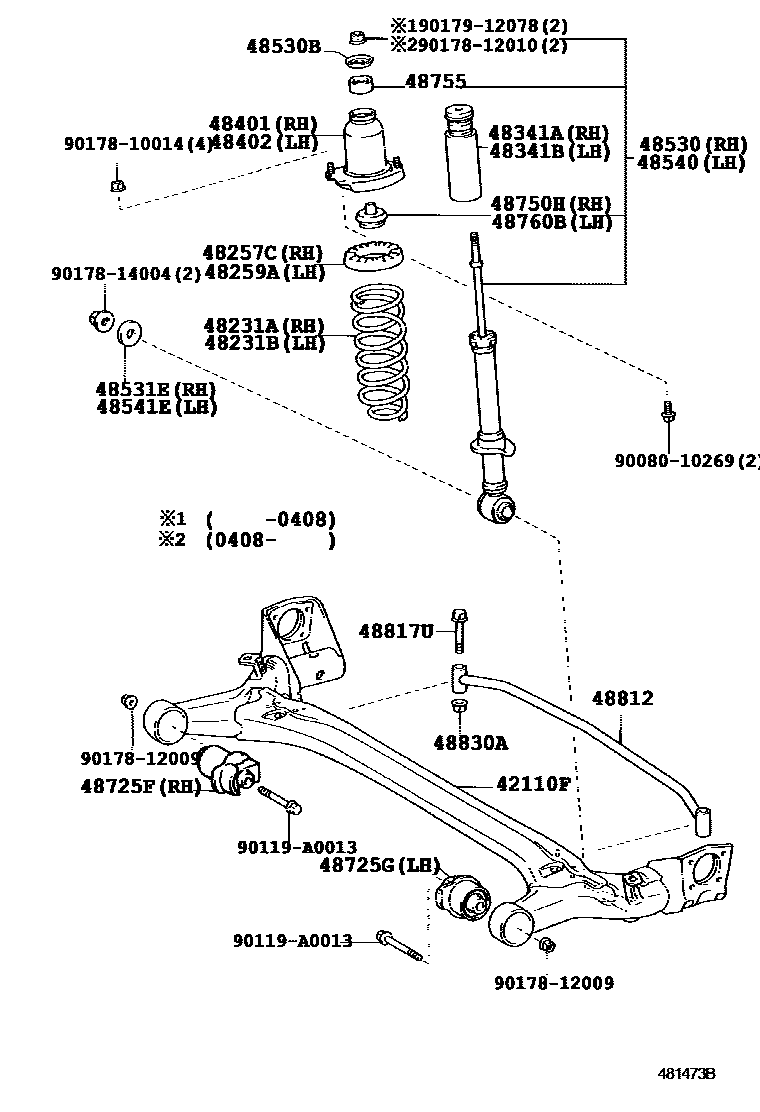

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42101-01010iZZE132..NAP200405

REAR BRAKE : DRUM

main42101-01010iZZE132..NAP200201-200405

main42101-01020iZZE132..NAP..XR..USA200305-200405

REAR BRAKE : DISC

main42101-01020iZZE133..NAP..6F200201-200607

main42101-02050iZZE131..NAP200405-200607

main42101-02120iZZE130..NAP200201-200405

sub42101-12120

48231ASPRING, COIL, REAR RH

main48231-02330iZZE134..NAP200201-200607

main48231-02430iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200205-200405

MEXICO SPEC

main48231-02440iZZE132..NAP..XR..USA200209-200405

MEXICO SPEC

main48231-02471iZZE131..NAP200405-200607

main48231-AB010iZZE130..NAP200201-200712

48231BSPRING, COIL, REAR LH

main48231-02330iZZE134..NAP200201-200607

main48231-02430iZZE130..NAP..4FC..CE..USA200205-200405

MEXICO SPEC

main48231-02440iZZE132..NAP..XR..USA200209-200405

MEXICO SPEC

main48231-02471iZZE131..NAP200405-200607

main48231-AB010iZZE132..NAP200201-200712

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-01020iZZE134..NAP200201-200607

main48257-02040iZZE130..NAP200201-200607

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-01020iZZE134..NAP200201-200607

main48257-02040iZZE132..NAP200201-200607

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-01040iZZE134..NAP200201-200607

main48341-AB010iZZE130..NAP200201-200607

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-01040iZZE134..NAP200201-200607

main48341-AB010iZZE130..NAP200201-200607

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-32010iZZE134..NAP200201-200607

main48401-32020iZZE130..NAP200201-200607

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48401-32010iZZE134..NAP200201-200607

main48403-32010iZZE130..NAP200201-200607

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09540iZZE134..NAP200201-200408

MARK 48530-01040

sub48530-A9550

main48530-09750iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200205-200405

MARK 48530-02340

sub48530-09E00

main48530-09790iZZE132..NAP..XR..USA200209-200405

MARK 48530-02350

sub48530-09C60

main48530-09C60iZZE132..NAP..XR..USA200405-200408

MARK 48530-02351

sub48530-09F80

main48530-09E00iZZE130..NAP..5F..(CE,S)..USA;ZZE130..NAP..4FC..(CE,LE)..USA200405-200408

MARK 48530-02341

sub48530-09F90

main48530-09E10iZZE131..NAP200405-200408

MARK 48530-02380

sub48530-09G00

main48530-09F80iZZE132..NAP..XR..USA200408-200801

MARK 48530-02351

main48530-09F90iZZE130..NAP..5F..(CE,S)..USA;ZZE130..NAP..4FC..(CE,LE)..USA200408-200801

MARK 48530-02341

main48530-09G00iZZE131..NAP200408-200607

MARK 48530-02380

main48530-A9140iZZE132..NAP200201-200405

MARK 48530-AG030

sub48530-A9420

main48530-A9150iZZE133..NAP..6F200201-200405

MARK 48530-AG040

sub48530-A9430

main48530-A9150iZZE132..NAP..XR200201-200405

MARK 48530-AG040,W(17 INCHES DISC WHEEL)

sub48530-A9430

main48530-A9160iZZE130..NAP200201-200405

MARK 48530-AB030

sub48530-A9560

main48530-A9420iZZE132..NAP200405-200408

MARK 48530-AG031

sub48530-A9530

main48530-A9430iZZE132,133..NAP..(XR,XRS)200405-200408

MARK 48530-AG041

sub48530-A9540

main48530-A9440iZZE130..NAP200405-200408

MARK 48530-AB031

sub48530-A9560

main48530-A9530iZZE132..NAP200408-200409

MARK 48530-AG031

main48530-A9540iZZE132,133..NAP..(XR,XRS)200408-200801

MARK 48530-AG041

main48530-A9550iZZE134..NAP200408-200607

MARK 48530-01040

main48530-A9560iZZE130..NAP200408-200801

MARK 48530-AB031

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iZZE130..NAP200201-200607

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90560-14028iZZE133..NAP200201-200607

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09540iZZE134..NAP200201-200408

MARK 48530-01040

sub48530-A9550

main48530-09750iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200205-200405

MARK 48530-02340

sub48530-09E00

main48530-09790iZZE132..NAP..XR..USA200209-200405

MARK 48530-02350

sub48530-09C60

main48530-09C60iZZE132..NAP..XR..USA200405-200408

MARK 48530-02351

sub48530-09F80

main48530-09E00iZZE130..NAP..5F..(CE,S)..USA;ZZE130..NAP..4FC..(CE,LE)..USA200405-200408

MARK 48530-02341

sub48530-09F90

main48530-09E10iZZE131..NAP200405-200408

MARK 48530-02380

sub48530-09G00

main48530-09F80iZZE132..NAP..XR..USA200408-200801

MARK 48530-02351

main48530-09F90iZZE130..NAP..5F..(CE,S)..USA;ZZE130..NAP..4FC..(CE,LE)..USA200408-200801

MARK 48530-02341

main48530-09G00iZZE131..NAP200408-200607

MARK 48530-02380

main48530-A9140iZZE132..NAP200201-200405

MARK 48530-AG030

sub48530-A9420

main48530-A9150iZZE133..NAP..6F200201-200405

MARK 48530-AG040

sub48530-A9430

main48530-A9150iZZE133..NAP..6F200201-200405

MARK 48530-AG040,W(17 INCHES DISC WHEEL)

sub48530-A9430

main48530-A9160iZZE130..NAP200201-200405

MARK 48530-AB030

sub48530-A9560

main48530-A9420iZZE132..NAP200405-200408

MARK 48530-AG031

sub48530-A9530

main48530-A9440iZZE130..NAP200405-200408

MARK 48530-AB031

sub48530-A9560

main48530-A9530iZZE132..NAP200408-200409

MARK 48530-AG031

main48530-A9540iZZE132,133..NAP..(XR,XRS)200408-200801

MARK 48530-AG041

main48530-A9550iZZE134..NAP200408-200607

MARK 48530-01040

main48530-A9560iZZE130..NAP200408-200801

MARK 48530-AB031

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90560-14028iZZE132..NAP200201-200607

48725BUSH, LOWER CONTROL ARM

main48725-32250iZZE134..NAP200201-200607

48725FBUSH, REAR AXLE CARRIER, RH

main48725-02230iZZE130..NAP200201-200405

main48725-47010iZZE131..NAP200405-200607

48725GBUSH, REAR AXLE CARRIER, LH

main48725-02230iZZE133..NAP..4FC200201-200405

main48725-47010iZZE131..NAP200405-200607

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-01020iZZE134..NAP200201-200607

main48750-02050iZZE131..NAP200201-200607

48755SUPPORT, REAR SUSPENSION

main48755-01020iZZE134..NAP200201-200607

main48755-02050iZZE130..NAP200201-200607

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-01020iZZE134..NAP200201-200607

main48750-02050iZZE132..NAP200201-200607

48812BAR, STABILIZER, REAR

main48812-01020iZZE134..NAP200201-200607

main48812-AB010iZZE130..NAP200201-200411

sub48812-AB011

main48812-AB011iZZE130..NAP200412-200607

48817UBOLT(FOR REAR STABILIZER)

main90105-14155iZZE130..NAP200201-200607

48830ANUT(FOR REAR STABILIZER LINK)

main90178-14009iZZE131..NAP200201-200607

main90179-10183iZZE134..NAP200201-200607

9008010269

main90080-10269

90119A0013

main90119-A0013

9017810014

main90178-10014

9017812009

main90178-12009

9017812010

main90178-12010

9017814004

main90178-14004

9017912078

main90179-12078

30 parts on this diagram · 2 diagrams in section
