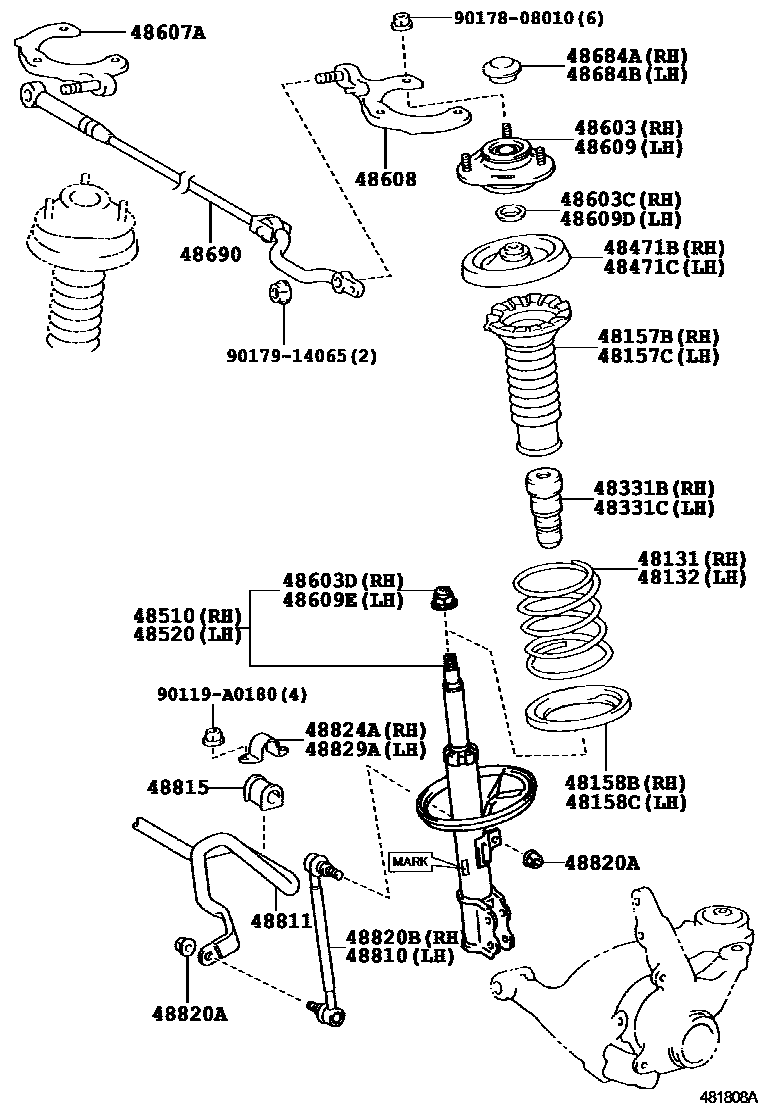

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1

48131SPRING, FRONT COIL, RH

main48131-0Z060iZZE130..NAP..5F..(CE,S)..USA200205-200405

MEXICO SPEC

main48131-0Z070iZZE130..NAP..4FC..CE..USA200205-200405

MEXICO SPEC

main48131-0Z080iZZE132..NAP..5F..XR..USA200209-200405

MEXICO SPEC

main48131-0Z090iZZE132..NAP..4FC..XR..USA200209-200405

MEXICO SPEC

main48131-AB010iZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND200201-200405

L=322.0

main48131-AB010iZZE130..NAP..5F200405-200712

main48131-AB020iZZE130..NAP..4FC200201-200405

L=329.0

main48131-AB020iZZE130..NAP..4FC200405-200712

*CW=4.24,L=329

main48131-AB040iZZE130..NAP..4FC200201-200405

L=328.5

main48131-AB040iZZE130..NAP..4FC200405-200712

*CW=5.03,L=328.5

main48131-AB050iZZE132..NAP..5F200405-200712

main48131-AB050iZZE132..NAP..5F200201-200405

L=304.0

main48131-AB060iZZE133..NAP200405-200712

main48131-AB060iZZE133..NAP..6F;ZZE132..NAP..4FC200201-200405

L=309.5

main48131-AB090iZZE133..NAP..4FC200201-200305

main48135-02060iZZE134..NAP200201-200405

L=333.0

main48135-02060iZZE134..NAP200405-200607

main48135-02100iZZE131..NAP200405-200607

48132SPRING, FRONT COIL, LH

main48131-0Z060iZZE130..NAP..5F..CE..USA200205-200405

MEXICO SPEC

main48131-0Z070iZZE130..NAP..4FC..LE..USA200205-200405

MEXICO SPEC

main48131-0Z080iZZE132..NAP..5F..XR..USA200209-200405

MEXICO SPEC

main48131-0Z090iZZE132..NAP..4FC..XR..USA200209-200405

MEXICO SPEC

main48131-AB010iZZE130..NAP..5F200405-200712

main48131-AB010iZZE130..NAP..5F..LE..CND200201-200405

L=322.0

main48131-AB020iZZE130..NAP..4FC200405-200712

*CW=4.24,L=329

main48131-AB020iZZE130..NAP..4FC200201-200405

L=329.0

main48131-AB040iZZE130..NAP..4FC200201-200405

L=328.5

main48131-AB040iZZE130..NAP..4FC200405-200712

*CW=5.03,L=328.5

main48131-AB050iZZE132..NAP..5F200405-200712

main48131-AB050iZZE132..NAP..5F200201-200405

L=304.0

main48131-AB060iZZE133..NAP200405-200712

main48131-AB060iZZE133..NAP..6F;ZZE132..NAP..4FC200201-200405

L=309.5

main48131-AB090iZZE133..NAP..4FC200201-200305

main48135-02060iZZE134..NAP200201-200405

L=333.0

main48135-02060iZZE134..NAP200405-200607

main48135-02100iZZE131..NAP200405-200607

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02070iZZE132,134..NAP;ZZE133..NAP..6F200201-200607

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02070iZZE132..NAP200201-200607

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02060iZZE133..NAP..4FC200201-200607

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02060iZZE131..NAP200201-200607

48331BBUMPER, FRONT SPRING, RH

main48331-AB010iZZE133..NAP..4FC200201-200607

48331CBUMPER, FRONT SPRING, LH

main48331-AB010iZZE133..NAP..4FC200201-200607

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-02050iZZE133..NAP..4FC200201-200607

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-02050iZZE133..NAP..4FC200201-200607

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09660iZZE134..NAP200201-200302

MARK 48510-01040

sub48510-A9260

main48510-09860iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200205-200210

MARK 48510-02320

sub48510-09861

main48510-09861iZZE130..NAP..5F..(CE,S)..USA;ZZE130..NAP..4FC..(CE,LE)..USA200405-200801

MARK 48510-02321,MEXICO SPEC

main48510-09861iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200210-200405

MARK 48510-02321

main48510-09B00iZZE131..NAP200405-200607

MARK 48510-02350

main48510-A9210iZZE132..NAP200201-200305

MARK 48510-AG030

sub48510-A9330

main48510-A9220iZZE132,133..NAP..(XR,XRS)200201-200305

MARK 48510-AG040

sub48510-A9340

main48510-A9230iZZE130..NAP200201-200305

MARK 48510-AB030

sub48510-A9320

main48510-A9260iZZE134..NAP200302-200607

MARK 48510-01041

main48510-A9270iZZE132..NAP..XR..USA200209-200405

MARK 48510-02330,MEXICO SPEC

main48510-A9320iZZE130..NAP200305-200801

MARK 48510-AB031

main48510-A9330iZZE132..NAP200305-200409

MARK 48510-AG031

main48510-A9340iZZE133..NAP200305-200405

MARK 48510-AG041

main48510-A9340iZZE132..NAP..XR200305-200405

MARK 48510-AG041,W(17 INCHES DISC WHEEL)

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09560iZZE134..NAP200201-200302

MARK 48520-01040

sub48520-09740

main48520-09710iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200205-200210

MARK 48520-02320

sub48520-09711

main48520-09711iZZE130..NAP..5F..(CE,S)..USA;ZZE130..NAP..4FC..(CE,LE)..USA200405-200801

MARK 48520-02321,MEXICO SPEC

main48520-09711iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200210-200405

MARK 48520-02321

main48520-09740iZZE134..NAP200302-200607

MARK 48520-01041

main48520-09750iZZE132..NAP..XR..USA200209-200405

MARK 48520-02330,MEXICO SPEC

main48520-09A20iZZE131..NAP200405-200607

MARK 48520-02350

main48520-A9130iZZE132..NAP200201-200305

MARK 48520-AG030

sub48520-A9190

main48520-A9140iZZE132,133..NAP..(XR,XRS)200201-200305

MARK 48520-AG040

sub48520-A9200

main48520-A9150iZZE130..NAP200201-200305

MARK 48520-AB030

sub48520-A9180

main48520-A9180iZZE130..NAP200305-200801

MARK 48520-AB031

main48520-A9190iZZE132..NAP200305-200409

MARK 48520-AG031

main48520-A9200iZZE133..NAP200305-200405

MARK 48520-AG041

main48520-A9200iZZE132..NAP..XR200305-200405

MARK 48520-AG041,W(17 INCHES DISC WHEEL)

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-01050iZZE133..NAP..4FC200201-200607

main48609-01050iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200205-200405

MEXICO SPEC

main48609-02120iZZE130..NAP..5F..LE..CND200201-200405

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iZZE130..NAP200201-200607

main90303-22002iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200205-200405

MEXICO SPEC

main90303-22049iZZE130..NAP..5F..LE..CND200201-200405

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iZZE132..NAP200201-200607

48607ABRACKET SUB-ASSY, TOWER BAR, RH

main48607-12030iZZE132..NAP..XR..USA200405-200607

48608BRACKET SUB-ASSY, TOWER BAR, LH

main48608-12030iZZE132..NAP..XR..USA200405-200607

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-01050iZZE132,134..NAP;ZZE133..NAP..6F200201-200607

main48609-01050iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200205-200405

MEXICO SPEC

main48609-02120iZZE130..NAP200201-200405

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iZZE130..NAP200201-200607

main90303-22002iZZE130..NAP..5F..CE..USA;ZZE130..NAP..4FC..LE..USA200205-200405

MEXICO SPEC

main90303-22049iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND200201-200405

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iZZE132,134..NAP;ZZE133..NAP..6F200201-200607

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-01010iZZE130..NAP200201-200301

sub48684-52010

main48684-52010iZZE130..NAP..5F..LE..CND200301-200607

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-01010iZZE130..NAP200201-200301

sub48684-52010

main48684-52010iZZE130..NAP200301-200607

48690BAR ASSY, FRONT SUSPENSION, TOWER

main48690-12040iZZE131..NAP200405-200607

main48690-12090iZZE132..NAP..XR..USA200607

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02030iZZE130..NAP..5F..LE..CND200201-200607

48811BAR, STABILIZER, FRONT

main48811-01010iZZE134..NAP200201-200607

sub48811-01011

main48811-AB010iZZE132,133..NAP200201-200710

sub48811-AB011

main48811-AB011iZZE130..NAP200711-200801

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-02100iZZE132,134..NAP;ZZE133..NAP..6F200201-200607

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND200201-200607

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02030iZZE133..NAP..4FC200201-200607

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-02030iZZE133..NAP..4FC200201-200607

sub48824-06020

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-02030iZZE133..NAP..4FC200201-200607

sub48824-06020

90119A0180

main90119-A0180

9017808010

main90178-08010

9017914065

main90179-14065

33 parts on this diagram · 2 diagrams in section
