ALTERNATOR

0001 112V 80A 0002 112V 80A

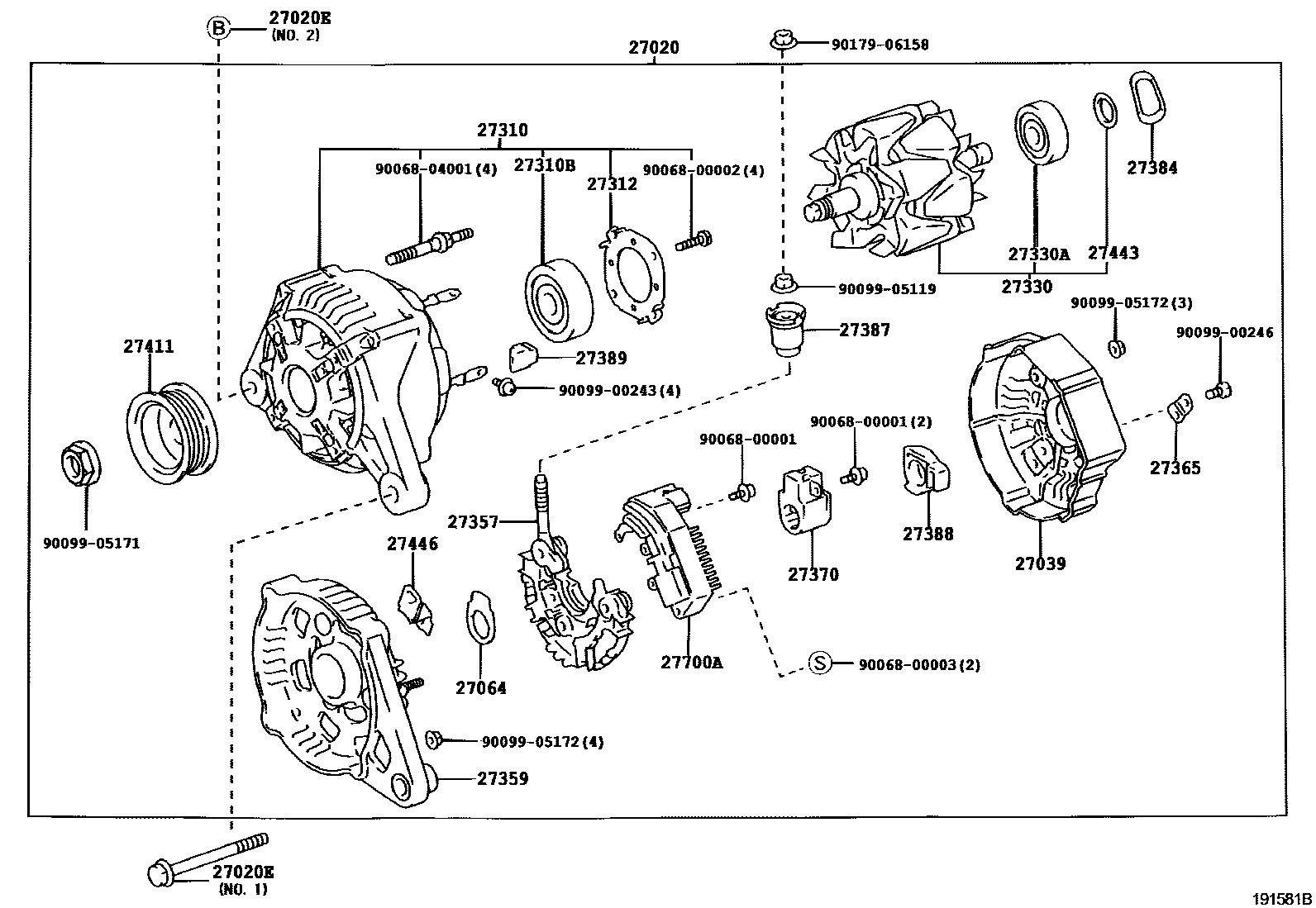

27020ALTERNATOR ASSY

main27060-0D110i1ZZFE..ZZE132,134..NAP200201-200405

12V 80A

main27060-22090i2ZZGE..ZZE133..NAP200201-200607

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE..ZZE132,134..NAP200201-200405

NO.1

main90105-10223i2ZZGE..ZZE133..NAP200201-200607

main91511-80830i1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND200201-200405

NO.2

27039COVER, ALTERNATOR REAR END

main27039-0H010i1ZZFE..ZZE132,134..NAP200201-200607

27064SEAL, ALTERNATOR PLATE

main27064-0A020i1ZZFE..ZZE132,134..NAP200201-200607

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0D110i1ZZFE..ZZE132,134..NAP200201-200405

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10015i1ZZFE..ZZE132,134..NAP200201-200405

main90068-10026i1ZZFE..ZZE130..NAP200405-200801

27312PLATE, RETAINER

main27312-0A020i1ZZFE..ZZE130..NAP200201-200405

27330ROTOR ASSY, ALTERNATOR

main27330-0H010i1ZZFE..ZZE132,134..NAP200201-200607

main27330-74550i2ZZGE..ZZE131..NAP200201-200607

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10001i1ZZFE..ZZE132,134..NAP200201-200801

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-0H010i1ZZFE..ZZE132..NAP200201-200607

main27357-22200i2ZZGE..ZZE133..NAP200201-200607

27359FRAME, ALTERNATOR RECTIFIER END

main27359-0D010i1ZZFE..ZZE132,134..NAP200201-200607

27365PLATE, TERMINAL

main27365-55080i1ZZFE..ZZE130..NAP200201-200405

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i1ZZFE,2ZZGE..ZZE132,133,134..NAP200201-200607

27384WASHER

main27384-0A020i1ZZFE..ZZE132,134..NAP200201-200607

27387INSULATOR, TERMINAL

main27387-42021i1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND200201-200607

27388COVER, ALTERNATOR BRUSH

main27388-0A020i1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND200201-200405

sub27388-42010

main27388-42010i1ZZFE..ZZE132,134..NAP200405

27389INSULATOR, TERMINAL

main27389-0A020i1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND200201-200405

sub27389-42010

main27389-42010i1ZZFE..ZZE132,134..NAP200405

27411PULLEY, ALTERNATOR

main27411-0D010i1ZZFE..ZZE132..NAP200201-200607

main27411-50050i2ZZGE..ZZE133..NAP200201-200607

27443COVER, ALTERNATOR BEARING

main27443-0A020i1ZZFE..ZZE132,134..NAP200201-200405

27446CLIP, ALTERNATOR CORD

main27446-22040i1ZZFE..ZZE132,134..NAP200201-200607

27700AREGULATOR ASSY, GENERATOR

main27700-20050i1ZZFE,2ZZGE..ZZE132,133,134..NAP200201-200405

9006800001

main90068-00001

9006800002

main90068-00002

9006800003

main90068-00003

9006804001

main90068-04001

9009900243

main90099-00243

9009900246

main90099-00246

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

31 parts on this diagram · 2 diagrams in section
