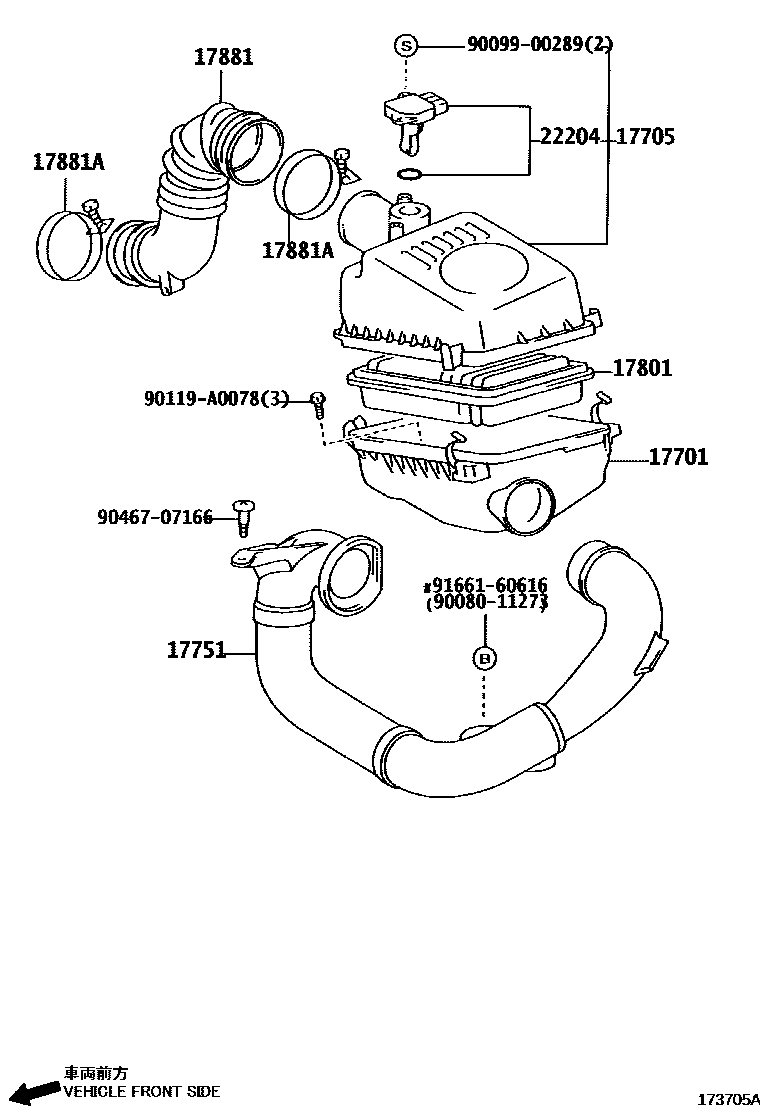

AIR CLEANER

0001 1 0003 1 0005 1

17701CASE SUB-ASSY, AIR CLEANER

main17701-0D050i1ZZFE..ZZE132,134..NAP200201-200508

main17701-0D130i1ZZFE..ZZE130..NAP200405-200607

main17701-22111i2ZZGE..ZZE131..NAP200405-200607

main17701-22120i2ZZGE..ZZE133..NAP..6F200201-200405

17705CAP SUB-ASSY, AIR CLEANER

main17705-0D050i1ZZFE..ZZE130..NAP..5F..LE..CND200201-200508

main17705-0D070i1ZZFE..ZZE132..NAP200405-200607

sub17705-0D071

main17705-22150i2ZZGE..ZZE133..NAP200201-200305

main17705-22151i2ZZGE..ZZE133..NAP..6F200305-200403

sub17705-22152

main17705-22152i2ZZGE..ZZE133..NAP..6F200403-200405

main17705-22170i2ZZGE..ZZE131..NAP200405-200607

17751INLET, AIR CLEANER, NO.1

main17751-0D050i1ZZFE..ZZE132,134..NAP200201-200607

main17751-0D060i2ZZGE..ZZE133..NAP200305-200607

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0D020i1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND200201-200607

(L)

main17801-22020i1ZZFE..ZZE130..NAP..5F..LE..CND200201-200607

(J)

17881HOSE, AIR CLEANER, NO.1

main17881-0D090i1ZZFE..ZZE132,134..NAP200201-200412

main17881-0D120i1ZZFE..ZZE132..NAP200405

main17881-0D140i2ZZGE..ZZE133..NAP200405-200607

main17881-0D190i1ZZFE..ZZE134..NAP200412-200501

sub17881-0D191

main17881-0D191i1ZZFE..ZZE134..NAP200501-200607

main17881-22090i2ZZGE..ZZE133..NAP200201-200405

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i1ZZFE..ZZE132..NAP200405

NO.2

main96111-10800i1ZZFE..ZZE134..NAP200201-200607

NO.1

main96111-10800i1ZZFE..ZZE130..NAP..5F..LE..CND200201-200405

main96111-10850i2ZZGE..ZZE131..NAP200201-200607

NO.2

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0D030i1ZZFE..ZZE130..NAP..5F..LE..CND200201-200607

sub22204-22010

main22204-22010i2ZZGE..ZZE133..NAP..6F200305-200607

9008011273

main90080-11273

9009900289

main90099-00289

90119A0078

main90119-A0078

9046707166

main90467-07166

9166160616

main91661-60616

12 parts on this diagram · 3 diagrams in section
