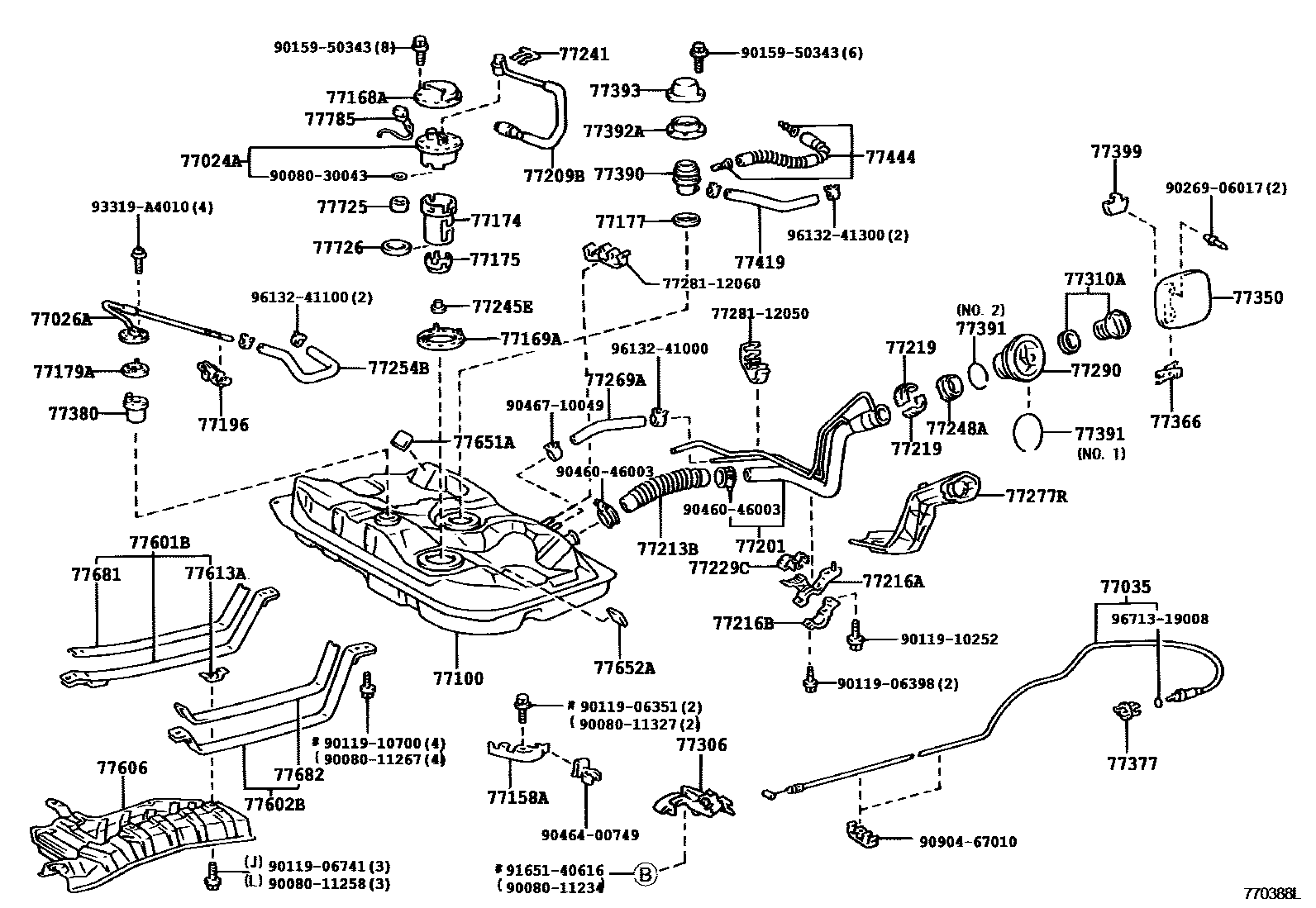

FUEL TANK & TUBE

0001 1 0002 1

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-02010×2iZZE110200005

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-02010×2iZZE110199708

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02020iZZE110199708

77100TANK ASSY, FUEL

main77001-02041iZZE110199708-199908

main77001-02070iZZE110199908-200005

77158ASUPPORT, TANK SUCTION TUBE

main77158-12040iZZE110199708-200005

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iZZE110199708-200005

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02020iZZE110199708-200005

77174SUPPORT, FUEL SUCTION, NO.1

main77174-02010iZZE110199708-200005

77175SUPPORT, FUEL SUCTION, NO.2

main77175-02010iZZE110199708-200005

77177GASKET, CHECK VALVE

main77177-02010iZZE110199708-200005

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010×2iZZE110199708

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02020×2iZZE110199708

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-02010iZZE110199708

(L)

main77201-12560iZZE110199708

(J)

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-02020iZZE110199708-200005

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-02010iZZE110199708

(L)

main77213-12210iZZE110199708

(J)

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-02010iZZE110199708

(L)

main77104-12010iZZE110199708

(J)

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-02010iZZE110199708

(L)

main77216-12070iZZE110199708

(J)

77219COVER, FUEL TANK FILLER PIPE

main77219-06020×2iZZE110199708

77229CCLAMP, BREATHER TUBE

main77229-02010iZZE110199708

(L)

main77229-12040iZZE110199708

(J)

77241TUBE, FUEL MAIN, NO.1

main77241-02010iZZE110199708-200005

77245ECAP, FUEL SUCTION

main77245-02010iZZE110199708-200005

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-06020iZZE110199708

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main90080-44092iZZE110199708

77269AHOSE, FUEL TANK BREATHER

main77269-12040iZZE110199708

(J)

main90080-44090iZZE110199708

(L)

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-02040iZZE110199708

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12110iZZE110199708

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-02010-C0iZZE110..(CE2,VE)..USA199708

BLACK,TRIM1#,4#

77310ACAP ASSY, FUEL TANK

main77310-01012iZZE110199708-199808

main77310-06020iZZE110199808

77350LID ASSY, FUEL FILLER OPENING

main77350-12370iZZE110199708

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iZZE110199708

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-02010iZZE110199708

77380VALVE ASSY, FUEL CUT OFF

main77380-26010×2iZZE110199708

77390VALVE ASSY, FUEL TANK INLET

main77390-12010iZZE110199708-199803

main77390-12011iZZE110199803-200005

77391RING, FUEL INLET BOX

main77391-02030iZZE110199708

NO.1

main77391-02040iZZE110199708

NO.2

77392ASUPPORT, CHECK VALVE

main77392-02010iZZE110199708-200005

77393PROTECTOR, CHECK VALVE

main77393-12020iZZE110199708-200005

77399HANGER, FUEL TANK CAP

main77399-12020iZZE110199708

77419HOSE, FUEL, NO.3

main90080-44091iZZE110199708-200005

77444HOSE, FUEL TANK VENT

main77404-02010iZZE110199708

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-02020iZZE110199708

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-02020iZZE110199708

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02010iZZE110199708

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-02010iZZE110199708

77651ACUSHION, FUEL TANK, NO.1

main77651-02010×3iZZE110199708

77652ACUSHION, FUEL TANK, NO.2

main77652-02010×3iZZE110199708-200005

77681SEAT, FUEL TANK BAND, RH

main77681-02010iZZE110199708

77682SEAT, FUEL TANK BAND, LH

main77681-02010iZZE110199812

main77682-02010iZZE110199708-199812

77725CUSHION, FUEL FILTER, NO.1

main77725-02010iZZE110199708-200005

77726CUSHION, FUEL FILTER, NO.2

main77726-02010iZZE110199708-200005

77785HARNESS, FUEL PUMP

main77785-02010iZZE110199708-200005

7728112050BRACKET, FUEL MAIN TUBE, NO.1

main77281-12050

7728112060BRACKET, FUEL MAIN TUBE, NO.1

main77281-12060

9008011234

main90080-11234

9008011258

main90080-11258

9008011267

main90080-11267

9008011327

main90080-11327

9008030043

main90080-30043

9011906351

main90119-06351

9011906398

main90119-06398

9011906741

main90119-06741

9011910252

main90119-10252

9011910700

main90119-10700

9015950343

main90159-50343

9026906017

main90269-06017

9046046003

main90460-46003

9046400749

main90464-00749

9046710049

main90467-10049

9090467010

main90904-67010

9165140616

main91651-40616

93319A4010

main93319-A4010

9613241000

main96132-41000

9613241100

main96132-41100

9613241300

main96132-41300

9671319008

main96713-19008

74 parts on this diagram · 2 diagrams in section
