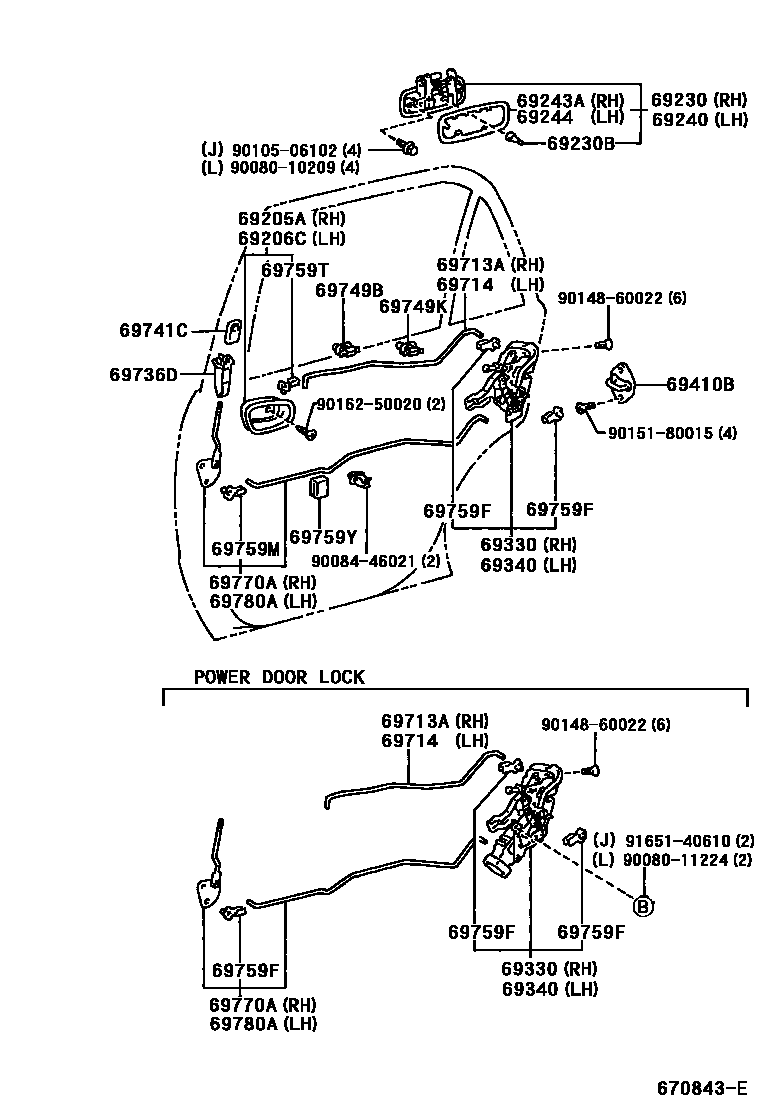

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02050-B1iZZE110..CE1,CE2,LE1,LE2,VE199708

MD.CHARCOAL,TRIM1#

main69205-02050-C0iZZE110..S200005

BLACK,TRIM2#

main69205-02050-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02050-B1iZZE110..CE1,CE2,LE1,LE2,VE199708

MD.CHARCOAL,TRIM1#

main69206-02050-C0iZZE110..S200005

BLACK,TRIM2#

main69206-02050-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-02030iZZE110..CE1,CE2,VE199708

main69230-02040-A0iZZE110..LE1199708-199908

SUPER WHITE 2,040

main69230-02040-B1iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199808-199908

SILVER ME.OP.,1C4

main69230-02040-C0iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199708-199908

BLACK ME,205

main69230-02040-C1iZZE110..CE1..CND;ZZE110..LE1,LE2,S,VE199908

BLACK MC.,209

main69230-02040-D0iZZE110..LE1199708-199808

MAGENTA MC.,3L3

main69230-02040-D1iZZE110..CE1..CND;ZZE110..LE1,LE2,S,VE199708-199908

CHAMPAGNE M.M.,3M5

main69230-02040-D2iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199808-200005

RED MC.,3M8

main69230-02040-D3iZZE110..LE2,S200005

RED M.M.,3P1

main69230-02040-E0iZZE110..LE1199708-199808

APRICOT M.M.,4N4

main69230-02040-G0iZZE110..LE1199708-199808

GREEN M.M.,6P5

main69230-02040-G1iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199808-199908

DK GREEN MICA,6M1

main69230-02040-G2iZZE110..CE1..CND;ZZE110..LE1,LE2,S,VE199908

GREEN MC.,6R1

main69230-02040-H0iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199708-199908

DK.TURQUOISE MC.,760

main69230-02040-H1iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199808-199908

BLUE AQUA ME.,762

main69230-02040-J0iZZE110..LE1199708-199808

DK.BLUE MC.,8K8

main69230-02040-J1iZZE110..LE1,VE;ZZE110..CE1..CND199808-200005

BLUE M.M.,8M8

main69230-02040-J2iZZE110..LE2,S200005

DK.BLUE MC.,8P4

main69230-02040-K0iZZE110..LE1199708-199808

LAVENDER ME.,932

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90080-54005iZZE110199708

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-02030iZZE110..CE1,CE2,VE199708

main69240-02040-A0iZZE110..CE1..CND;ZZE110..LE1,LE2,S,VE199708-199908

SUPER WHITE 2,040

main69240-02040-B1iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199808-199908

SILVER ME.OP.,1C4

main69240-02040-C0iZZE110..LE1199708-199908

BLACK ME,205

main69240-02040-C1iZZE110..CE1..CND;ZZE110..LE1,LE2,S,VE199908

BLACK MC.,209

main69240-02040-D0iZZE110..LE1199708-199808

MAGENTA MC.,3L3

main69240-02040-D1iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199708-199908

CHAMPAGNE M.M.,3M5

main69240-02040-D2iZZE110..LE1,VE;ZZE110..CE1..CND199808-200005

RED MC.,3M8

main69240-02040-D3iZZE110..LE2,S200005

RED M.M.,3P1

main69240-02040-E0iZZE110..LE1199708-199808

APRICOT M.M.,4N4

main69240-02040-G0iZZE110..LE1199708-199808

GREEN M.M.,6P5

main69240-02040-G1iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199808-199908

DK GREEN MICA,6M1

main69240-02040-G2iZZE110..CE1..CND;ZZE110..LE1,LE2,S,VE199908

GREEN MC.,6R1

main69240-02040-H0iZZE110..LE1199708-199908

DK.TURQUOISE MC.,760

main69240-02040-H1iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199808-199908

BLUE AQUA ME.,762

main69240-02040-J0iZZE110..LE1199708-199808

DK.BLUE MC.,8K8

main69240-02040-J1iZZE110..5F..LE1;ZZE110..CE1..CND;ZZE110..4FC..(LE1,VE);ZZE110..(3FC,5F)..VE..CND199808-200005

BLUE M.M.,8M8

main69240-02040-J2iZZE110..LE2,S200005

DK.BLUE MC.,8P4

main69240-02040-K0iZZE110..LE1199708-199808

LAVENDER ME.,932

69243APAD, REAR DOOR OUTSIDE HANDLE, RH

main69243-02020iZZE110199708

69244PAD, REAR DOOR OUTSIDE HANDLE, LH

main69244-02020iZZE110199708

69330LOCK ASSY, REAR DOOR, RH

main69305-02040iZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)199708

*100

main69305-02050iZZE110199708

W(POWER DOOR LOCK),*100

main69305-02070iZZE110..VE..USA199708-200005

W(THEFT-DETERRENT SYSTEM)

main69305-02080iZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)199708

*101

main69305-02090iZZE110199708

W(POWER DOOR LOCK),*101

69340LOCK ASSY, REAR DOOR, LH

main69306-02040iZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)199708

*100

main69306-02050iZZE110199708

W(POWER DOOR LOCK),*100

main69306-02070iZZE110..VE..USA199708-200005

W(THEFT-DETERRENT SYSTEM)

main69306-02080iZZE110..(CE1,CE2,LE2,S,VE)..(CND,USA)199708

*101

main69306-02090iZZE110199708

W(POWER DOOR LOCK),*101

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02020iZZE110199708

*101

main69410-02030iZZE110199708

*100

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-02020iZZE110199708

*100

main69713-02030iZZE110199708

*101

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-02020iZZE110..VE..USA199708-200005

main69714-02020iZZE110199708

*100

main69714-02030iZZE110199708

*101

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12140iZZE110199708

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-04010-B3iZZE110..CE1,CE2,LE1,LE2,VE199708

MD.CHARCOAL,TRIM1#

main69741-04010-C0iZZE110..S200005

BLACK,TRIM2#

main69741-04010-E1iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

69749BCLAMP, REAR DOOR LOCK LINK

main90467-04014iZZE110199708

69749KCLAMP, REAR DOOR LOCK

main90467-08117iZZE110199708

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20040iZZE110199708-200005

YELLOW

main69759-20050iZZE110199708-200005

BROWN

69759MSNAP, DOOR LOCK CONTROL LINK

main69759-20020iZZE110199708-200005

WHITE

main69759-20030iZZE110199708-200005

BLUE

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-01030iZZE110199708

LH

main69759-01040iZZE110199708

RH

69759YSILENCER, REAR DOOR LOCK LINK

main69759-20390iZZE110199708

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-02020iZZE110199708

*100

main69770-02030iZZE110199708

*101

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-02020iZZE110..VE..USA199708-200005

W(THEFT-DETERRENT SYSTEM)

main69780-02020iZZE110199708

*100

main69780-02030iZZE110199708

*101

9008010209

main90080-10209

9008011224

main90080-11224

9008446021

main90084-46021

9010506102

main90105-06102

9014860022

main90148-60022

9015180015

main90151-80015

9016250020

main90162-50020

9165140610

main91651-40610

30 parts on this diagram · 2 diagrams in section
