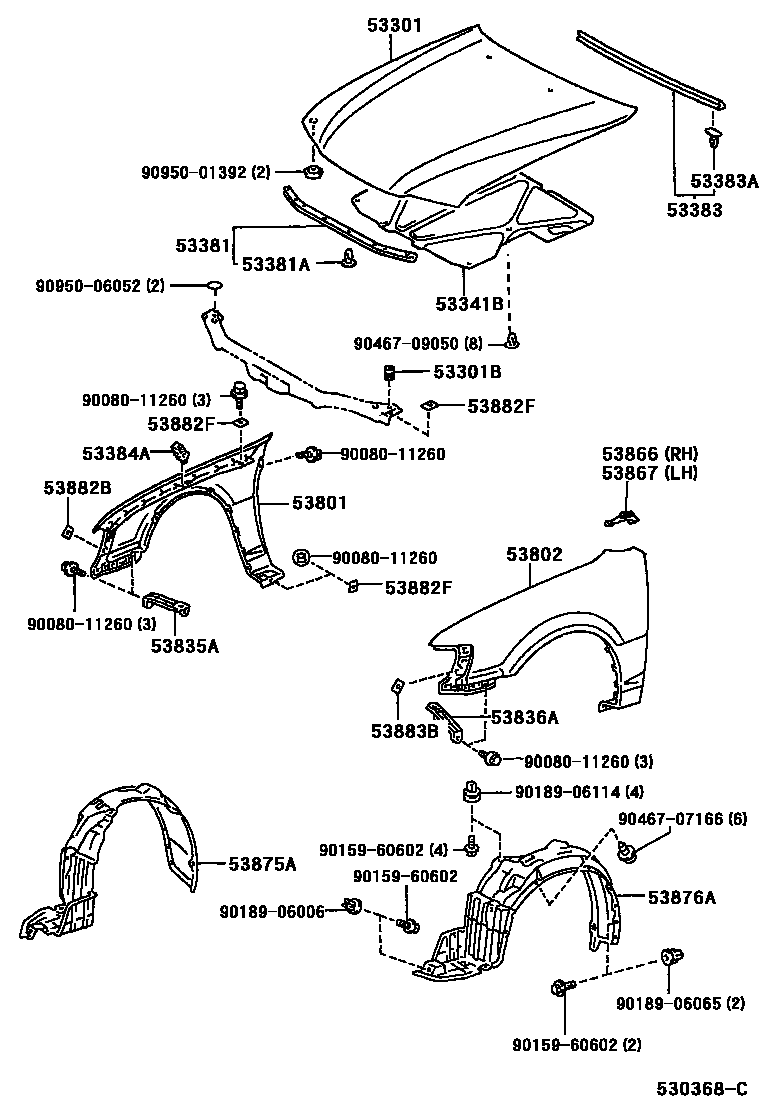

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-02050iZZE110199708

53301BCUSHION, HOOD BUMPER

main90541-15021×2iZZE110199708

53341BINSULATOR, HOOD

main53341-12120iZZE110199708-199908

main53341-12121iZZE110199908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02020iZZE110199708

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46010×8iZZE110199708

53383SEAL, HOOD TO COWL TOP

main53383-02020iZZE110199708

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90080-46196×8iZZE110199708

53384ABUMPER, FENDER TO HOOD

main53384-02020×2iZZE110199708

53801FENDER SUB-ASSY, FRONT RH

main53811-02050iZZE110199708-199912

main53811-02051iZZE110199912

53802FENDER SUB-ASSY, FRONT LH

main53812-02050iZZE110199708-199912

main53812-02051iZZE110199912

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-02010iZZE110199708

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-02010iZZE110199708

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-12020iZZE110199708

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-12020iZZE110199708

53875ALINER, FRONT FENDER, RH

main53875-02030iZZE110199708-200005

main53875-02060iZZE110200005

53876ALINER, FRONT FENDER, LH

main53876-02030iZZE110199708-200005

main53876-02060iZZE110200005

53882BSEAL, FRONT FENDER, RH

main53882-16030iZZE110199708

53882FSEAL, FRONT FENDER

main53882-16030×8iZZE110199708

53883BSEAL, FRONT FENDER, LH

main53882-16030iZZE110199708

9008011260

main90080-11260

9015960602

main90159-60602

9018906006

main90189-06006

9018906065

main90189-06065

9018906114

main90189-06114

9046707166

main90467-07166

9046709050

main90467-09050

9095001392

main90950-01392

9095006052

main90950-06052

28 parts on this diagram · 1 diagram in section
