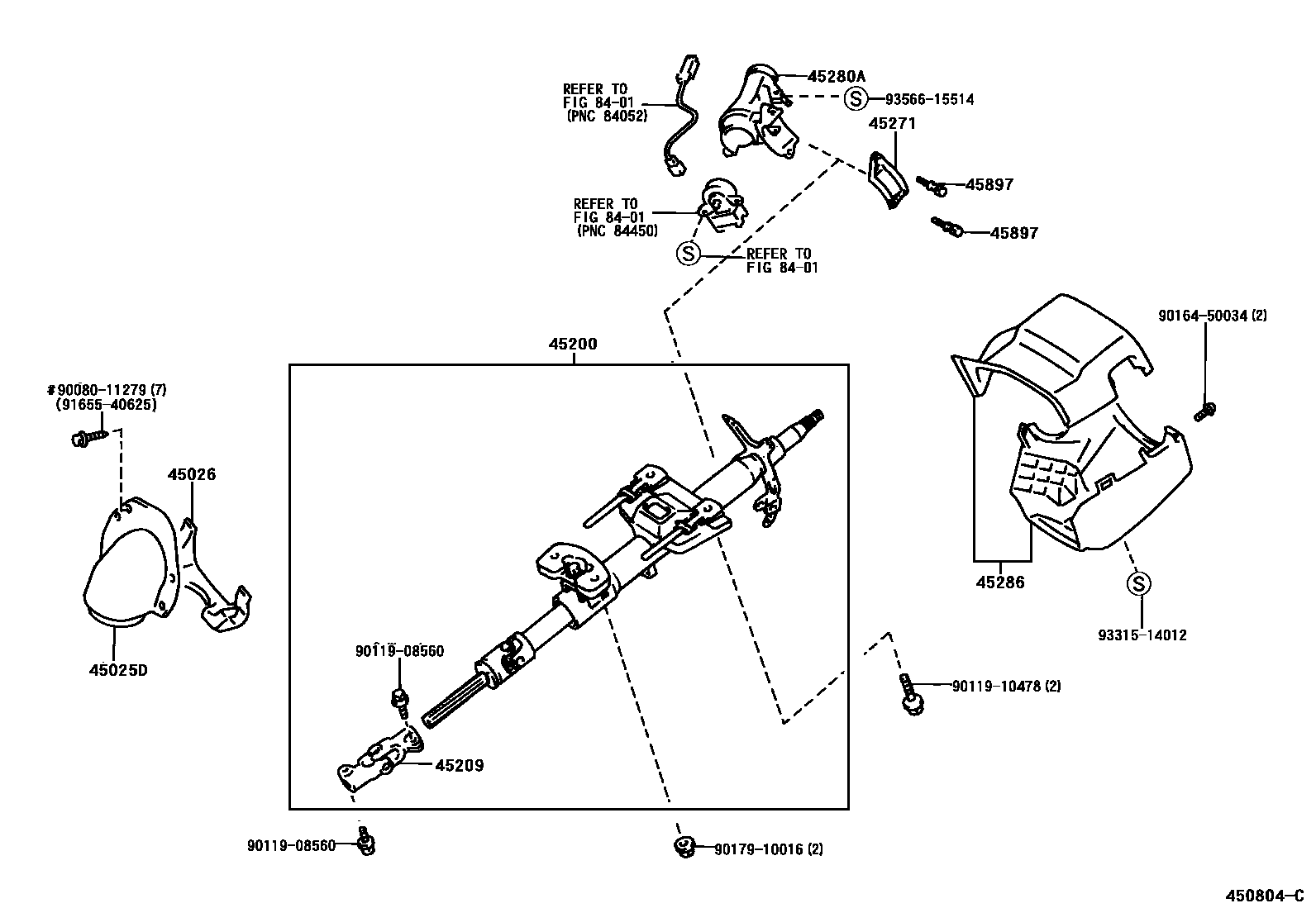

STEERING COLUMN & SHAFT

0001 1 0002 1W(TILT STEERING)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12210iZZE110199708

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-02010iZZE110199708

(L)

main45026-12040iZZE110199708

(J)

45200POST ASSY, STEERING

main45200-02080iZZE110..VE199708-199810

main45200-02090iZZE110199708-199810

W(TILT STEERING)

main45200-02091iZZE110199810

W(TILT STEERING)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12080iZZE110199708

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iZZE110199708

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12331iZZE110..5F199708

main45280-12341iZZE110..ATM199708

45286COVER, STEERING COLUMN

main45286-02909-B3iZZE110..CE2,VE199708

DK.CHARCOAL,TRIM1#

main45286-02909-C0iZZE110..LE2,S200005

BLACK,TRIM2#

main45286-02909-E3iZZE110..(CE2,VE)..(CND,USA)199708

DK.NEUTRAL BONE,TRIM4#

main45286-02910-B0iZZE110..CE1,CE2,LE1,LE2,VE199708

W(TILT STEERING),DK.CHARCOAL,TRIM1#

main45286-02910-C0iZZE110..S200005

W(TILT STEERING),BLACK,TRIM2#

main45286-02910-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

W(TILT STEERING),DK.NEUTRAL BONE,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iZZE110199708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011279

main90080-11279

9011908560

main90119-08560

9011910478

main90119-10478

9016450034

main90164-50034

9017910016

main90179-10016

9165540625

main91655-40625

9331514012

main93315-14012

9356615514

main93566-15514

17 parts on this diagram · 2 diagrams in section
