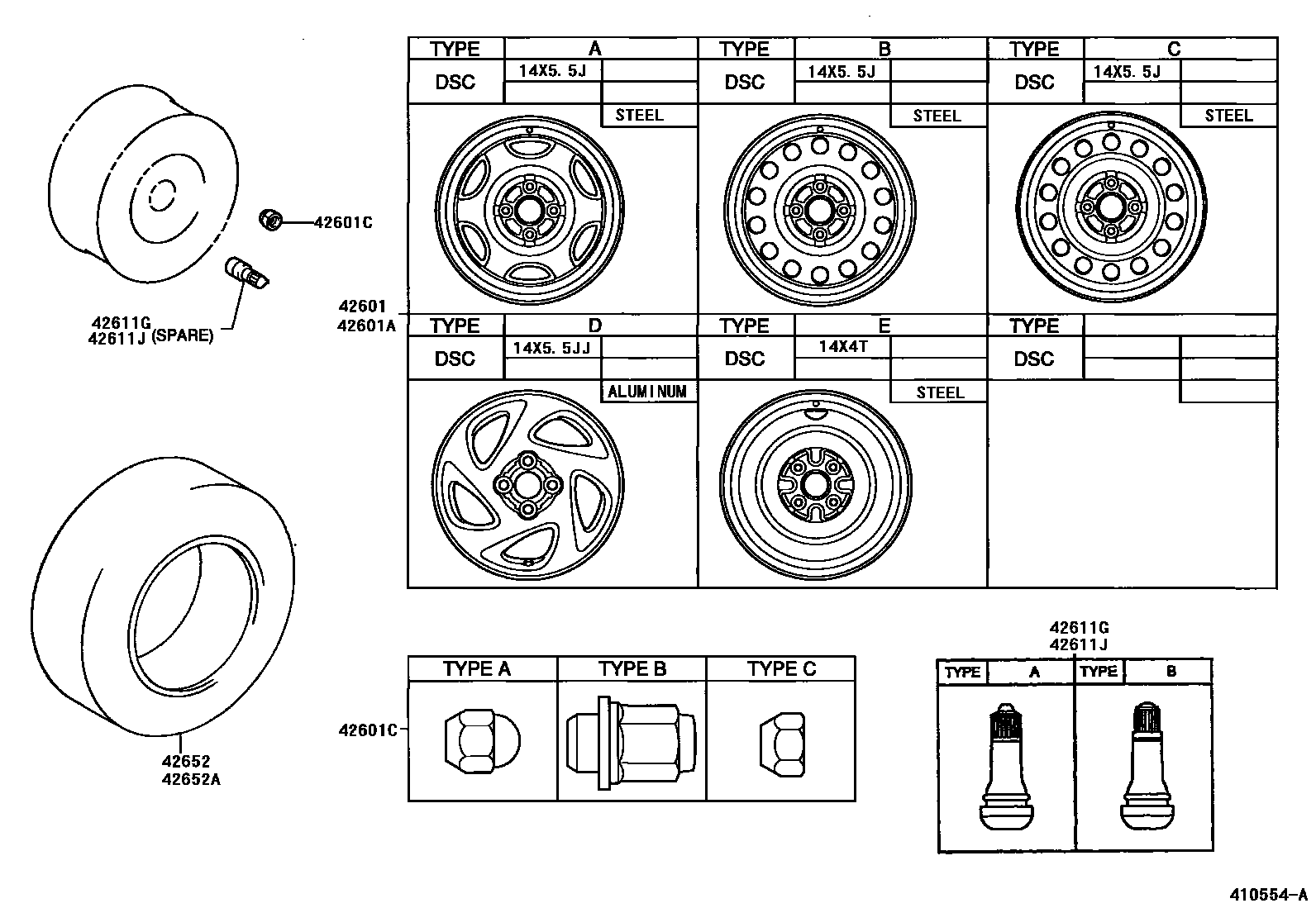

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-01140×4iZZE110..(CE2,VE)..(CND,USA)199708

14X5.5J,TYPE A:REFER TO ILLUSTRATION

main42611-02090×4iZZE110199708

14X5.5J,TYPE B:REFER TO ILLUSTRATION

main42611-02100×4iZZE110199708

14X5.5J,TYPE C:REFER TO ILLUSTRATION

main42611-02140×4iZZE110199708

14X5.5JJ,TYPE D:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-01140iZZE110..(CE2,VE)..CND199708

14X5.5J,TYPE A:REFER TO ILLUSTRATION

main42611-02090iZZE110..CND199708

14X5.5J,TYPE B:REFER TO ILLUSTRATION

main42611-02100iZZE110..CND199708

14X5.5J,TYPE C:REFER TO ILLUSTRATION

main42611-02140iZZE110..CND199708

14X5.5JJ,TYPE D:REFER TO ILLUSTRATION

main42611-02150iZZE110199708

14X4T,TYPE E:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90080-17035×16iZZE110..CND,USA;ZZE110..CE1..TAIW199708-199809

TYPE C:REFER TO ILLUSTRATION

main90942-01021×16iZZE110..CE2,LE1,S,VE;ZZE110..CE1..(CND,USA)199708

TYPE A:REFER TO ILLUSTRATION

main90942-01083×16iZZE110199708

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4iZZE110199708

TYPE A:REFER TO ILLUSTRATION

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001iZZE110199708

TYPE A:REFER TO ILLUSTRATION

main90080-45006iZZE110199708

TYPE B:REFER TO ILLUSTRATION

42652TIRE

main42652-02190×4iZZE110..(CE1,VE)..(CND,USA)199708-200005

175/65R14

main42652-02200×4iZZE110..CND,USA199708-200005

185/65R14

42652ATIRE (FOR SPARE)

main42652-02190iZZE110..(CE1,VE)..CND199708-200005

175/65R14

main42652-02200iZZE110..CND199708-200005

185/65R14

main42652-02230iZZE110199708-200005

125/70D14

7 parts on this diagram · 3 diagrams in section
