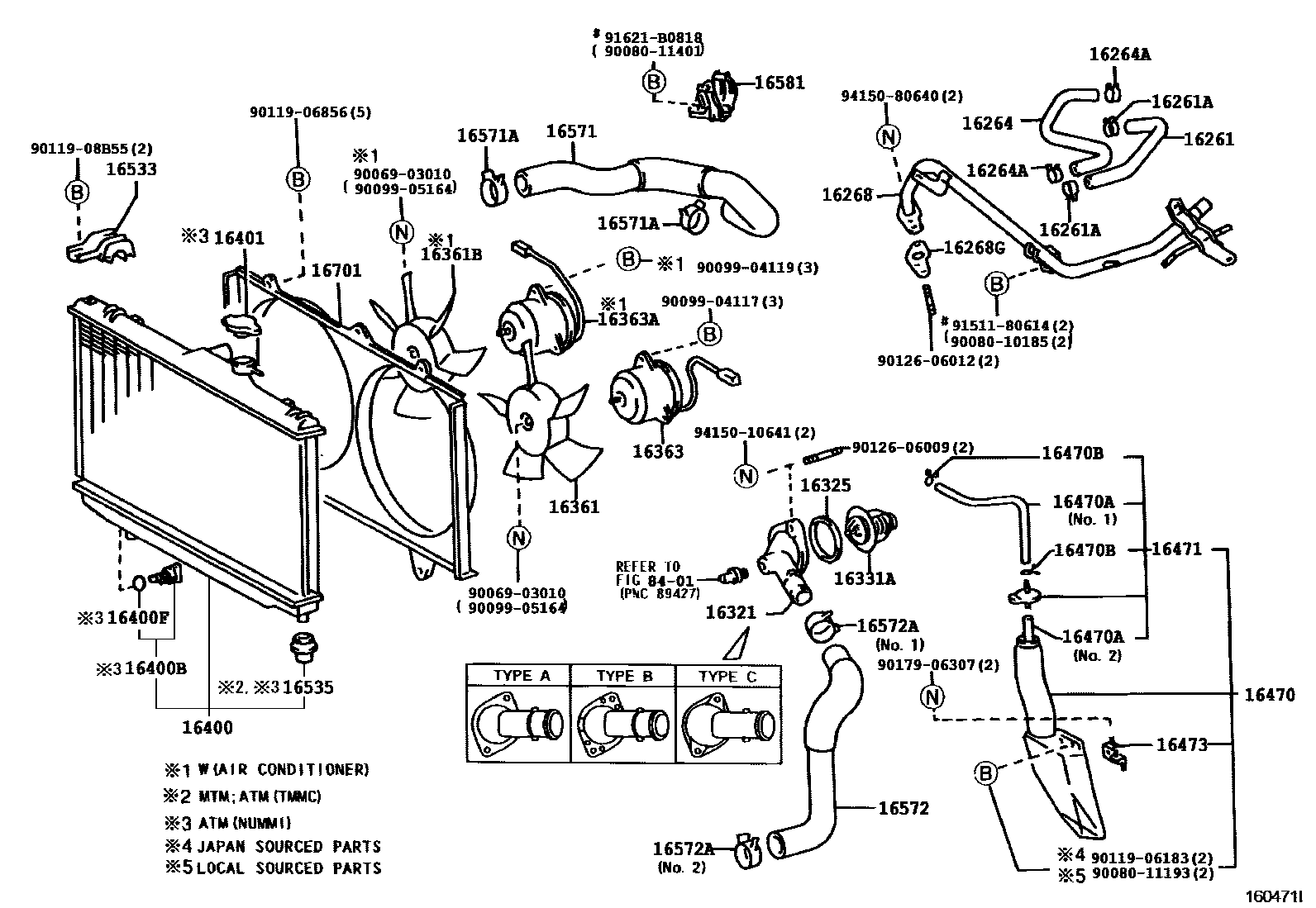

RADIATOR & WATER OUTLET
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16264HOSE, WATER BY-PASS, NO.2
(L)
(J)
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16268PIPE, WATER BY-PASS, NO.1
(L)
16268GGASKET(FOR WATER BY-PASS PIPE)
(L)
(J)
16321INLET, WATER
(L)
TYPE A:REFER TO ILLUSTRATION
(J)
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
*WAX 76-90
*WAX 82-95
16361FAN
16361BFAN, NO.2
16363AMOTOR, COOLING FAN, NO.2
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.2
NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16473SUPPORT(FOR RADIATOR RESERVE TANK)
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
NUMMI
TMMC
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.1
16581CLAMP, HOSE(FOR WATER HOSE)
16701SHROUD SUB-ASSY, FAN
8401
9006903010
main90069-03010
9008010185
main90080-10185
9008011193
main90080-11193
9008011401
main90080-11401
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
9011906183
main90119-06183
9011906856
main90119-06856
9011908B55
main90119-08B55
9012606009
main90126-06009
9012606012
main90126-06012
9017906307
main90179-06307
9151180614
main91511-80614
91621B0818
main91621-B0818
9415010641
main94150-10641
9415080640
main94150-80640
48 parts on this diagram · 3 diagrams in section
