Toyota COROLLA NAP/SED155 — REAR COMBINATION LAMP

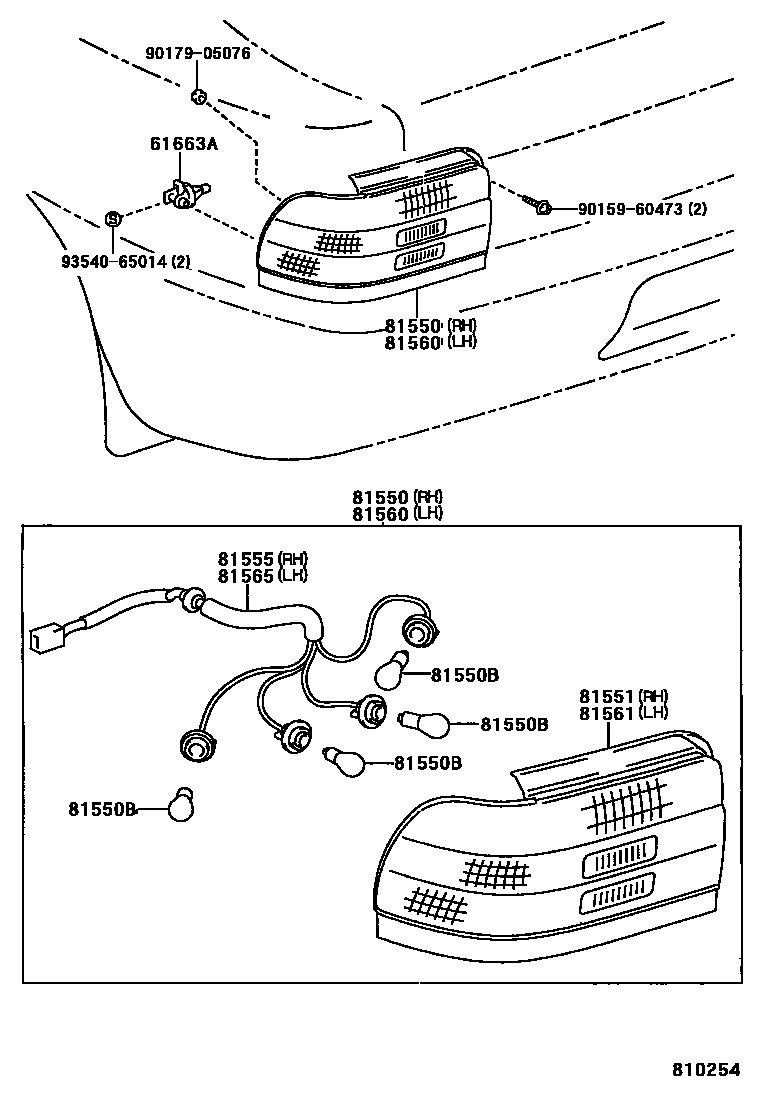

Parts diagram

61663ABRACKET, REAR COMBINATION LAMP MOUNTING

81550LAMP ASSY, REAR COMBINATION, RH

81550BBULB(FOR REAR COMBINATION LAMP)

81551LENS, REAR COMBINATION LAMP, RH

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560LAMP ASSY, REAR COMBINATION, LH

81561LENS, REAR COMBINATION LAMP, LH

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

9015960473

9017905076

9354065014

11 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota COROLLA NAP/SED155

This section contains 11 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota COROLLA NAP/SED155. Key components include: BRACKET, REAR COMBINATION LAMP MOUNTING, LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
