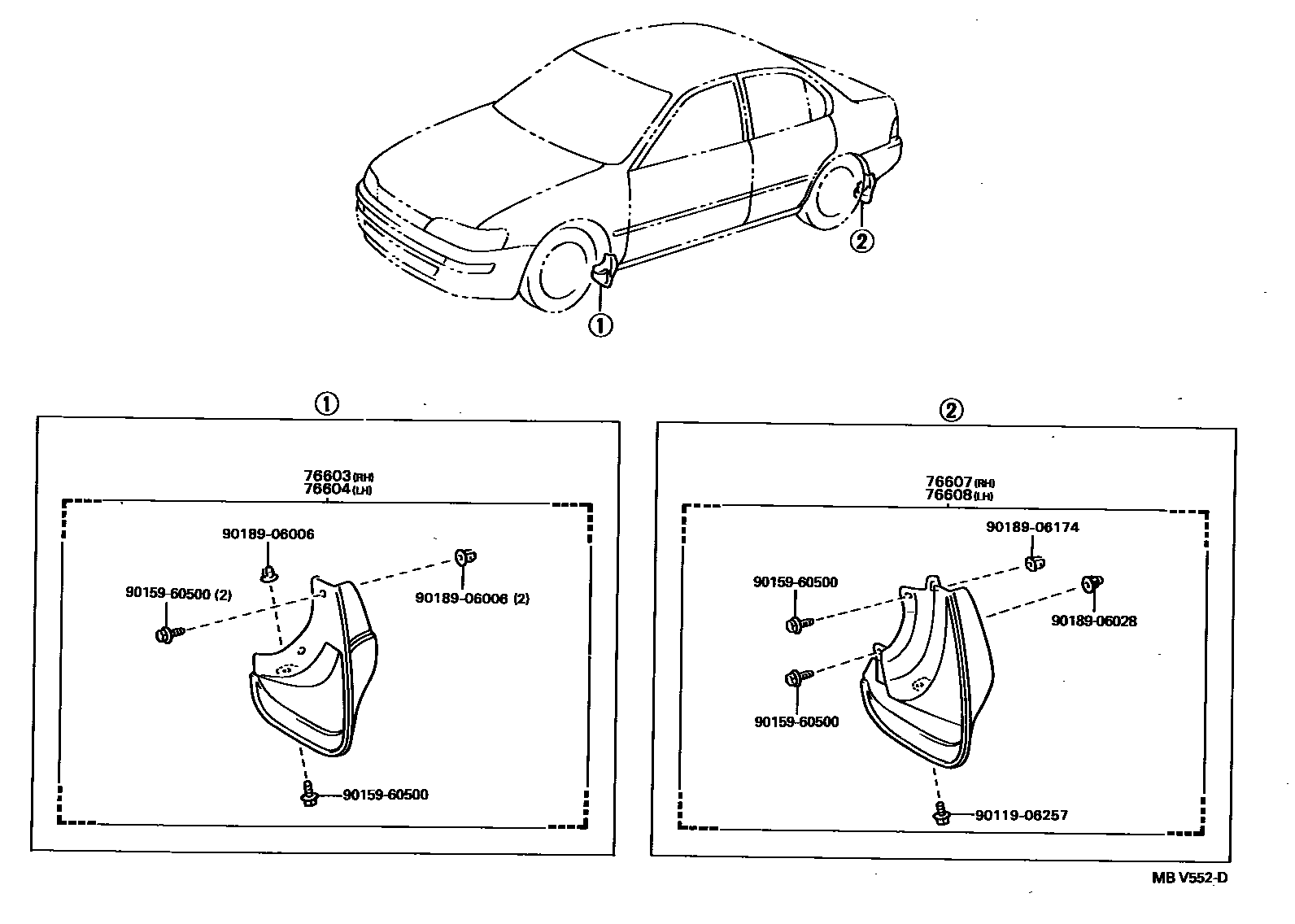

MUDGUARD & SPOILER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
SUPER WHITE 2,040,(L)
BLACK ME,205,(L)
SUPER RED 2,3E5,(L)
RED MICA ME,3K4
LT BEIGE ME,3K9,(L)
LT.BEIGE METALLIC,4M9
LT GREEN ME,6M8
MD GRAISHGREEN MC.GR,6N1
DARK GREEN MICA,6M1
GREEN M.M.,6P5,(L)
LT PURPLISH BLUE M.M,8K1,(L)
DARK BLUE MICA,8K8
GRAYISH PURPLE ME,923,(L)
LAVENDER ME.,932,(L)
(J)
SUPER WHITE 2,040,(J)
SILVER MICA M,192
BLACK ME,205,(J)
SUPER RED 2,3E5,(J)
RED MICA M,3K4
ROSE GRAPHITE MI ME,3K5
LT BEIGE ME,3K9,(J)
LT.BEIGE ME.,4M9
LIGHT GREEN ME.,6M8
MD.GRAISHGREEN MC.GR,6N1
DK.GREEN ME,6M1
GREEN M.M.,6P5,(J)
DEEP TURQUOISE,747
LIGHT BLUE M M,8J6
DARK BLUE MICA M,8J7
LT PURPLISH BLUE M.M,8K1,(J)
DK.BLUE MC.,8K8
GRAYISH PURPLE ME,923,(J)
LAVENDER ME.,932,(J)
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
(L)
SUPER WHITE 2,040,(L)
BLACK ME,205,(L)
SUPER RED 2,3E5,(L)
RED MICA ME,3K4
LT BEIGE ME,3K9,(L)
LT.BEIGE METALLIC,4M9
LT GREEN ME,6M8
MD GRAISHGREEN MC.GR,6N1
DARK GREEN MICA,6M1
GREEN M.M.,6P5,(L)
LT PURPLISH BLUE M.M,8K1,(L)
DARK BLUE MICA,8K8
GRAYISH PURPLE ME,923,(L)
LAVENDER ME.,932,(L)
SUPER WHITE 2,040,(J)
SILVER MICA M,192
BLACK ME,205,(J)
SUPER RED 2,3E5,(J)
RED MICA M,3K4
ROSE GRAPHITE MI ME,3K5
LT BEIGE ME,3K9
LT.BEIGE ME.,4M9
LIGHT GREEN ME.,6M8
MD.GRAISHGREEN MC.GR,6N1
DK.GREEN ME,6M1
GREEN M.M.,6P5,(J)
DEEP TURQUOISE,747
LIGHT BLUE M M,8J6
DARK BLUE MICA M,8J7
LT PURPLISH BLUE M.M,8K1,(J)
DK.BLUE MC.,8K8
GRAYISH PURPLE ME,923,(J)
LAVENDER ME.,932,(J)
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
(L)
SUPER WHITE 2,040,(L)
BLACK ME,205,(L)
SUPER RED 2,3E5,(L)
RED MICA ME,3K4
LT BEIGE ME,3K9,(L)
LT.BEIGE METALLIC,4M9
LT GREEN ME,6M8
MD GRAISHGREEN MC.GR,6N1
DARK GREEN MICA,6M1
GREEN M.M.,6P5,(L)
LT PURPLISH BLUE M.M,8K1,(L)
DARK BLUE MICA,8K8
GRAYISH PURPLE ME,923,(L)
LAVENDER ME.,932,(L)
(J)
SUPER WHITE 2,040
SILVER MICA M,192
BLACK ME,205,(J)
SUPER RED 2,3E5,(J)
RED MICA M,3K4
ROSE GRAPHITE MI ME,3K5
LT BEIGE ME,3K9
LT.BEIGE ME,4M9
DARK GREEN MC.,6M1
MD.GRAISHGREEN MC.GR,6N1
LIGHT GREEN MICA,6M8
GREEN M.M.,6P5,(J)
DEEP TURQUOISE,747
LIGHT BLUE M M,8J6
DARK BLUE MICA M,8J7
LT PURPLISH BLUE M.M,8K1,(J)
DARK BLUE MC.,8K8
GRAYISH PURPLE ME,923,(J)
LAVENDER ME.,932,(J)
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
(L)
SUPER WHITE 2,040,(L)
BLACK ME,205,(L)
SUPER RED 2,3E5
RED MICA ME,3K4
LT BEIGE ME,3K9,(L)
LT.BEIGE METALLIC,4M9
LT GREEN ME,6M8
MD GRAISHGREEN MC.GR,6N1
DARK GREEN MICA,6M1
GREEN M.M.,6P5,(L)
LT PURPLISH BLUE M.M,8K1,(L)
DARK BLUE MICA,8K8
GRAYISH PURPLE ME,923,(L)
LAVENDER ME.,932,(L)
SUPER WHITE 2,040,(J)
SILVER MICA M,192
BLACK ME,205,(J)
SUPER LED 2,3E5
RED MICA M,3K4
ROSE GRAPHITE MI ME,3K5
LT BEIGE ME,3K9,(J)
LT.BEIGE ME,4M9
LIGHT GREEN ME.,6M8
MD.GRAISHGREEN MC.GR,6N1
DARK GREEN MC.,6M1
GREEN M.M.,6P5,(J)
DEEP TURQUOISE,747
LIGHT BLUE M M,8J6
DARK BLUE MICA M,8J7
LT PURPLISH BLUE M.M,8K1,(J)
DARK BLUE MC.,8K8
GRAYISH PURPLE ME,923,(J)
LAVENDER ME.,932,(J)
9011906257
main90119-06257
9015960500
main90159-60500
9018906006
main90189-06006
9018906028
main90189-06028
9018906174
main90189-06174
9 parts on this diagram · 1 diagram in section
