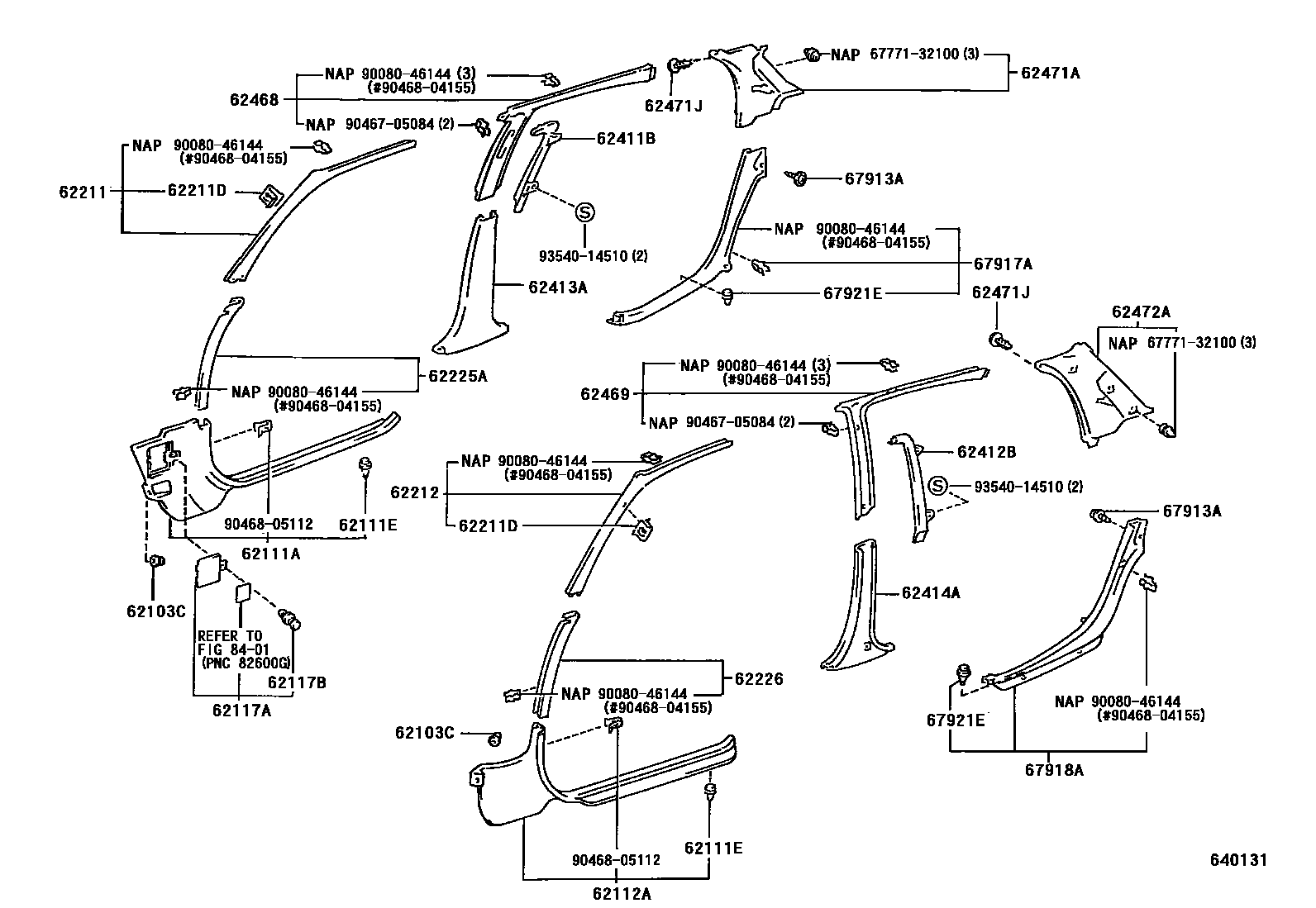

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050×2iAE10#..NAP199209

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-02010-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62101-02010-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62101-02010-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62101-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62111ERETAINER, COWL SIDE TRIM

main67921-06010×6iAE10#..NAP199209

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-02010-B0iAE10#..NAP199209-199508

SHADOW GRAY,TRIM1#

main62102-02010-J0iAE10#..NAP199209-199508

DARK BLUE,TRIM8#

main62102-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

main62102-02020-B0iAE10#..NAP199508

SHADOW GRAY,TRIM1#

main62102-02020-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62102-02020-J0iAE10#..NAP199508

DARK BLUE,TRIM8#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-02010-B0iAE10#..NAP199209-199508

SHADOW GRAY,TRIM1#

main62117-02010-J0iAE10#..NAP199209-199508

DARK BLUE,TRIM8#

main62117-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

main62117-02020-B0iAE10#..NAP199508

SHADOW GRAY,TRIM1#

main62117-02020-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62117-02020-J0iAE10#..NAP199508

DARK BLUE,TRIM8#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90080-46145iAE10#..NAP199209

62211GARNISH, FRONT PILLAR, RH

main62211-02030-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62211-02030-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62211-02030-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62211-02030-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90468-05084×4iAE10#..NAP199209

62212GARNISH, FRONT PILLAR, LH

main62212-02030-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62212-02030-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62212-02030-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62212-02030-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-02010-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62225-02010-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62225-02010-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62225-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-02010-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62226-02010-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62226-02010-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62226-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-02020-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62411-02020-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62411-02020-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62411-02020-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-02020-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62412-02020-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62412-02020-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62412-02020-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02010-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62413-02010-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62413-02010-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62413-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02010-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62414-02010-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62414-02010-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62414-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62468GARNISH, CENTER PILLAR, REAR RH

main62468-02010-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62468-02010-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62468-02010-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62468-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62469GARNISH, CENTER PILLAR, REAR LH

main62469-02010-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main62469-02010-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main62469-02010-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main62469-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-02040-B0iAE10#..NAP199210

SHADOW GRAY,TRIM1#,*85

main62471-02040-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#,*85

main62471-02040-J0iAE10#..NAP199209-199210

DARK BLUE,TRIM8#

main62471-02040-K0iAE10#..NAP199210-199508

TAUPE,TRIM9#,*85

main62471-02050-B0iAE10#..NAP199210

SHADOW GRAY,TRIM1#,*84

main62471-02050-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#,*84

main62471-02050-J0iAE10#..NAP199210

DARK BLUE,TRIM8#,*84

main62471-02050-K0iAE10#..NAP199210-199508

TAUPE,TRIM9#,*84

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-06055-B0×2iAE10#..NAP199210

SHADOW GRAY,TRIM1#

main90467-06055-E0×2iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main90467-06055-J1×2iAE10#..NAP199210

DARK BLUE,TRIM8#

main90467-06055-K0×2iAE10#..NAP199210-199508

TAUPE,TRIM9#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-02040-B0iAE10#..NAP199210

SHADOW GRAY,TRIM1#,*85

main62472-02040-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#,*85

main62472-02040-J0iAE10#..NAP199210

DARK BLUE,TRIM8#,*85

main62472-02040-K0iAE10#..NAP199210-199508

TAUPE,TRIM9#,*85

main62472-02050-B0iAE10#..NAP199210

SHADOW GRAY,TRIM1#,*84

main62472-02050-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#,*84

main62472-02050-J0iAE10#..NAP199210

DARK BLUE,TRIM8#,*84

main62472-02050-K0iAE10#..NAP199210-199508

TAUPE,TRIM9#,*84

67913ACLIP(FOR SCUFF PLATE)

main90467-06049-22×8iAE10#..NAP..(D,E); AE10#..NAP..N; AE101..NAP..D199508

BLACK,TRIM1#,4#,8#; BLACK,TRIM1#,8#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02010-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main67917-02010-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main67917-02010-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main67917-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02010-B0iAE10#..NAP199209

SHADOW GRAY,TRIM1#

main67918-02010-E0iAE10#..NAP..(D,N)199508

OAK,TRIM4#

main67918-02010-J0iAE10#..NAP199209

DARK BLUE,TRIM8#

main67918-02010-K0iAE10#..NAP199209-199508

TAUPE,TRIM9#

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-06010×4iAE10#..NAP199209

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6777132100WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32100

9008046144

main90080-46144

9046705084

main90467-05084

9046804155

main90468-04155

9046805112

main90468-05112

9354014510

main93540-14510

31 parts on this diagram · 1 diagram in section
