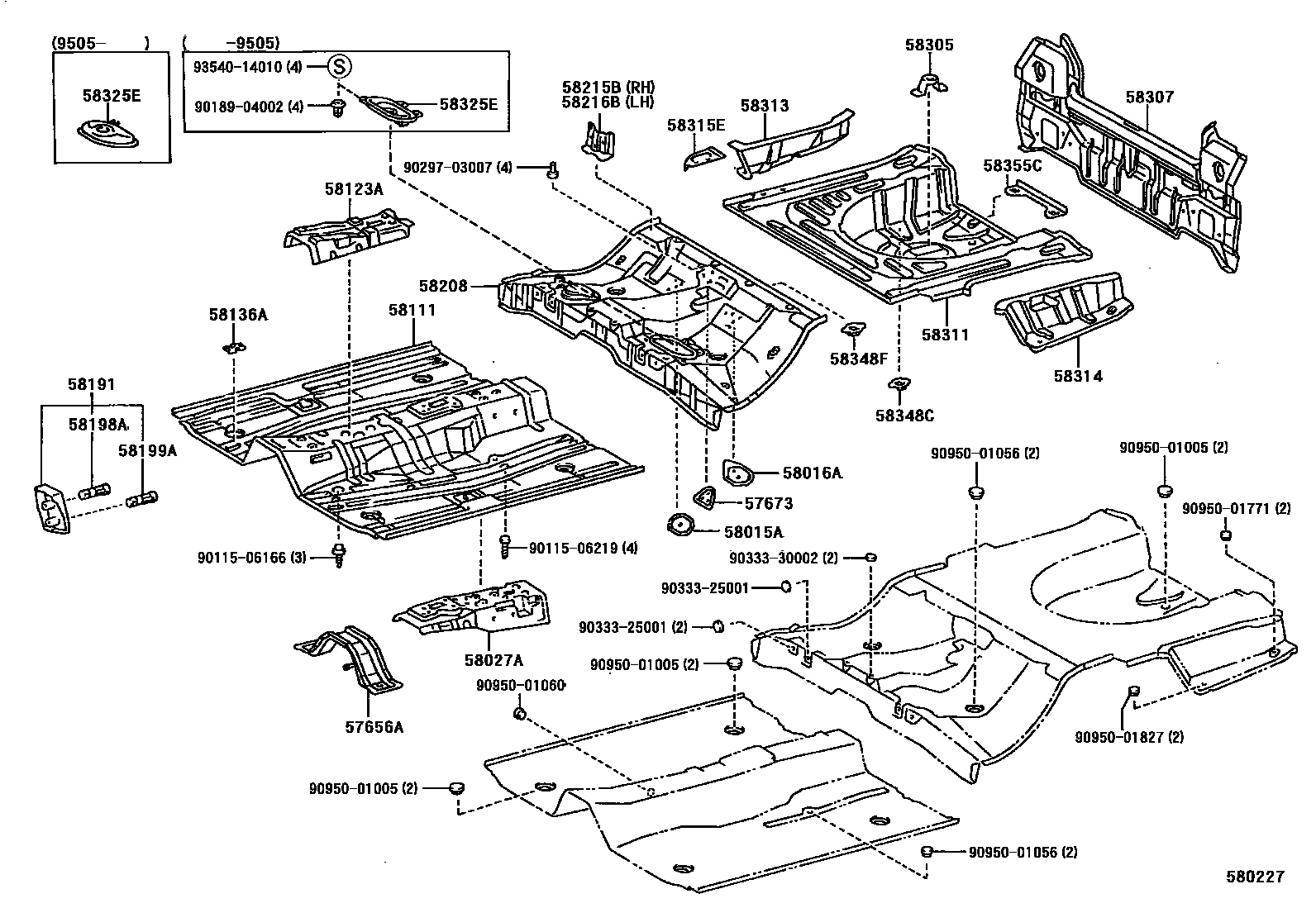

FLOOR PAN & LOWER BACK PANEL

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-12060iAE10#..NAP199209

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12070iAE101..NAP..CND;AE10#..NAP..(E,N)199209-199508

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12040iAE10#..NAP199209

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12010iAE10#..NAP199209

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12150iAE10#..NAP199209-199211

main58027-12151iAE10#..NAP199211-199505

main58027-12152iAE10#..NAP199505-199508

main58027-12153iAE10#..NAP199508

58111PAN, FRONT FLOOR

main58111-02020iAE10#..NAP199209-199408

main58111-02021iAE10#..NAP199408-199508

main58111-02022iAE10#..NAP199508

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-02010iAE10#..NAP199504-199505

(L)

main58013-02011iAE10#..NAP199505-199508

(L)

main58013-02020iAE10#..NAP199508

main58013-12020iAE10#..NAP199209-199505

(J)

main58013-12060iAE10#..NAP199505

(J)

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020×2iAE10#..NAP199209-199302

main58136-12030×2iAE10#..NAP199302

58191FOOTREST, FRONT FLOOR

main58192-02010iAE10#..NAP199209

58198ACLIP, FOOTREST, NO.1

main58198-02010iAE10#..NAP199209

58199ACLIP, FOOTREST, NO.2

main58198-02010iAE10#..NAP199209-199708

58208PAN, CENTER FLOOR

main58211-02030iAE101..NAP..CND199308-199508

STD PACKAGE

main58211-02040iAE101..NAP..CND;AE10#..NAP..(E,N)199209-199508

58215BBRACKET, REAR SEAT MOUNTING, RH

main58203-12060iAE102..NAP..N;AE101..NAP..N..CND199508

W(CHILD RESTRAINT SYSTEM)

main58215-12040iAE10#..NAP199209-199505

main58215-12041iAE10#..NAP199505

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-12040iAE10#..NAP199209

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE10#..NAP199209-199501

main58351-12040iAE10#..NAP199501

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02050iAE10#..NAP199209

58311PAN, REAR FLOOR

main58311-02030iAE10#..NAP199209

58313PANEL, REAR FLOOR SIDE, RH

main58313-12900iAE10#..NAP199209

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iAE10#..NAP199209

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-02020iAE10#..NAP199209

(L)

main58315-12070iAE10#..NAP199209

(J)

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02010iAE10#..NAP199209

58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-12020iAE10#..NAP199209

58348FBRACKET, CENTER FLOOR HEAR INSULATOR, NO.3

main58348-12020×2iAE10#..NAP199209

58355CBRACKET, REAR BUMPER ARM

main58355-12040iAE10#..NAP199209

9011506166

main90115-06166

9011506219

main90115-06219

9018904002

main90189-04002

9029703007

main90297-03007

9033325001

main90333-25001

9033330002

main90333-30002

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001771

main90950-01771

9095001827

main90950-01827

9354014010

main93540-14010

36 parts on this diagram · 1 diagram in section
