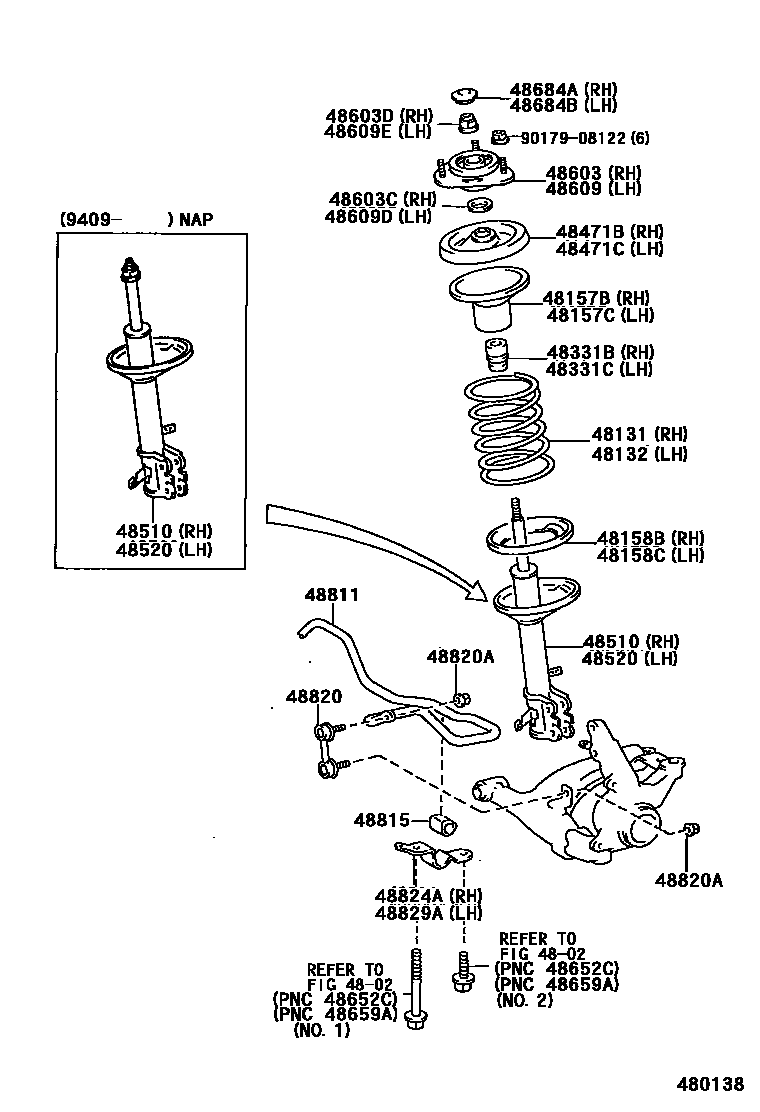

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-01230iAE101..NAP..5F199209-199409

*84

main48131-01240iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

W(AIR CONDITIONER),*84

main48131-01240iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

*84

main48131-02160iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

W(AIR CONDITIONER),*84

main48131-02160iAE102..NAP..5F..E;AE102..NAP..4FC..N199209-199409

*84

main48131-02170iAE102..NAP..5F..E;AE102..NAP..4FC..N199209-199409

*85

main48131-02170iAE102..NAP..5F..E;AE102..NAP..4FC..N199209-199409

W(AIR CONDITIONER),*85

main48131-02180iAE102..NAP..4FC..E199209-199409

*84

main48131-02180iAE102..NAP..4FC..E199209-199409

W(AIR CONDITIONER),*84

main48131-02190iAE102..NAP..4FC..E199209-199409

*85

main48131-02190iAE102..NAP..4FC..E199209-199409

W(AIR CONDITIONER),*85

main48131-02320iAE101..NAP..5F199209-199409

*85

main48131-02330iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

*85

main48131-02330iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

W(AIR CONDITIONER),*85

main48131-02340iAE101..NAP..3FC;AE102..NAP..5F..N199409-199508

*84

main48131-02340iAE101..NAP..3FC;AE102..NAP..5F..N199409-199508

W(AIR CONDITIONER),*84

main48131-02350iAE101..NAP..3FC;AE102..NAP..5F..N199409-199508

*85

main48131-02350iAE101..NAP..3FC;AE102..NAP..5F..N199409-199508

W(AIR CONDITIONER),*85

main48131-02360iAE102..NAP..5F..E;AE102..NAP..4FC..N199409-199508

*84

main48131-02360iAE101..NAP..3FC;AE102..NAP..5F..N199409-199508

W(AIR CONDITIONER),*84

main48131-02370iAE102..NAP..5F..E;AE102..NAP..4FC..N199409-199508

*85

main48131-02370iAE102..NAP..5F..E;AE102..NAP..4FC..N199409-199508

W(AIR CONDITIONER),*85

main48131-02380iAE102..NAP..4FC..N199409

W(AIR CONDITIONER),*84

main48131-02380iAE102..NAP..4FC..N199409

*84

main48131-02440iAE101..NAP..5F199409-199508

48132SPRING, FRONT COIL, LH

main48131-01240iAE101..NAP..5F199209-199409

*84

main48131-02160iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

*84

main48131-02160iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

W(AIR CONDITIONER),*84

main48131-02170iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

W(AIR CONDITIONER),*85

main48131-02170iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

*85

main48131-02180iAE101..NAP..3FC;AE102..NAP..5F..N199209-199409

W(AIR CONDITIONER),*84

main48131-02180iAE102..NAP..5F..E;AE102..NAP..4FC..N199209-199409

*84

main48131-02190iAE102..NAP..5F..E;AE102..NAP..4FC..N199209-199409

*85

main48131-02190iAE102..NAP..5F..E;AE102..NAP..4FC..N199209-199409

W(AIR CONDITIONER),*85

main48131-02200iAE102..NAP..4FC..E199209-199409

*84

main48131-02200iAE102..NAP..4FC..E199209-199409

W(AIR CONDITIONER),*84

main48131-02210iAE102..NAP..4FC..E199209-199409

*85

main48131-02210iAE102..NAP..4FC..E199209-199409

W(AIR CONDITIONER),*85

main48131-02330iAE101..NAP..5F199209-199409

*85

main48131-02340iAE101..NAP..5F..D;AE101..NAP..5F..N..CND199409-199508

*84

main48131-02350iAE101..NAP..5F199409-199508

*85

main48131-02360iAE101..NAP..3FC;AE102..NAP..5F..N199409-199508

W(AIR CONDITIONER),*84

main48131-02360iAE101..NAP..5F199409-199508

*84

main48131-02370iAE101..NAP..3FC;AE102..NAP..5F..N199409-199508

W(AIR CONDITIONER),*85

main48131-02370iAE101..NAP..5F199409-199508

*85

main48131-02380iAE102..NAP..5F..E;AE102..NAP..4FC..N;AE101..NAP..3FC..N..USA199409-199508

W(AIR CONDITIONER),*84

main48131-02380iAE102..NAP..5F..E;AE102..NAP..4FC..N;AE101..NAP..3FC..N..USA199409-199508

*84

main48131-02390iAE102..NAP..5F..E;AE102..NAP..4FC..N199409-199508

*85

main48131-02390iAE102..NAP..5F..E;AE102..NAP..4FC..N199409-199508

W(AIR CONDITIONER),*85

main48131-02400iAE102..NAP..4FC..N199409

W(AIR CONDITIONER),*84

main48131-02400iAE102..NAP..4FC..N199409

*84

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02010iAE10#..NAP199209

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02010iAE10#..NAP199209

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02011iAE10#..NAP199209

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02011iAE10#..NAP199209

48331BBUMPER, FRONT SPRING, RH

main48331-01030iAE10#..NAP199209

48331CBUMPER, FRONT SPRING, LH

main48331-01030iAE10#..NAP199209

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-01020iAE10#..NAP199209

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-01020iAE10#..NAP199209

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-02030iAE10#..NAP199209-199409

main48510-09140iAE10#..NAP199409

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-02030iAE10#..NAP199209-199409

main48520-09110iAE10#..NAP199409

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02040iAE10#..NAP199209

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE10#..NAP199209

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAE10#..NAP199209

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02040iAE10#..NAP199209

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE10#..NAP199209

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAE10#..NAP199209

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-01010iAE10#..NAP199209

sub48684-52010

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-01010iAE10#..NAP199209

sub48684-52010

48811BAR, STABILIZER, FRONT

main48811-02020iAE102..NAP199209

*86

main48811-12720iAE102..NAP199209

*86 & *87

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-02020iAE102..NAP199209

48820LINK ASSY, FRONT STABILIZER

main48820-33010iAE102..NAP199209

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAE102..NAP199209

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-02020iAE102..NAP199209

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-02010iAE102..NAP199209

9017908122

main90179-08122

28 parts on this diagram · 2 diagrams in section
