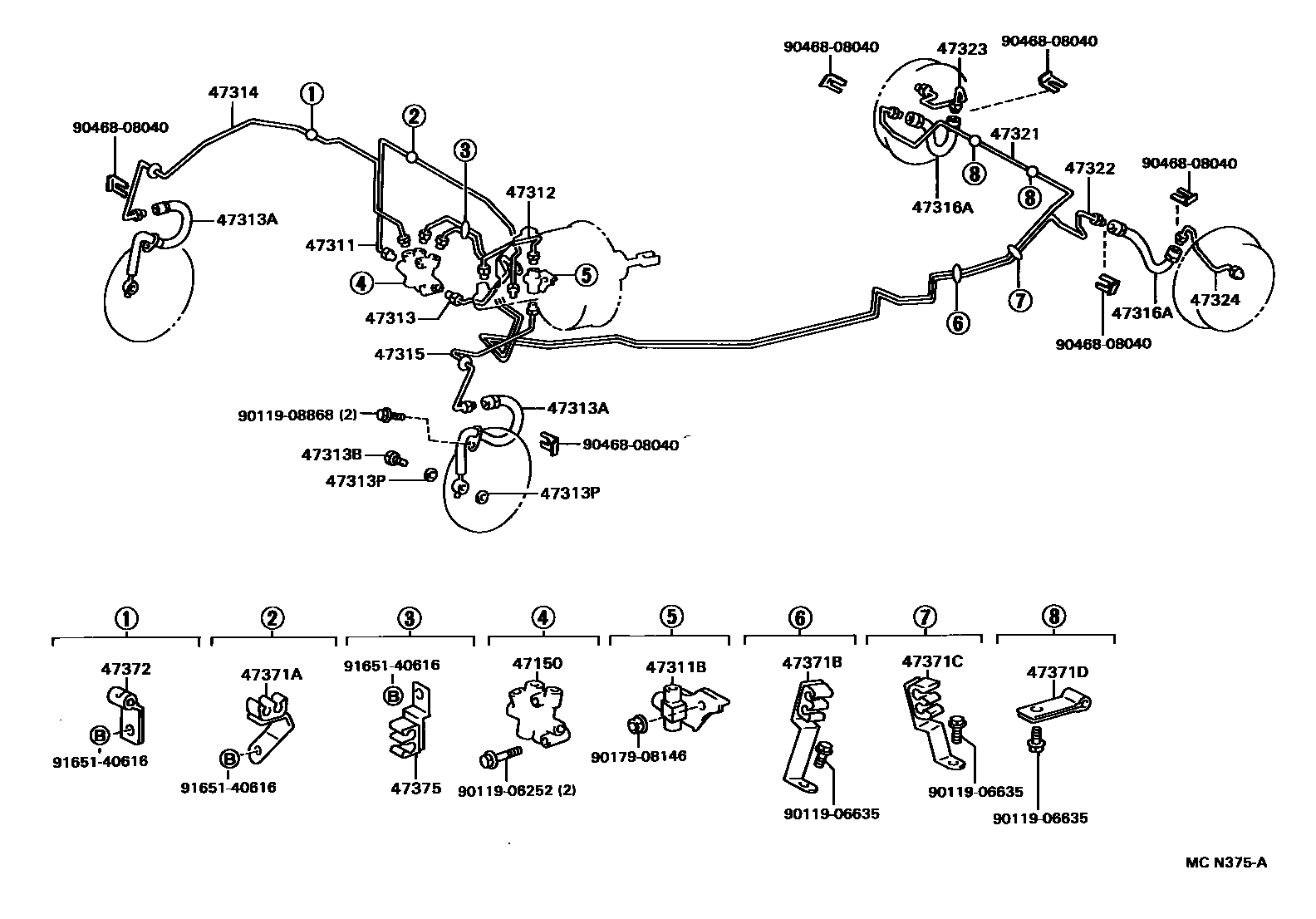

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
(L)
W(ABS)
(J)
(J)
47311TUBE, FRONT BRAKE, NO.1
*84
*85
W(*66),*84
W(*66),*85
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
W(ABS)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
*84
*85
W(*66),*84
W(*66),*84
W(*66),*85
W(*66),*85
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
RH
LH
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
*84
*85
W(*66),*84
W(*66),*85
47315TUBE, FRONT BRAKE, NO.5
*84
*85
W(*66),*84
W(*66),*85
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47371ACLAMP, BRAKE TUBE, NO.1
W(ABS)
W(ABS)
47371DCLAMP, BRAKE TUBE, NO.8
47372CLAMP, BRAKE TUBE, NO.2
W(ABS)
W(ABS)
47375CLAMP, BRAKE TUBE, NO.5
9011906252
main90119-06252
9011906635
main90119-06635
9011908868
main90119-08868
9017908146
main90179-08146
9046808040
main90468-08040
9165140616
main91651-40616
28 parts on this diagram · 4 diagrams in section
