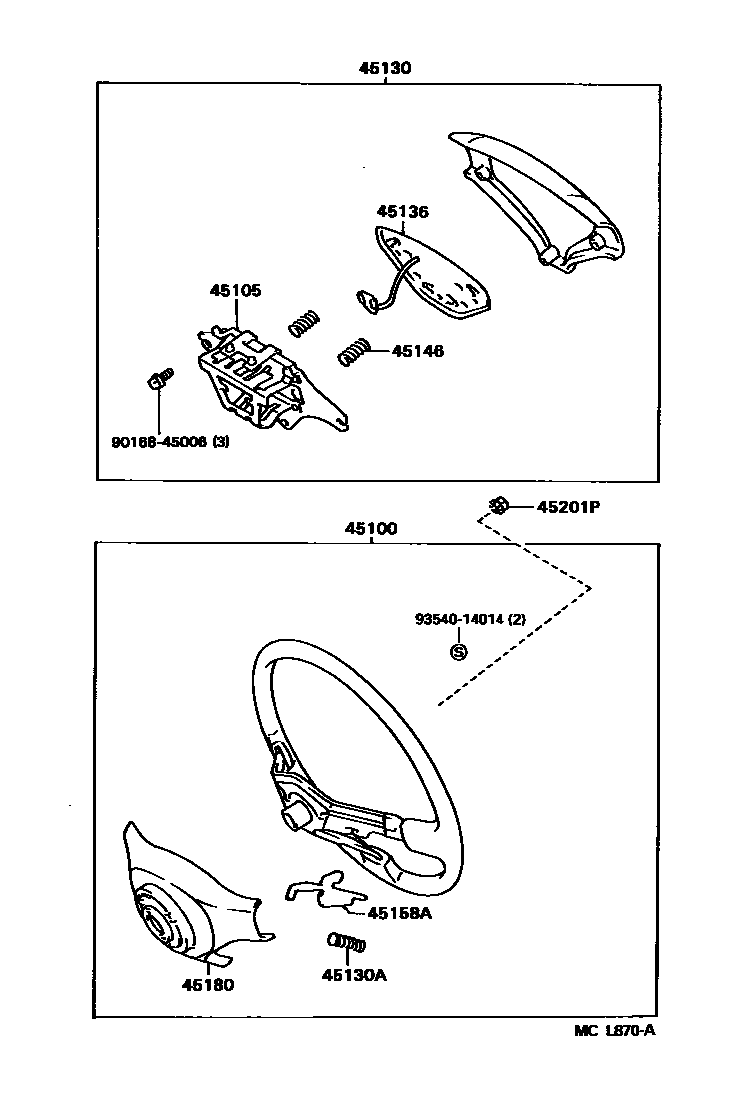

Toyota COROLLA NAP/SED155 — STEERING WHEEL
45100WHEEL ASSY, STEERING
45130BUTTON ASSY, HORN
45130ASPRING, COMPRESSION(FOR HORN BUTTON)
45136PLATE, HORN BUTTON CONTACT
45146SPRING, HORN BUTTON CONTACT
45158ASOCKET, HORN BUTTON JOINT
45201PNUT, STEERING WHEEL SET
9016845006
9354014014
11 parts on this diagram · 2 diagrams in section
STEERING WHEEL for Toyota COROLLA NAP/SED155
This section contains 14 genuine Toyota parts for the STEERING WHEEL system of the Toyota COROLLA NAP/SED155. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, BUTTON ASSY, HORN, SPRING, COMPRESSION(FOR HORN BUTTON), PLATE, HORN BUTTON CONTACT.
