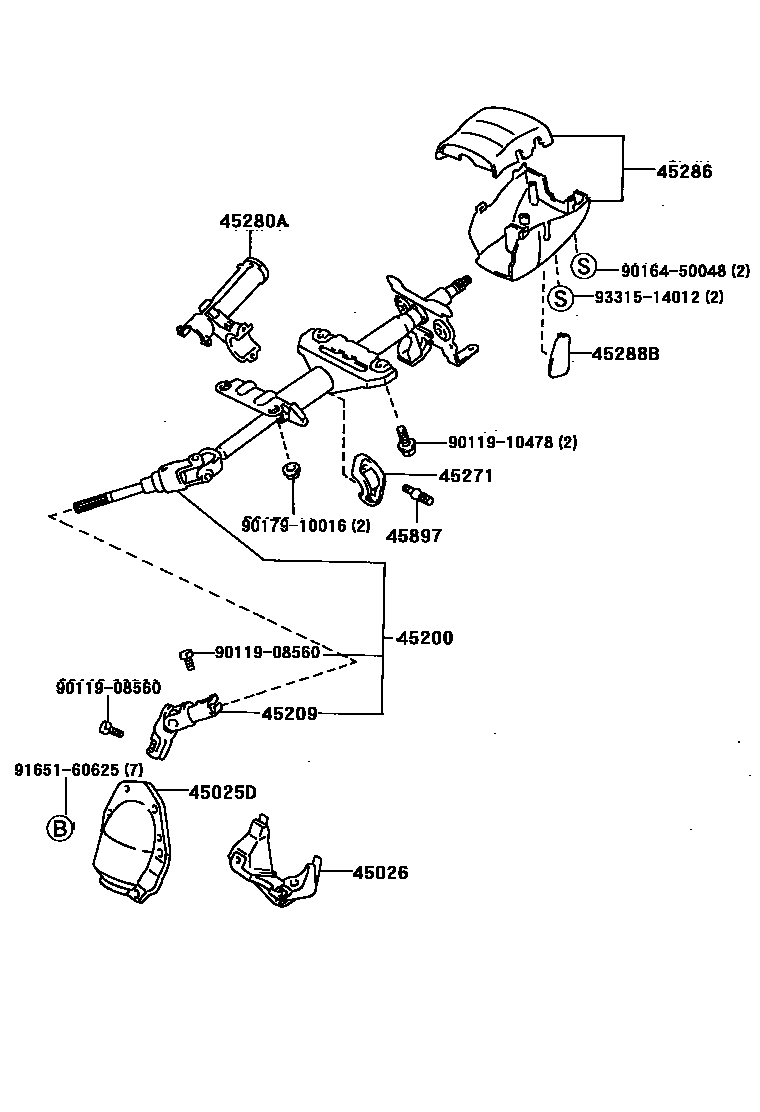

STEERING COLUMN & SHAFT

0001 1NASTEC 0003 1W(TILT STEERING)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12190iAE101..NAP..D199209

main45025-12200iAE10#..NAP..(E,N); AE101..NAP..D199209-199611

W(POWER STEERING)

main45025-12201iAE10#..NAP199611

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-02010iAE10#..NAP..(E,N); AE101..NAP..D199408

PLASTIKON; W(POWER STEERING),PLASTIKON

main45026-12030iAE101..NAP..D199209

main45026-12040iAE10#..NAP..(E,N); AE101..NAP..D199408

INOAKKU; W(POWER STEERING),INOAKKU

45200POST ASSY, STEERING

main45200-02011iAE101..NAP..D199209

main45200-02021iAE102..NAP..N..USA199209-199508

main45200-02031iAE101..NAP..CND199209-199508

W(TILT STEERING)

main45200-02041iAE101..NAP..D..USA; AE101..NAP..N;AE102..NAP..5F..E; AE102..NAP..4FC..E199209-199508

TAIWAN SPEC; TAIWAN SPEC & W(POWER STEERING); W/O(*80);W(TILT STEERING)

main45200-02050iAE101..NAP..CND; AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND; AE102..NAP..N..USA199209-199508

W(TILT STEERING & POWER STEERING); W(TILT STEERING)

main45200-02060iAE102..NAP..E;AE102..NAP..CND;AE101..NAP..N..USA199403

W/O(*80)

main45200-02070iAE101..NAP..D..USA199508

TAIWAN SPEC & W(POWER STEERING)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12060iAE101..NAP..D199209-199708

main45209-12080iAE10#..NAP..(E,N); AE101..NAP..D199209-199708

W(POWER STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-33010iAE10#..NAP199209-199708

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12260iAE10#..NAP199209-199708

main45280-12300iAE10#..NAP..N..USA; AE101..NAP..D199209-199708

W/O(TILT STEERING)

45286COVER, STEERING COLUMN

main45286-02903-B0iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199510

SHADOW GRAY,TRIM1#

main45286-02903-E2iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199510

OAK,TRIM4#,TEND

main45286-02903-J0iAE101..NAP..D..USA;AE102..NAP..N..USA199209-199309

DARK BLUE,TRIM8#,TEND

main45286-02903-K0iAE101..NAP..D;AE102..NAP..N..USA199209-199508

TAUPE,TRIM9#,TEND

main45286-02904-B0iAE101..NAP..CND;AE102..NAP..N..USA; AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND199209-199508

SHADOW GRAY,TRIM1#,TEND; W(TILT STEERING),SHADOW GRAY,TRIM1#,TEND

main45286-02904-E2iAE101..NAP..N..USA; AE102..NAP..N;AE101..NAP..CND199510

OAK,TRIM4#,PMP; W(TILT STEERING),OAK,TRIM4#,PMP

main45286-02904-J0iAE101..NAP..CND;AE102..NAP..N..USA; AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND199209-199508

DARK BLUE,TRIM8#,TEND; W(TILT STEERING),DARK BLUE,TRIM8#,TEND

main45286-02904-K0iAE101..NAP..CND;AE102..NAP..N..USA; AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND199209-199508

TAUPE,TRIM9#,TEND; W(TILT STEERING),TAUPE,TRIM9#,TEND

main45286-02905-B0iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199510

SHADOW GRAY,TRIM1#,PMP

main45286-02905-E2iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199510

OAK,TRIM4#,PMP

main45286-02905-J0iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199510

DARK BLUE,TRIM8#,PMP

main45286-02905-K0iAE101..NAP..D;AE102..NAP..N..USA199209-199508

TAUPE,TRIM9#,PMP

main45286-02906-B0iAE102..NAP..E;AE101..NAP..N..USA; AE102..NAP..N;AE101..NAP..N..CND199508-199510

SHADOW GARY,TRIM1#,PMP; W(TILT STEERING),SHADOW GARY,TRIM1#,PMP

main45286-02906-E2iAE101..NAP..N..USA; AE102..NAP..N;AE101..NAP..N..CND199508-199510

OAK,TRIM4#,PMP; W(TILT STEERING),OAK,TRIM4#,PMP

main45286-02906-J0iAE101..NAP..CND;AE102..NAP..N..USA; AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND199209-199508

DARK BLUE,TRIM8#,PMP; W(TILT STEERING),DARK BLUE,TRIM8#,PMP

main45286-02906-K0iAE101..NAP..CND;AE102..NAP..N..USA; AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND199209-199508

TAUPE,TRIM9#,PMP; W(TILT STEERING),TAUPE,TRIM9#,PMP

main45286-12953-B0iAE101..NAP;AE102..NAP..E199403-199508

W/O(*80),SHADOW GRAY,TRIM1#

main45286-12953-E0iAE101..NAP..D199508

W/O(*80),OAK,TRIM4#

main45286-12953-J0iAE101..NAP..D199508

W/O(*80),DARK BLUE,TRIM8#

main45286-12953-K0iAE102..NAP..E;AE101..NAP..USA199209-199403

W/O(*80),TAUPE,TRIM9#

45288BCOVER, STEERING COLUMN, UPPER

main45288-12010-B0iAE101..NAP..CND199403-199508

SHADOW GRAY,TRIM1#

main45288-12010-E0iAE101..NAP..D199508

OAK,TRIM4#

main45288-12010-J0iAE101..NAP..D199508

DARK BLUE,TRIM8#

main45288-12010-K0iAE101..NAP..CND199403-199508

TAUPE,TRIM9#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAE10#..NAP199209

9011908560

main90119-08560

9011910478

main90119-10478

9016450048

main90164-50048

9017910016

main90179-10016

9165160625

main91651-60625

9331514012

main93315-14012

15 parts on this diagram · 2 diagrams in section
