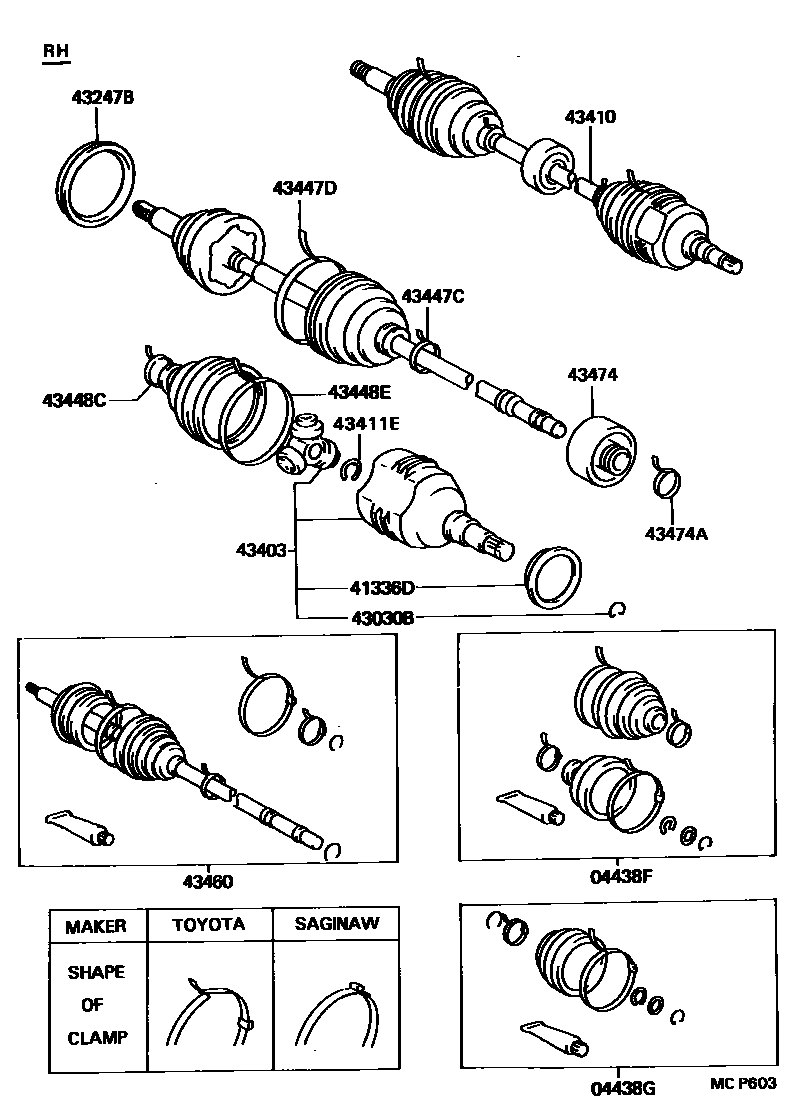

FRONT DRIVE SHAFT

0001 1TOYOTA,RH 0002 1SAGINAW,RH 0003 1TOYOTA,LH 0004 1SAGINAW,LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-02060iAE10#..NAP199209-199306

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-02050iAE10#..NAP199209-199508

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-01010iAE10#..NAP199209

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52015iAE10#..NAP199209

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-02030iAE10#..NAP199209

43403JOINT SET, FRONT AXLE INBOARD, RH

main43047-02030iAE101..NAP..D..USA; AE102..NAP..E;AE101..NAP..N..USA199508

TAIWAN SPEC

main43047-02050iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02030iAE10#..NAP199209-199504

main43410-02031iAE10#..NAP199504-199508

main43410-02040iAE10#..NAP199209-199504

W(*66)

main43410-02041iAE10#..NAP199504-199508

W(*66)

main43410-02070iAE10#..NAP199508

main43410-02080iAE10#..NAP199508

W(*66)

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52008×2iAE10#..NAP199209

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90080-46147iAE10#..NAP199209

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90080-46149iAE10#..NAP199209

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90080-46148iAE10#..NAP199209

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90080-46150iAE10#..NAP199209

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09050iAE10#..NAP199209-199504

main43460-09051iAE10#..NAP199504-199508

main43460-09060iAE10#..NAP199209-199504

W(*66)

main43460-09061iAE10#..NAP199504-199508

W(*66)

main43460-09190iAE10#..NAP199604

main43460-09200iAE101..NAP..5F..D;AE10#..NAP..N..CND;AE102..NAP..5F..N..USA;AE101..NAP..3FC..D..USA199508-199604

W(*66)

43474DAMPER, DRIVE SHAFT

main43474-02041iAE10#..NAP199504

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90080-46148iAE10#..NAP199504

15 parts on this diagram · 4 diagrams in section
