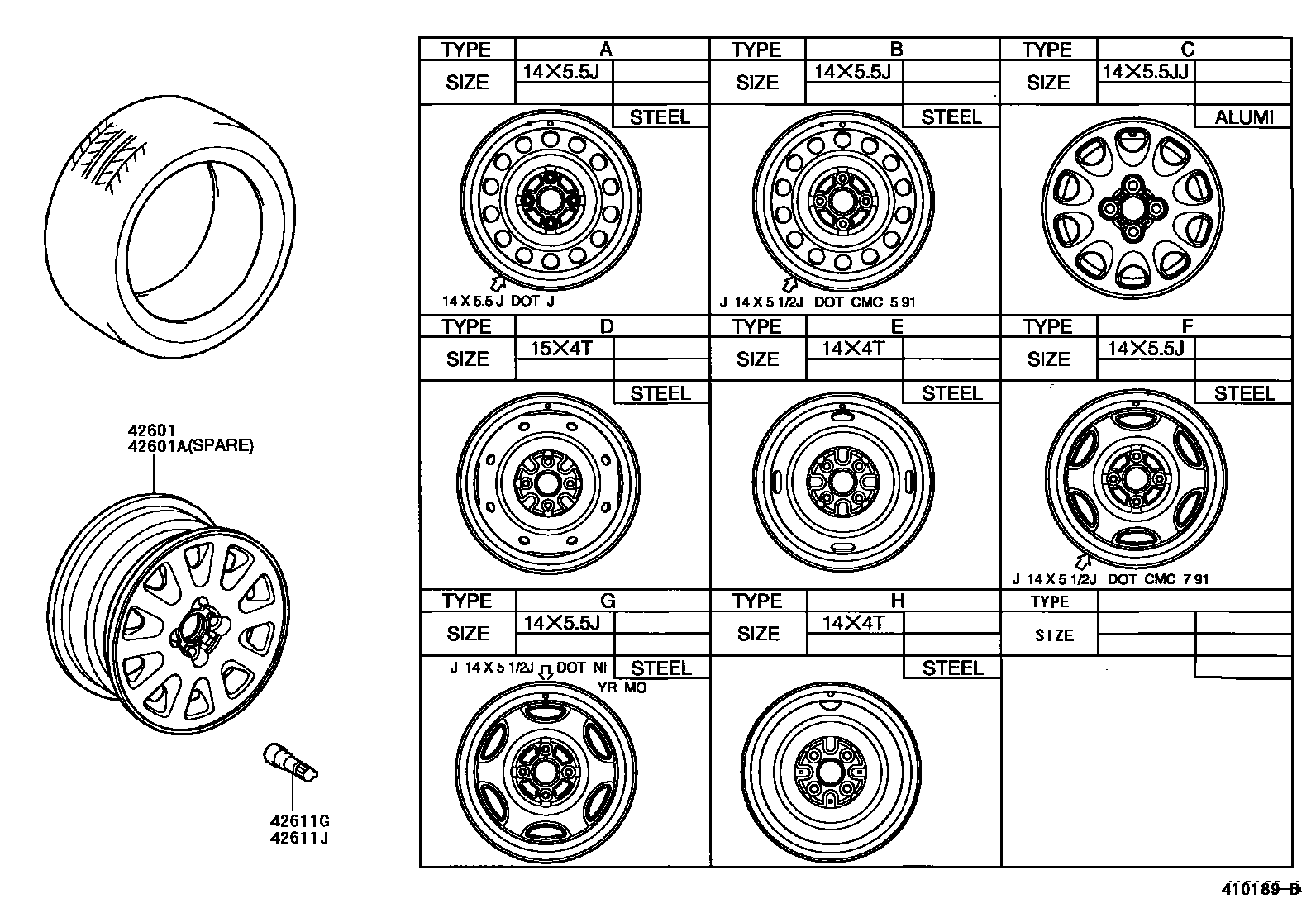

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-01140×4iAE101..NAP..D199508

14X5.5J,TYPE F:REFER TO ILLUSTRATION

main42611-01150×4iAE101..NAP..D199508

14X5.5J,TYPE G:REFER TO ILLUSTRATION

main42611-02090×4iAE10#..NAP199209

14X5.5J,TYPE A:REFER TO ILLUSTRATION

main42611-02100×4iAE10#..NAP199209

14X5.5J,TYPE B:REFER TO ILLUSTRATION

main42611-02110×4iAE102..NAP..E;AE102..NAP..CND199209-199508

14X5.5JJ,TYPE C:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-01140iAE101..NAP..D..CND199508-199708

14X5.5J,TYPE F:REFER TO ILLUSTRATION

main42611-01150iAE101..NAP..D..CND199508-199708

14X5.5J,TYPE G:REFER TO ILLUSTRATION

main42611-02090iAE10#..NAP..CND199209-199708

14X5.5J,TYPE A:REFER TO ILLUSTRATION

main42611-02100iAE10#..NAP..CND199209-199708

14X5.5J,TYPE B:REFER TO ILLUSTRATION

main42611-02120iAE101..NAP..D;AE101..NAP..N..CND199209-199708

14X4T,TYPE E:REFER TO ILLUSTRATION

main42611-02130iAE10#..NAP199209-199508

15X4T,TYPE D:REFER TO ILLUSTRATION

main42611-02150iAE101..NAP..D;AE101..NAP..N..CND199703-199708

14X4T,TYPE H:REFER TO ILLUSTRATION

main42611-1A020iAE102..NAP;AE101..NAP..N..USA199703-199708

15X4T,TYPE D:REFER TO ILLUSTRATION,(J)

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4iAE10#..NAP199209

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001iAE10#..NAP199209

4 parts on this diagram · 3 diagrams in section
