STANDARD TOOL

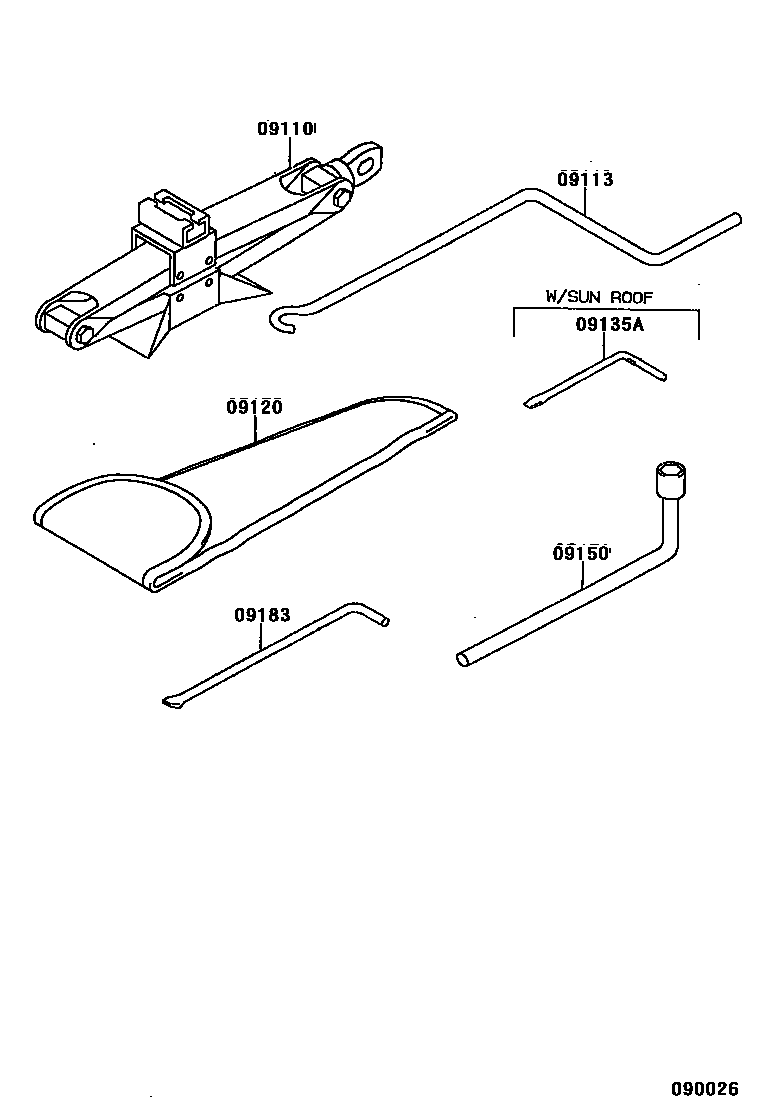

Parts diagram

09110JACK ASSY

main09111-03011i199209

09113HANDLE, JACK

main09113-01010i199209

09120BAG, TOOL

main09120-01020i199209

09135ABIT, SCREW DRIVER

main09135-03010i199209

09150WRENCH, HUB NUT BOX

main09150-01010i199209-199309

main09150-02020i199309

09183WRENCH, WHEEL CAP

main09183-01020i199209-199309

6 parts on this diagram · 1 diagram in section
