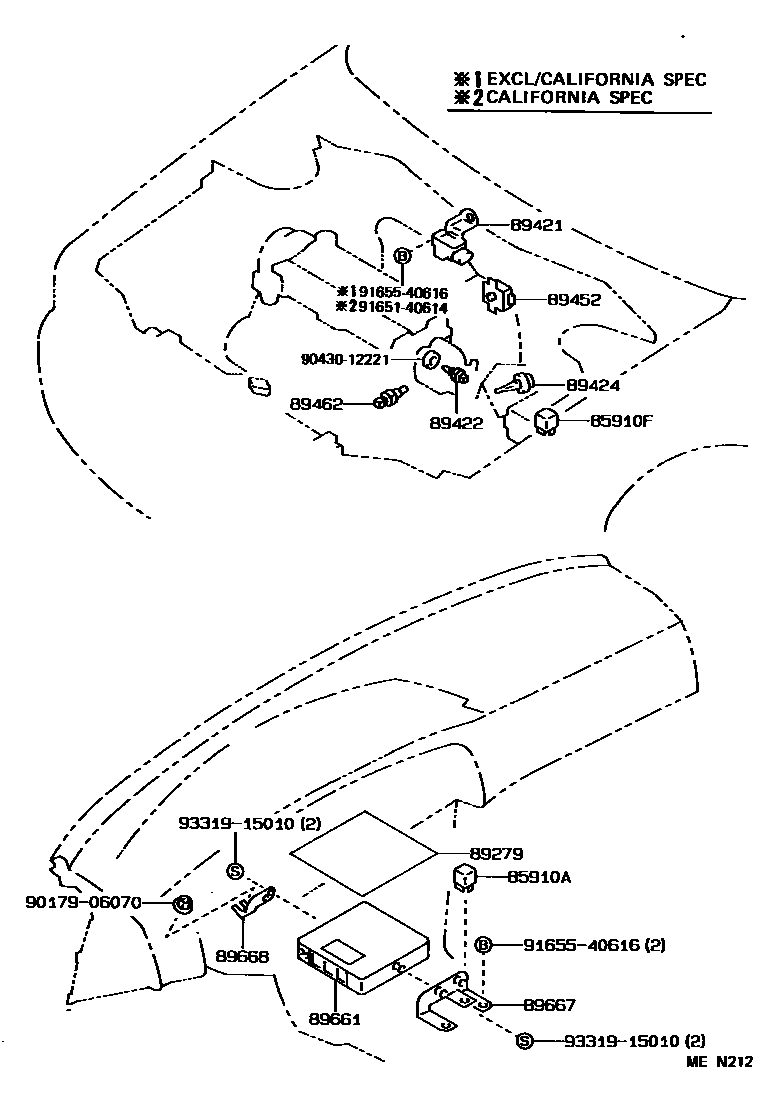

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iAE92198909-199209

85910FRELAY, COMPUTER (FOR EFI)

main90987-02006iAE92198909-199209

89279COVER, ENGINE CONTROL COMPUTER

main89279-12020iAE92198909-199209

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-01020iAE92199009-199102

*86

main89420-01030iAE92199102-199209

*86

main89420-12040iAE92..5F; AE92..ATM198909-199006

*86 & *87

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iAE92198909-199209

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE92198909-199209

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14020iAE92..ATM198909-199011

main89452-22010iAE92..ATM199011-199209

main89452-32020iAE92..5F198909-199209

89462SWITCH, START INJECTOR TIME

main89462-20030iAE92198909-199209

89661COMPUTER, ENGINE CONTROL

main89661-12490iAE92..3FC,5F198909-199008

main89661-12491iAE92..3FC,5F199008-199209

main89661-12500iAE92..4FC198909-199008

main89661-12501iAE92..4FC199008-199209

main89661-12510iAE92..(3FC,5F)..USA198909-199008

CALIFORNIA SPEC

main89661-12511iAE92..(3FC,5F)..USA199008-199209

CALIFORNIA SPEC

main89661-12520iAE92..4FC..USA198909-199008

CALIFORNIA SPEC

main89661-12521iAE92..4FC..USA199008-199209

CALIFORNIA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12020iAE92198909-199209

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12040iAE92198909-199209

9017906070

main90179-06070

9043012221

main90430-12221

9165140614

main91651-40614

9165540616

main91655-40616

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
