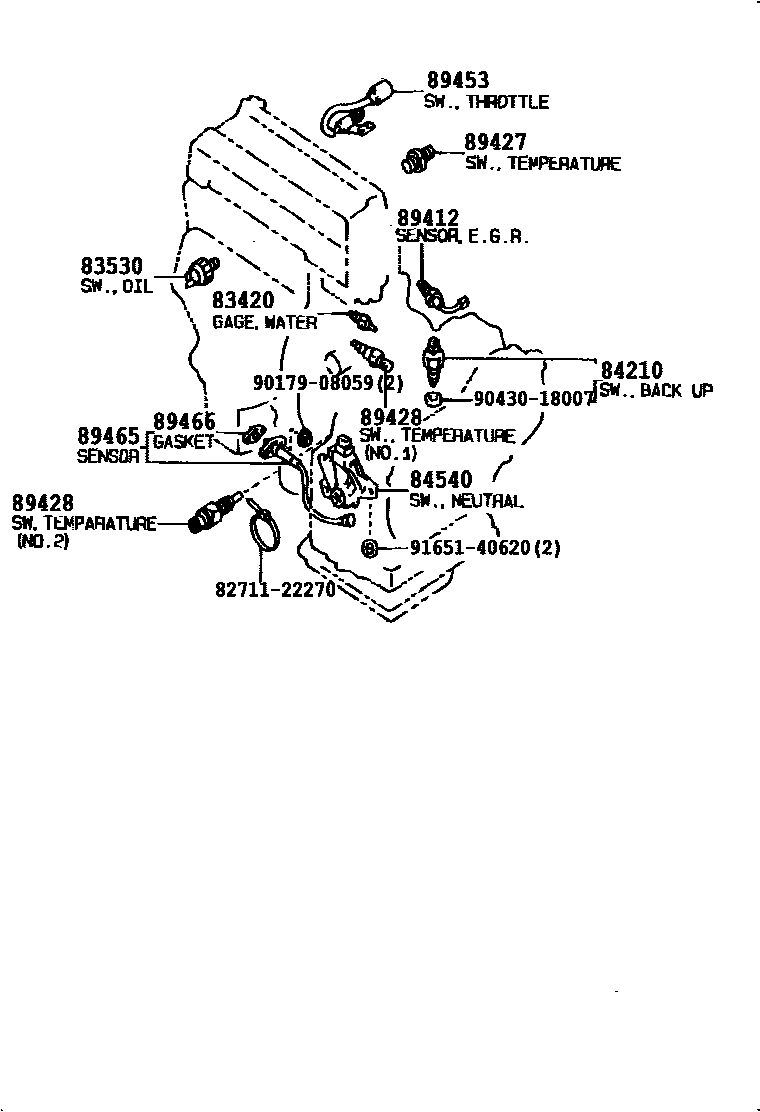

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE92198809-199209

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30050iAE92198809-199004

sub83530-30051

main83530-30051iAE92199004-199209

sub83530-60050

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE92..5F198809-199209

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16030iAE92..ATM198809-199209

89412SENSOR, E.G.R GAS TEMPERATURE

main89412-12010iAE92..USA198809-199209

CALIFORNIA SPEC

89427SWITCH, TEMPERATURE DETECT

main89427-12090iAE92198809-198909

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15011iAE92198809-199209

NO.1

sub89428-32010

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-12040iAE92198809-198909

89465SENSOR, OXYGEN

main89465-19255iAE92198809-198908

sub89465-29166

main89465-19395iAE92198909-199209

main89465-29166iAE92198908-198909

89466GASKET, OXYGEN SENSOR

main89466-20020iAE92198810-199209

main89466-30010iAE92198809-198810

sub89466-20020

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9017908059

main90179-08059

9043018007

main90430-18007

9165140620

main91651-40620

14 parts on this diagram · 8 diagrams in section
