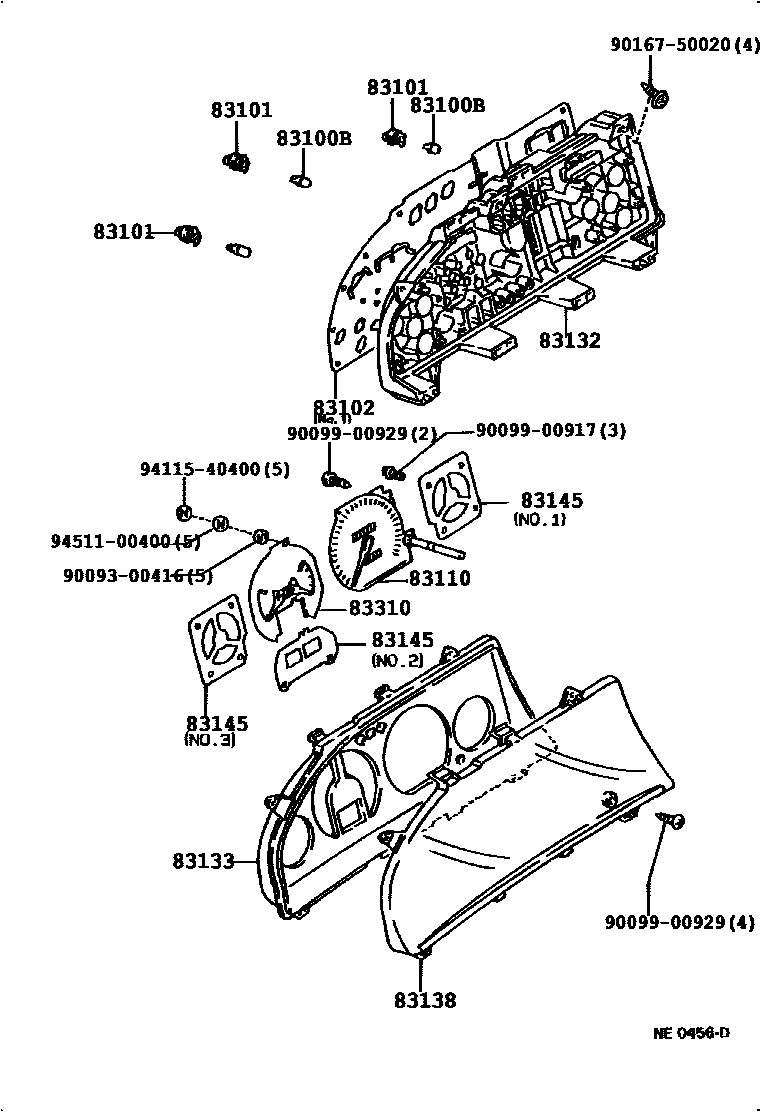

METER

0001 1 0002 1W(TACHOMETER) 0004 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080iAE92..DX..USA;AE92..5F..DX..CND199001-199209

12V 1.4W,W(SOCKET)

main83109-12030×3iAE92198809-199209

12V 3.4W,BLUE CAP

main90981-11018iAE92198809-199209

12V 1.2W W/O SOCKET

main99132-12034iAE92198809-199209

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iAE92198809-199209

12V 3.4W BULB

main83101-14040iAE92198809-199209

14V 1.4W BULB

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1E320iAE92..DX,STD198809-199209

NO.1

main83247-1E600iAE92..5F..DX198809-199001

W(TACHOMETER),NO.1

83110SPEEDOMETER ASSY

main83110-02060iAE92..(DX,STD)..USA199008-199209

main83110-02070iAE92..DX..CND199008-199209

main83110-02080iAE92..DX..USA; AE92..LE..USA199008-199209

W(TACHOMETER)

main83110-02090iAE92..5F..DX..CND; AE92..LE..CND199008-199209

W(TACHOMETER)

main83110-1E010iAE92..(DX,STD)..USA198809-198912

main83110-1E011iAE92..(DX,STD)..USA198912-199008

main83110-1E020iAE92..DX..CND198811-199008

main83110-1E030iAE92..5F..DX..USA; AE92..LE..USA198809-198912

W(TACHOMETER)

main83110-1E031iAE92..LE..USA198912-199008

main83110-1E040iAE92..5F..DX..CND; AE92..LE..CND198811-199008

W(TACHOMETER)

83132CASE, COMBINATION METER

main83132-1A230iAE92..DX,STD198809-199209

main83132-1A270iAE92..DX..USA;AE92..5F..DX..CND199001-199209

W(TACHOMETER)

83133PLATE, COMBINATION METER, NO.1

main83133-1A750iAE92..DX,STD198809-199209

main83133-1E030iAE92..LE198809-199209

83138GLASS, SPEEDOMETER

main83138-1A030iAE92198809-199209

83145LENS, METER, NO.1

main83145-1E570iAE92..DX,STD198809-199209

NO.3

main83145-1E690iAE92..DX,STD198809-199209

NO.2

main83145-1E790iAE92..DX,STD198809-199209

NO.1

83310GAGE ASSY, FUEL RECEIVER

main83243-1A250iAE92..5F..DX198809-199001

W(TACHOMETER)

main83243-1A490iAE92..DX,STD198809-199209

9009300416

main90093-00416

9009900917

main90099-00917

9009900929

main90099-00929

9016750020

main90167-50020

9411540400

main94115-40400

9451100400

main94511-00400

15 parts on this diagram · 3 diagrams in section
