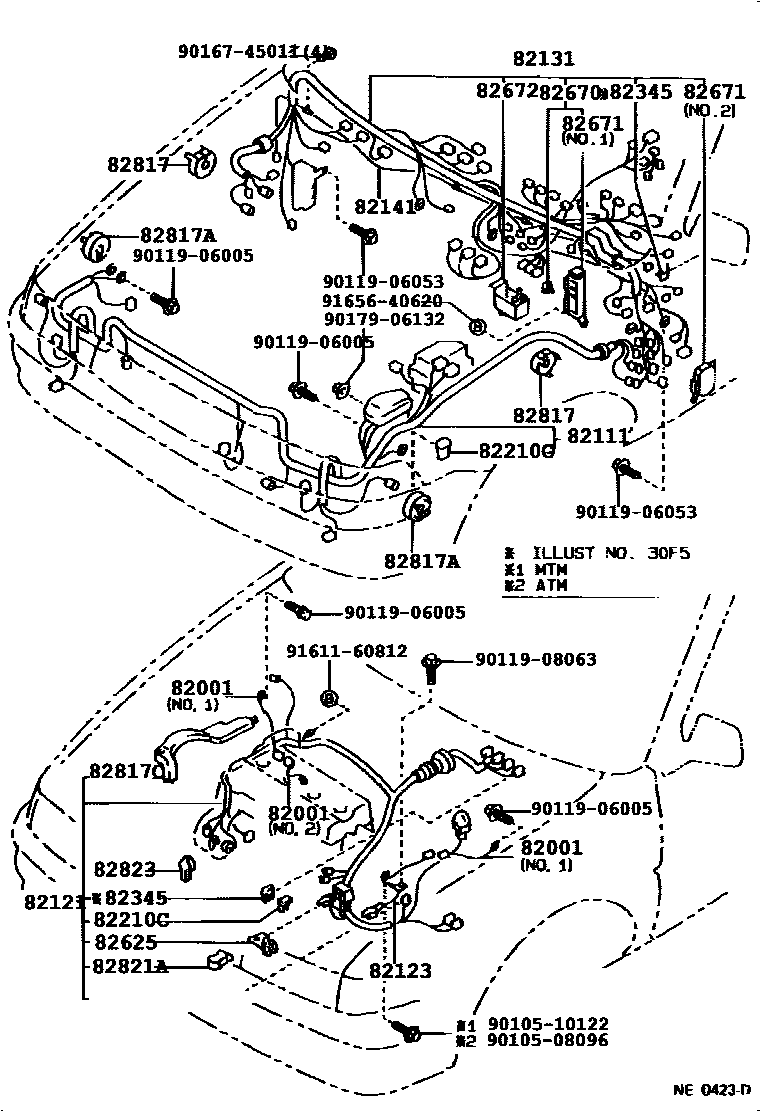

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

82001CABLE, BOND, NO.1

main90980-07206×2iAE92198809-199209

NO.1

main90980-07299iAE92198809-199209

NO.2

82111WIRE, ENGINE ROOM MAIN

main82111-02030iAE92..USA198809-198909

main82111-02040iAE92..USA198809-198909

W(CRUISE CONTROL)

main82111-02050iAE92..CND198811-198909

main82111-02060iAE92..CND198811-198909

W(CRUISE CONTROL)

main82111-02070iAE92..USA198909-199009

*85

main82111-02071iAE92..USA199009-199209

*85

main82111-02080iAE92..(DX,LE)..USA198909-199009

W(CRUISE CONTROL),*85

main82111-02081iAE92..(DX,LE)..USA199009-199209

W(CRUISE CONTROL),*85

main82111-02090iAE92..CND198909-199009

main82111-02091iAE92..CND199009-199109

main82111-02092iAE92..CND199109-199209

main82111-02100iAE92..CND198909-199009

W(CRUISE CONTROL)

main82111-02101iAE92..CND199009-199109

W(CRUISE CONTROL)

main82111-02102iAE92..CND199109-199209

W(CRUISE CONTROL)

main82111-02110iAE92..USA198909-199009

*84

main82111-02111iAE92..USA199009-199209

*84

main82111-02120iAE92..(DX,LE)..USA198909-199009

W(CRUISE CONTROL),*84

main82111-02121iAE92..(DX,LE)..USA199009-199209

W(CRUISE CONTROL),*84

82121WIRE, ENGINE

main82121-02030iAE92..5F..USA198809-198909

main82121-02040iAE92..ATM..USA198809-198909

main82121-02050iAE92..5F..USA198809-198909

CALIFORNIA SPEC

main82121-02060iAE92..ATM..USA198809-198909

CALIFORNIA SPEC

main82121-02070iAE92..5F..CND198811-198909

main82121-02080iAE92..ATM..CND198811-198909

main82121-1E041iAE92..5F198909-199008

main82121-1E042iAE92..5F199008-199009

main82121-1E043iAE92..5F199009-199209

main82121-1E051iAE92..ATM198909-199008

main82121-1E052iAE92..ATM199008-199009

main82121-1E053iAE92..ATM199009-199209

main82121-1E111iAE92..5F..USA198909-199008

CALIFORNIA SPEC

main82121-1E112iAE92..5F..USA199008-199009

CALIFORNIA SPEC

main82121-1E113iAE92..5F..USA199009-199209

CALIFORNIA SPEC

main82121-1E121iAE92..ATM..USA198909-199008

CALIFORNIA SPEC

main82121-1E122iAE92..ATM..USA199008-199009

CALIFORNIA SPEC

main82121-1E123iAE92..ATM..USA199009-199209

CALIFORNIA SPEC

82123WIRE, ENGINE, NO.3

main82123-01020iAE92..(4FC,5F)..EFI; AE92..(4FC,5F)..USA..CBR198809-199209

*84

main82123-01030iAE92..3FC..EFI; AE92..3FC..USA..CBR198809-199209

*84

main82123-02010iAE92..(4FC,5F)..CND..CBR; AE92..(4FC,5F)..EFI198811-199209

*85

main82123-02020iAE92..3FC..CND..CBR; AE92..3FC..EFI198811-199209

*85

82131WIRE, COWL

main82131-02070iAE92..DX..USA198809-198908

main82131-02080iAE92..DX..USA; AE92..LE..USA198809-198909

CALIFORNIA SPEC

main82131-02090iAE92..USA198809-198909

W(CRUISE CONTROL)

main82131-02100iAE92..DX..CND198811-198909

main82131-02110iAE92..LE..CND198811-198909

main82131-02120iAE92..CND198811-198909

W(CRUISE CONTROL)

main82131-02130iAE92..(DX,STD)..USA198909-199009

*84

main82131-02131iAE92..(DX,STD)..USA199009-199209

*84

main82131-02140iAE92..LE..USA198909-199009

*84

main82131-02141iAE92..LE..USA199009-199209

*84

main82131-02150iAE92..USA198909-199008

W(CRUISE CONTROL),*84

main82131-02151iAE92..LE..USA199009-199209

W(CRUISE CONTROL),*84

main82131-02160iAE92..(DX,STD)..USA198908-199009

*85

main82131-02161iAE92..(DX,STD)..USA199009-199209

*85

main82131-02170iAE92..LE..USA198909-199009

*85

main82131-02171iAE92..LE..USA199009-199209

*85

main82131-02180iAE92..USA198909-199008

W(CRUISE CONTROL),*85

main82131-02181iAE92..DX..USA199008-199009

W(CRUISE CONTROL),*85

main82131-02190iAE92..DX..CND198909-199009

main82131-02191iAE92..DX..CND199009-199109

main82131-02192iAE92..DX..CND199109-199209

main82131-02200iAE92..LE..CND198909-199009

*85

main82131-02201iAE92..LE..CND199009-199109

main82131-02202iAE92..LE..CND199109-199209

main82131-02210iAE92..CND198909-199009

W(CRUISE CONTROL)

main82131-02211iAE92..CND199009-199109

W(CRUISE CONTROL)

main82131-02212iAE92..CND199109-199209

W(CRUISE CONTROL)

main82131-02220iAE92..DX..USA199008-199209

W(POWER WINDOW),*84

main82131-02230iAE92..DX..USA199008-199209

W(CRUISE CONTROL),*84

82141WIRE, INSTRUMENT PANEL

main82141-02010iAE92..LE..USA198809-198909

main82141-02020iAE92..LE..CND198811-198909

main82141-02030iAE92..LE198909-199001

*84

main82141-02040iAE92..LE;AE92..DX..USA199001-199209

*85

82210CFUSIBLE LINK

main90982-08188iAE92198809-199209

30A,TERM.:FEMALE,PNK

main90982-08189iAE92199005-199209

40A,TERM.:FEMALE,GRN

main90982-08203iAE92198912-199005

80A,TERM.:MALE,BLK

main90982-08223iAE92198809-199209

30A,TERM.:MALE,PNK

main90982-08246iAE92198909-199209

100A,TERM.:MALE,BLUE

main90982-08253iAE92198812-198912

80A,TERM.:MALE,BLK

82345DIODE

main82345-12050×2iAE92..CND; AE92..DX..USA; AE92..LE..USA199009-199209

NO.4

main82345-20040iAE92198809-199009

NO.5

main82345-20050iAE92..ATM198809-199209

NO.6

82625TERMINAL, FUSIBLE LINK

main82625-12020iAE92198809-199209

82670BLOCK ASSY, JUNCTION, NO.1

main82670-12090iAE92..CND198811-198908

82671BLOCK, JUNCTION

main82671-12030×2iAE92..CND; AE92..USA199009-199209

NO.1

main82671-12070iAE92198809-199009

NO.2

82672COVER, JUNKTION BLOCK

main82672-12110iAE92198809-198906

main82672-12111iAE92198906-199209

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-01140×2iAE92198905-199209

*86

main82817-14350×2iAE92198905-199209

*86 & *87

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-01160×2iAE92198905-199209

*86

main82817-32010×2iAE92198905-199209

*86 & *87

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-12700iAE92..USA;AE92..CND..EFI198809-199209

82821ACOVER, CONNECTOR

main82821-12180iAE92..CND199009-199209

NO.1

main82821-12230iAE92198809-199209

NO.2

main82821-12260iAE92198809-199209

NO.1

82823CAP, TERMINAL, NO.1

main82823-01020iAE92; AE92..USA198909-199209

*84; *86

main82823-22050iAE92..CBR; AE92..EFI198809-199209

*86 & *87

9010508096

main90105-08096

9010510122

main90105-10122

9011906005

main90119-06005

9011906053

main90119-06053

9011908063

main90119-08063

9016745011

main90167-45011

9017906132

main90179-06132

9161160812

main91611-60812

9165640620

main91656-40620

26 parts on this diagram · 6 diagrams in section
