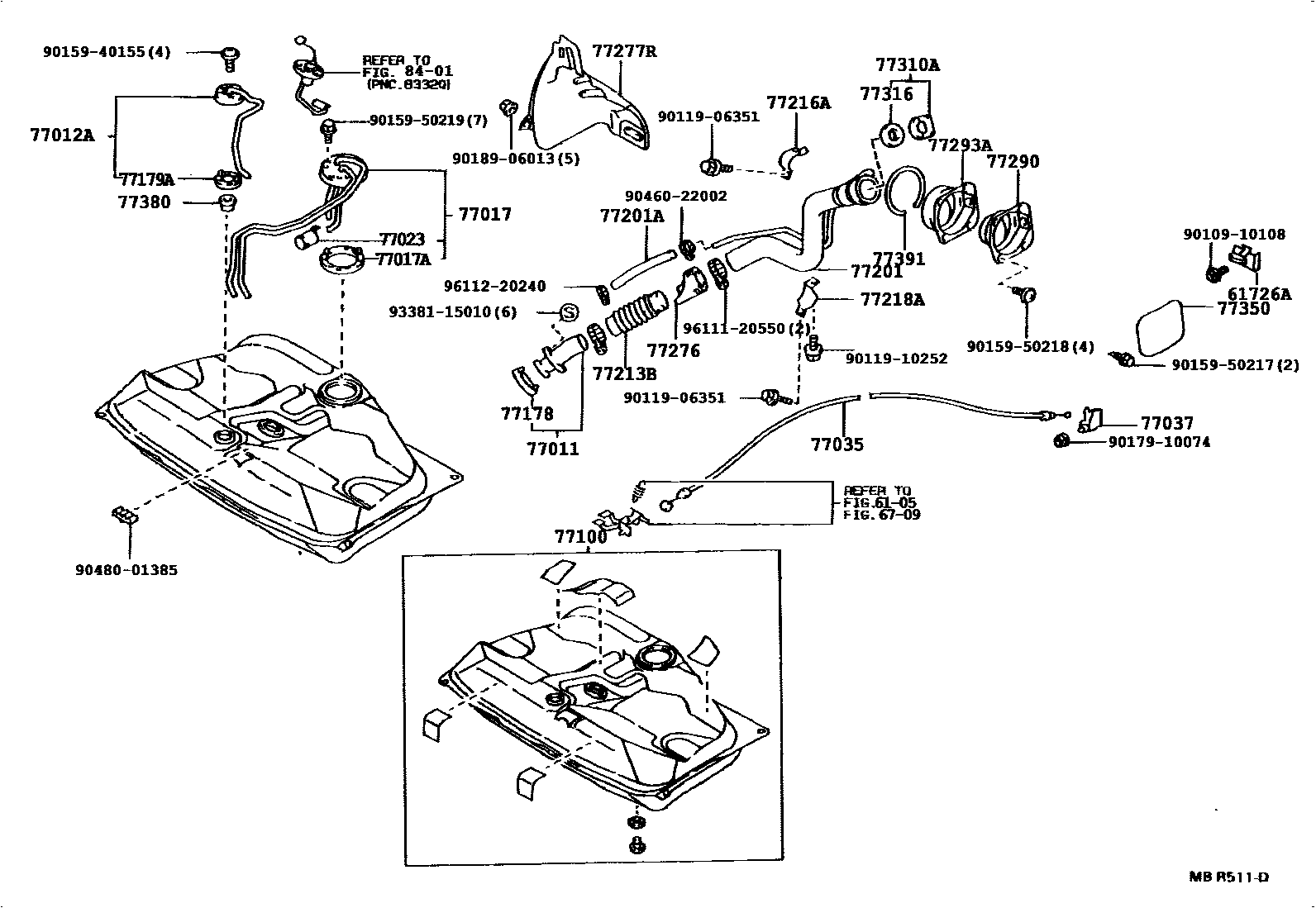

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

61726APLATE, FUEL INLET BOX COVER

main61726-12050iAE92..STD198909-199209

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12040iAE92..CBR;AE92..(DX,STD)..EFI198809-199001

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12030iAE92..CBR;AE92..(DX,STD)..EFI198809-199001

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-12310iAE92198809-198909

77017AGASKET, FUEL TANK VENT

main77169-12020iAE92198809-198909

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iAE92198809-198909

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-01030iAE92..DX,LE199008-199209

main77035-12260iAE92198809-198904

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-01020iAE92..DX,LE199008-199209

*86

main77037-12050iAE92..DX,LE198809-199008

77100TANK ASSY, FUEL

main77001-09020iAE92198909-199209

main77001-09030iAE92198809-198909

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iAE92..CBR;AE92..(DX,STD)..EFI198809-199001

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iAE92..CBR;AE92..(DX,STD)..EFI198809-199001

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12340iAE92198809-199209

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22011iAE92198809-199209

L=220

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12140iAE92198809-199209

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12040iAE92198809-199209

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12010iAE92198809-199209

77276PROTECTOR, FUEL HOSE

main77276-12040iAE92198809-199209

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-01020iAE92198809-199209

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-01020iAE92198909-199209

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-01020iAE92198908-199209

77310ACAP ASSY, FUEL TANK

main77310-01011iAE92198809-199204

main77310-01012iAE92199204-199209

77316GASKET, FUEL TANK CAP

main77316-06010iAE92199204-199209

main77316-16010iAE92198809-199204

77350LID ASSY, FUEL FILLER OPENING

main77350-12250iAE92..STD198909-199209

main77350-12260iAE92..DX,LE198809-199209

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iAE92199001-199209

77391RING, FUEL INLET BOX

main77391-01020iAE92198908-199209

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010910108

main90109-10108

9011906351

main90119-06351

9011910252

main90119-10252

9015940155

main90159-40155

9015950217

main90159-50217

9015950218

main90159-50218

9015950219

main90159-50219

9017910074

main90179-10074

9018906013

main90189-06013

9046022002

main90460-22002

9048001385

main90480-01385

9338115010

main93381-15010

9611120550

main96111-20550

9611220240

main96112-20240

42 parts on this diagram · 4 diagrams in section
