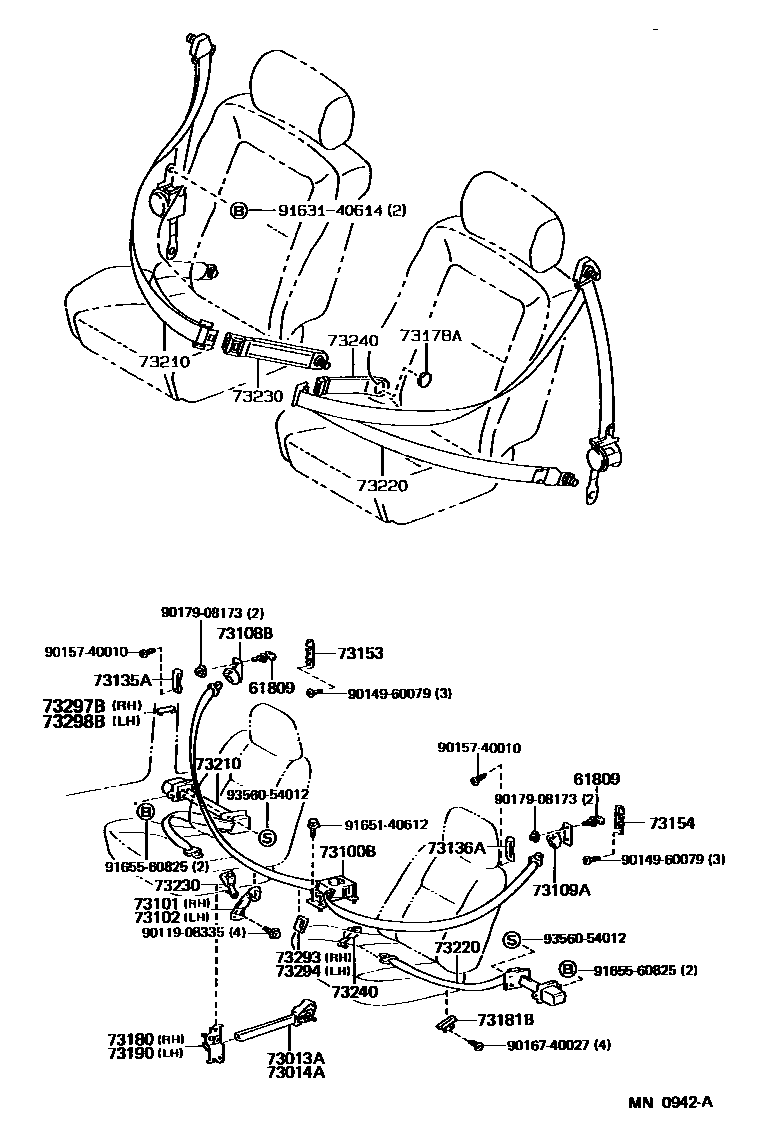

SEAT BELT & CHILD RESTRAINT SEAT
61809PIN SUB-ASSY, SHOULDER BELT ANCHOR
L=38.2
L=39.2
L=37.2
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73100BBELT ASSY, FRONT SEAT SHOULDER
73101GUIDE SUB-ASSY, FRONT SEAT BELT, INNER RH
73102GUIDE SUB-ASSY, FRONT SEAT BELT, INNER LH
73108BBUCKLE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73109ABUCKLE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73135ACOVER, SHOULDER BELT ANCHOR, RH
73136ACOVER, SHOULDER BELT ANCHOR, LH
73178ACAP, SEAT BELT ANCHOR COVER
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73181BGUIDE, FRONT SEAT LAP BELT, OUTER
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73293COVER, REAR CONSOLE BELT HOLE, RH
73294COVER, REAR CONSOLE BELT HOLE, LH
73297BCOVER, QUARTER TRIM BELT HOLE, RH
DARK SMOKE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
73298BCOVER, QUARTER TRIM BELT HOLE, LH
DARK SMOKE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
9011908335
main90119-08335
9014960079
main90149-60079
9015740010
main90157-40010
9016740027
main90167-40027
9017908173
main90179-08173
9163140614
main91631-40614
9165140612
main91651-40612
9165560825
main91655-60825
9356054012
main93560-54012
33 parts on this diagram · 2 diagrams in section
