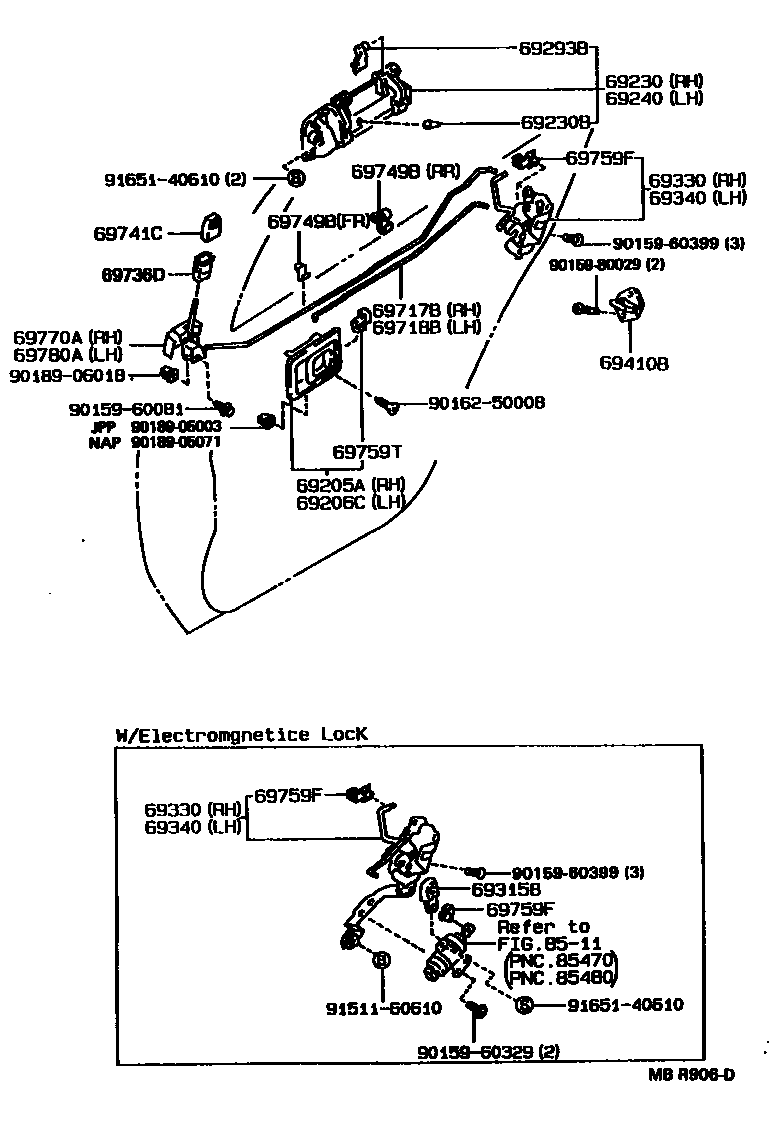

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DX PACKAGE,SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
DX PACKAGE,MAROON,MAROON,TRIM3#
MAROON,MAROON,TRIM3#
DX PACKAGE,BROWN,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
DX PACKAGE,DARK BLUE,TRIM8#
DARK SMOKE GRAY,TRIM1#
MAROON,MAROON,TRIM3#
DARK BEIGE,DARK BEIGE,TRIM4#
DARK BLUE,TRIM8#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DARK SMOKE GRAY,DARK SMOKE GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,MAROON,TRIM3#
DARK BEIGE,DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DX PACKAGE,SHADOW GRAY,TRIM1#
MAROON,MAROON,TRIM3#
DX PACKAGE,MAROON,MAROON,TRIM3#
BROWN,TRIM4#
DX PACKAGE,BROWN,TRIM4#
DX PACKAGE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
DX PACKAGE
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
DX PACKAGE
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
DX PACKAGE,RH
DX PACKAGE,LH
LH
RH
LH
69315BRETAINER, REAR DOOR LOCK SOLENOID
69330LOCK ASSY, REAR DOOR, RH
W(POWER WINDOW)
W(POWER WINDOW)
69340LOCK ASSY, REAR DOOR, LH
W(POWER WINDOW)
W(POWER WINDOW)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
*86 & *87
DX PACKAGE
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
*86 & *87
DX PACKAGE
69736DGUIDE, REAR DOOR LOCKING LINK
69741CKNOB, REAR DOOR LOCK CONTROL
DARK SMOKE GRAY,TRIM1#,*86
*86,MAROON,MAROON,TRIM3#
*86,DARK BEIGE,DARK BEIGE,TRIM4#
BROWN,TRIM4#,*86
DARK BLUE,TRIM8#,*86
69749BCLAMP, REAR DOOR LOCK LINK
FR,*86
RR,*86
RR,*86 & *87
FR,*86 & *87
69759FSNAP, REAR DOOR LOCK CONTROL LINK
RH,CREAM
LH,YELLOW
W(POWER WINDOW),LH,YELLOW
W(POWER WINDOW),LH,RED
W(POWER WINDOW),RH,BLACK
69759TSNAP, REAR DOOR INSIDE HANDLE
LH
RH
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
*86
*86 & *87
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
*86
*86 & *87
8511
9015960081
main90159-60081
9015960329
main90159-60329
9015960399
main90159-60399
9015980029
main90159-80029
9016250008
main90162-50008
9018905003
main90189-05003
9018905071
main90189-05071
9018906018
main90189-06018
9151160610
main91511-60610
9165140610
main91651-40610
30 parts on this diagram · 1 diagram in section
