INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

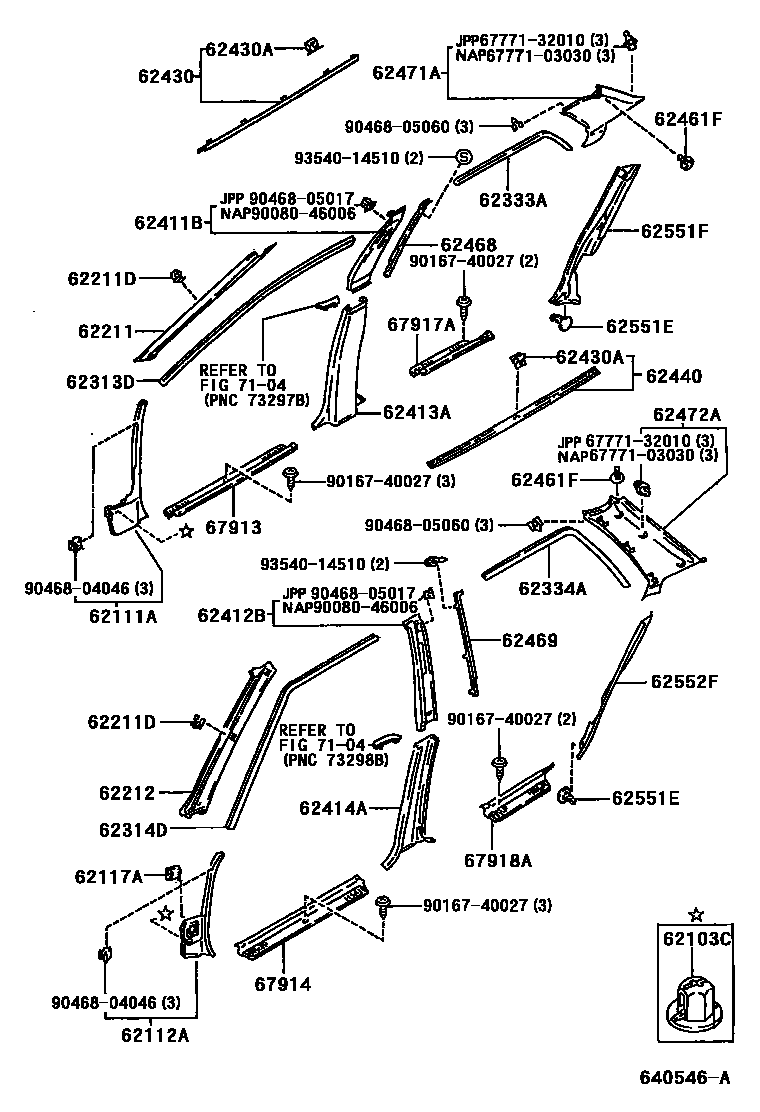

Parts diagram
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-05050i198809-199209
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-01020-B0i199009-199209
SHADOW GRAY,TRIM1#
main62101-01020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62101-01020-D0i198809-199209
MAROON,TRIM3#
main62101-01020-E0i198809-198909
DARK BEIGE,TRIM4#
main62101-01020-E2i198909-199209
BROWN,TRIM4#
main62101-01020-J0i198809-199209
DARK BLUE,TRIM8#
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-01020-B0i199009-199209
SHADOW GRAY,TRIM1#
main62102-01020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62102-01020-D0i198809-199209
MAROON,TRIM3#
main62102-01020-E0i198809-198909
DARK BEIGE,TRIM4#
main62102-01020-E2i198909-199209
BROWN,TRIM4#
main62102-01020-J0i198809-199209
DARK BLUE,TRIM8#
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-01020-B0i198809-199009
DARK SMOKE GRAY,TRIM1#
main62117-01020-B1i199009-199209
SHADOW GRAY,TRIM1#
main62117-01020-D0i198809-199209
MAROON,TRIM3#
main62117-01020-E1i198809-198909
DARK BEIGE,TRIM4#
main62117-01020-E2i198909-199209
BROWN,TRIM4#
main62117-01020-J0i198809-199209
DARK BLUE,TRIM8#
62211GARNISH, FRONT PILLAR, RH
main62211-02020-B0i199009-199209
SHADOW GRAY,TRIM1#
main62211-02020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62211-02020-D0i198809-199209
MAROON,TRIM3#
main62211-02020-E0i198809-198909
DARK BEIGE,TRIM4#
main62211-02020-E1i198909-199209
BROWN,TRIM4#
main62211-02020-J0i198809-199209
DARK BLUE,TRIM8#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90468-05060i198809-199209
62212GARNISH, FRONT PILLAR, LH
main62212-02020-B0i199009-199209
SHADOW GRAY,TRIM1#
main62212-02020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62212-02020-D0i198809-199209
MAROON,TRIM3#
main62212-02020-E0i198809-198909
DARK BEIGE,TRIM4#
main62212-02020-E1i198909-199209
BROWN,TRIM4#
main62212-02020-J0i198809-199209
DARK BLUE,TRIM8#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-02020-B0i199009-199209
SHADOW GRAY,TRIM1#
main62313-02020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62313-02020-D0i198809-199209
MAROON,TRIM3#
main62313-02020-E0i198809-198909
DARK BEIGE,TRIM4#
main62313-02020-E1i198909-199209
BROWN,TRIM4#
main62313-02020-J0i198809-199209
DARK BLUE,TRIM8#
62314DTRIM, FRONT DOOR OPENING, LH
main62313-02020-B0i199009-199209
SHADOW GRAY,TRIM1#
main62313-02020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62313-02020-D0i198809-199209
MAROON,TRIM3#
main62313-02020-E0i198809-198909
DARK BEIGE,TRIM4#
main62313-02020-E1i198909-199209
BROWN,TRIM4#
main62313-02020-J0i198809-199209
DARK BLUE,TRIM8#
62333ATRIM, REAR DOOR OPENING, RH
main62333-02010-B0i199009-199209
SHADOW GRAY,TRIM1#
main62333-02010-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62333-02010-D0i198809-199209
MAROON,TRIM3#
main62333-02010-E0i198809-198909
DARK BEIGE,TRIM4#
main62333-02010-E1i198909-199209
BROWN,TRIM4#
main62333-02010-J0i198809-199209
DARK BLUE,TRIM8#
62334ATRIM, REAR DOOR OPENING, LH
main62333-02010-B0i199009-199209
SHADOW GRAY,TRIM1#
main62333-02010-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62333-02010-D0i198809-199209
MAROON,TRIM3#
main62333-02010-E0i198809-198909
DARK BEIGE,TRIM4#
main62333-02010-E1i198909-199209
BROWN,TRIM4#
main62333-02010-J0i198809-199209
DARK BLUE,TRIM8#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-01020-B0i199009-199209
SHADOW GRAY,TRIM1#,*86
main62411-01020-B1i198811-199009
DARK SMOKE GRAY,TRIM1#,*86
main62411-01020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62411-01020-D0i198809-199209
MAROON,TRIM3#
main62411-01020-D0i198811-199209
MAROON,TRIM3#,*86
main62411-01020-E0i198809-198909
DARK BEIGE,TRIM4#
main62411-01020-E0i198811-198909
DARK BEIGE,TRIM4#,*86
main62411-01020-E2i198909-199209
BROWN,TRIM4#,*86
main62411-01020-J0i198809-199209
DARK BLUE,TRIM8#
main62411-01020-J0i198811-199209
DARK BLUE,TRIM8#,*86
main62411-01030-B0i198909-199009
DARK SMOKE GRAY,TRIM1#
main62411-01030-B1i199009-199209
SHADOW GRAY,TRIM1#
main62411-01030-D0i198909-199209
MAROON,TRIM3#
main62411-01030-E1i198909-199209
BROWN,TRIM4#
main62411-01030-J0i198909-199209
DARK BLUE,TRIM8#
main62411-12400-B0i199009-199209
SHADOW GRAY,TRIM1#,*85 & *87
sub62411-12400
main62411-12400-B1i198811-199009
DARK SMOKE GRAY,TRIM1#,*85 & *87
sub62411-12400
main62411-12400-D0i198811-199209
MAROON,TRIM3#,*85 & *87
sub62411-12400
main62411-12400-E0i198811-198909
DARK BEIGE,TRIM4#,*85 & *87
sub62411-12400
main62411-12400-E1i198909-199209
BROWN,TRIM4#,*85 & *87
sub62411-12400
main62411-12400-J0i198811-199209
DARK BLUE,TRIM8#,*85 & *87
sub62411-12400
main62411-12410-B0i198909-199009
DARK SMOKE RAY,TRIM1#,*86 & *87
sub62411-12410
main62411-12410-B1i199009-199209
SHADOW GRAY,TRIM1#,*86 & *87
sub62411-12410
main62411-12410-D0i198909-199209
MAROON,TRIM3#,*86 & *87
sub62411-12410
main62411-12410-E0i198909-199209
BROWN,TRIM4#,*86 & *87
sub62411-12410
main62411-12410-J0i198909-199209
DARK BLUE,TRIM8#,*86 & *87
sub62411-12410
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-01020-B0i199009-199209
SHADOW GRAY,TRIM1#,*86
main62412-01020-B1i198909-199009
DARK SMOKE GRAY,TRIM1#,*86
main62412-01020-D0i198909-199209
MAROON,TRIM3#,*86
main62412-01020-E0i198809-198909
DARK BEIGE,TRIM4#
main62412-01020-E0i198811-198909
DARK BEIGE,TRIM4#,*86
main62412-01020-E2i198909-199209
BROWN,TRIM4#,*86
main62412-01020-J0i198809-199209
DARK BLUE,TRIM8#
main62412-01020-J0i198811-199209
DARK BLUE,TRIM8#,*86
main62412-01030-B0i198909-199009
DARK SMOKE GRAY,TRIM1#
main62412-01030-B1i199009-199209
SHADOW GRAY,TRIM1#
main62412-01030-D0i198909-199209
MAROON,TRIM3#
main62412-01030-E1i198909-199209
BROWN,TRIM4#
main62412-01030-J0i198909-199209
DARK BLUE,TRIM8#
main62412-12400-B0i199009-199209
SHADOW GRAY,TRIM1#,*85 & *87
sub62412-12400
main62412-12400-B1i198811-199009
DARK SMOKE GRAY,TRIM1#,*85 & *87
sub62412-12400
main62412-12400-D0i198811-199209
MAROON,TRIM3#,*85 & *87
sub62412-12400
main62412-12400-E0i198811-198909
DARK BEIGE,TRIM4#,*85 & *87
sub62412-12400
main62412-12400-E1i198909-199209
BROWN,TRIM4#,*85 & *87
sub62412-12400
main62412-12400-J0i198811-199209
DARK BLUE,TRIM8#,*85 & *87
sub62412-12400
main62412-12400-J0i199009-199209
DARK BLUE,TRIM4#,*85 & *87
sub62412-12400
main62412-12410-B0i198909-199009
DARK SMOKE GRAY,TRIM1#,*86 & *87
sub62412-12410
main62412-12410-B1i199009-199209
SHADOW GRAY,TRIM1#,*86 & *87
sub62412-12410
main62412-12410-D0i198909-199209
MAROON,TRIM3#,*86 & *87
sub62412-12410
main62412-12410-E0i198909-199209
BROWN,TRIM4#,*86 & *87
sub62412-12410
main62412-12410-J0i198909-199209
DARK BLUE,TRIM8#,*86 & *87
sub62412-12410
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-01020-B0i199009-199209
SHADOW GRAY,TRIM1#
main62413-01020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62413-01020-D0i198809-199209
MAROON,TRIM3#
main62413-01020-E0i198809-198909
DARK BEIGE,TRIM4#
main62413-01020-E2i198909-199209
BROWN,TRIM4#
main62413-01020-J0i198809-199209
DARK BLUE,TRIM8#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-01020-B0i199009-199209
SHADOW GRAY,TRIM1#
main62414-01020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62414-01020-D0i198809-199209
MAROON,TRIM3#
main62414-01020-E0i198809-198909
DARK BEIGE,TRIM4#
main62414-01020-E2i198909-199209
BROWN,TRIM4#
main62414-01020-J0i198809-199209
DARK BLUE,TRIM8#
62430GARNISH ASSY, ROOF SIDE RAIL, RH
main62431-02010-B0i199009-199209
SHADOW GRAY,TRIM1#
main62431-02010-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62431-02010-D0i198809-199209
MAROON,TRIM3#
main62431-02010-E0i198809-198909
DARK BEIGE,TRIM4#
main62431-02010-E1i198909-199209
BROWN,TRIM4#
main62431-02010-J0i198809-199209
DARK BLUE,TRIM8#
62430ACLIP, ROOF SIDE RAIL GARNISH
main90080-46006i198809-199209
62440GARNISH ASSY, ROOF SIDE RAIL, LH
main62432-02010-B0i199009-199209
SHADOW GRAY,TRIM1#
main62432-02010-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62432-02010-D0i198809-199209
MAROON,TRIM3#
main62432-02010-E0i198809-198909
DARK BEIGE,TRIM4#
main62432-02010-E1i198909-199209
BROWN,TRIM4#
main62432-02010-J0i198809-199209
DARK BLUE,TRIM8#
62461FCLIP (FOR ROOF SIDE TRIM GARNISH)
main90467-05062-B0i199009-199209
SHADOW GRAY,TRIM1#
sub90467-05062
main90467-05062-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
sub90467-05062
main90467-05062-D0i198809-199209
MAROON,TRIM3#
sub90467-05062
main90467-05062-E0i198809-198909
DARK BEIGE,TRIM4#
sub90467-05062
main90467-05062-E2i198909-199209
BROWN,TRIM4#
sub90467-05062
main90467-05062-J0i198809-199209
DARK BLUE,TRIM8#
sub90467-05062
62468GARNISH, CENTER PILLAR, REAR RH
main62468-01010-B0i199009-199209
SHADOW GRAY,TRIM1#
main62468-01010-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62468-01010-D0i198809-199209
MAROON,TRIM3#
main62468-01010-E0i198809-198909
DARK BEIGE,TRIM4#
main62468-01010-E2i198909-199209
BROWN,TRIM4#
main62468-01010-J0i198809-199209
DARK BLUE,TRIM8#
62469GARNISH, CENTER PILLAR, REAR LH
main62469-01010-B0i199009-199209
SHADOW GRAY,TRIM1#
main62469-01010-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62469-01010-D0i198809-199209
MAROON,TRIM3#
main62469-01010-E0i198809-198909
DARK BEIGE,TRIM4#
main62469-01010-E2i198909-199209
BROWN,TRIM4#
main62469-01010-J0i198809-199209
DARK BLUE,TRIM8#
62471AGARNISH, ROOF SIDE, INNER RH
main62471-02020-B0i199009-199209
SHADOW GRAY,TRIM1#,*86
sub62471-02020
main62471-02020-B1i198811-199009
DARK SMOKE GRAY,TRIM1#,*86
sub62471-02020
main62471-02020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
sub62471-02020
main62471-02020-D0i198811-199209
MAROON,TRIM3#,*86
sub62471-02020
main62471-02020-D0i198809-199209
MAROON,TRIM3#
sub62471-02020
main62471-02020-E0i198811-198909
DARK BEIGE,TRIM4#,*86
sub62471-02020
main62471-02020-E0i198809-198909
DARK BEIGE,TRIM4#
sub62471-02020
main62471-02020-E1i198909-199209
BROWN,TRIM4#,*86
sub62471-02020
main62471-02020-J0i198811-199209
DARK BLUE,TRIM8#,*86
sub62471-02020
main62471-02020-J0i198809-199209
DARK BLUE,TRIM8#
sub62471-02020
main62471-02030-B0i199009-199209
W(SUN ROOF),SHADOW GRAY,TRIM1#,*86
main62471-02030-B1i198809-199009
W(SUN ROOF),DARK SMOKE GRAY,TRIM1#
main62471-02030-B1i198811-199009
W(SUN ROOF),DARK SMOKE GRAY,TRIM1#,*86
main62471-02030-D0i198811-199209
W(SUN ROOF),MAROON,TRIM3#,*86
main62471-02030-D0i198809-199209
W(SUN ROOF),MAROON,TRIM3#
main62471-02030-E0i198809-198909
W(SUN ROOF),DARK BEIGE,TRIM4#
main62471-02030-E0i198811-198909
W(SUN ROOF),DARK BEIGE,TRIM4#,*86
main62471-02030-E1i198909-199209
W(SUN ROOF),BROWN,TRIM4#,*86
main62471-02030-J0i198811-199209
W(SUN ROOF),DARK BLUE,TRIM8#,*86
main62471-02030-J0i198809-199209
W(SUN ROOF),DARK BLUE,TRIM8#
main62471-12350-B0i198811-199009
DARK SMOKE GRAY,TRIM1#,*85 & *87
sub62471-12210
sub62471-12350
main62471-12350-B1i199009-199209
SHADOW GRAY,TRIM1#,*85 & *87
sub62471-12210
sub62471-12350
main62471-12350-D0i198811-199209
MAROON,TRIM3#,*85 & *87
sub62471-12210
sub62471-12350
main62471-12350-E0i199009-199209
BROWN,TRIM4#,*85 & *87
sub62471-12210
sub62471-12350
main62471-12350-E1i198811-198909
DARK BEIGE,TRIM4#,*85 & *87
sub62471-12210
sub62471-12350
main62471-12350-J0i198811-199209
DARK BLUE,TRIM8#,*85 & *87
sub62471-12210
sub62471-12350
main62471-12390-B0i198811-199009
W(SUN ROOF),DARK SMOKE GRAY,TRIM1#,*85 & *87
sub62471-12380
main62471-12390-B1i199009-199209
W(SUN ROOF),SHADOW GRAY,TRIM1#,*85 & *87
sub62471-12380
main62471-12390-D0i198811-199209
W(SUN ROOF),MAROON,TRIM3#,*85 & *87
sub62471-12380
main62471-12390-E0i198909-199209
W(SUN ROOF),BROWN,TRIM4#,*85 & *87
sub62471-12380
main62471-12390-E1i198811-198909
W(SUN ROOF),DARK BEIGE,TRIM4#,*85 & *87
sub62471-12380
main62471-12390-J0i198811-199209
W(SUN ROOF),DARK BLUE,TRIM8#,*85 & *87
sub62471-12380
62472AGARNISH, ROOF SIDE, INNER LH
main62472-02020-B0i199009-199209
SHADOW GRAY,TRIM1#,*86
sub62472-02020
main62472-02020-B1i198811-199009
DARK SMOKE GRAY,TRIM1#,*86
sub62472-02020
main62472-02020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
sub62472-02020
main62472-02020-D0i198811-199209
MAROON,TRIM3#,*86
sub62472-02020
main62472-02020-D0i198809-199209
MAROON,TRIM3#
sub62472-02020
main62472-02020-E0i198811-198909
DARK BEIGE,TRIM4#,*86
sub62472-02020
main62472-02020-E0i198809-198909
DARK BEIGE,TRIM4#
sub62472-02020
main62472-02020-E1i198909-199209
BROWN,TRIM4#,*86
sub62472-02020
main62472-02020-J0i198809-199209
DARK BLUE,TRIM8#
sub62472-02020
main62472-02020-J0i198811-199209
DARK BLUE,TRIM8#,*86
sub62472-02020
main62472-02030-B0i199009-199209
W(SUN ROOF),SHADOW GRAY,TRIM1#,*86
main62472-02030-B1i198809-199009
W(SUN ROOF),DARK SMOKE GRAY,TRIM1#
main62472-02030-B1i198811-199009
W(SUN ROOF),DARK SMOKE GRAY,TRIM1#,*86
main62472-02030-D0i198809-199209
W(SUN ROOF),MAROON,TRIM3#
main62472-02030-D0i198811-199209
W(SUN ROOF),MAROON,TRIM3#,*86
main62472-02030-E0i198811-198909
W(SUN ROOF),DARK BEIGE,TRIM4#,*86
main62472-02030-E0i198809-198909
W(SUN ROOF),DARK BEIGE,TRIM4#
main62472-02030-E1i198909-199209
W(SUN ROOF),BROWN,TRIM4#,*86
main62472-02030-J0i198809-199209
W(SUN ROOF),DARK BLUE,TRIM8#
main62472-02030-J0i198811-199209
W(SUN ROOF),DARK BLUE,TRIM8#,*86
main62472-12350-B0i198811-199009
DARK SMOKE GRAY,TRIM1#,*85 & *87
sub62472-12220
sub62472-12350
main62472-12350-B1i199009-199209
SHADOW GRAY,TRIM1#,*85 & *87
sub62472-12220
sub62472-12350
main62472-12350-D0i198811-199209
MAROON,TRIM3#,*85 & *87
sub62472-12220
sub62472-12350
main62472-12350-E0i199009-199209
BROWN,TRIM1#,*85 & *87
sub62472-12220
sub62472-12350
main62472-12350-E1i198811-198909
DARK BEIGE,TRIM4#,*85 & *87
sub62472-12220
sub62472-12350
main62472-12350-J0i198811-199209
DARK BLUE,TRIM8#,*85 & *87
sub62472-12220
sub62472-12350
main62472-12390-B0i198811-199009
W(SUN ROOF),DARK SMOKE GRAY,TRIM1#,*85 & *87
sub62472-12380
main62472-12390-B1i199009-199209
W(SUN ROOF),SHADOW GRAY,TRIM1#,*85 & *87
sub62472-12380
main62472-12390-D0i198811-199209
W(SUN ROOF),MAROON,TRIM3#,*85 & *87
sub62472-12380
main62472-12390-E0i198909-199209
W(SUN ROOF),BROWN,TRIM4#,*85 & *87
sub62472-12380
main62472-12390-E1i198811-198909
W(SUN ROOF),DARK BEIGE,TRIM4#,*85 & *87
sub62472-12380
main62472-12390-J0i198811-199209
W(SUN ROOF),DARK BLUE,TRIM8#,*85 & *87
sub62472-12380
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-06049-B0i199009-199203
SHADOW GRAY,TRIM3#,4#,8#
sub90467-06049
main90467-06049-B0i198812-199209
SHADOW GRAY,TRIM1#,3#,4#,8#
sub90467-06049
main90467-06049-B3i198811-199009
DARK SMOKE GRAY,TRIM1#
sub90467-06049
main90467-06049-D0i198809-199209
MAROON,TRIM3#
sub90467-06049
main90467-06049-E0i198809-198909
DARK BEIGE,TRIM4#
sub90467-06049
main90467-06049-E4i198909-199209
BROWN,TRIM4#
sub90467-06049
main90467-06049-J1i198809-199209
DARK BLUE,TRIM8#
sub90467-06049
62551FGARNISH, REAR SEAT SIDE, RH
main62551-01010-B0i199009-199209
SHADOW GRAY,TRIM1#
main62551-01010-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62551-01010-D0i198809-199209
MAROON,TRIM3#
main62551-01010-E0i198809-198909
DARK BEIGE,TRIM4#
main62551-01010-E2i198909-199209
BROWN,TRIM4#
main62551-01010-J0i198809-199209
DARK BLUE,TRIM8#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-01010-B0i199009-199209
SHADOW GRAY,TRIM1#
main62552-01010-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main62552-01010-D0i198809-199209
MAROON,TRIM3#
main62552-01010-E0i198809-198909
DARK BEIGE,TRIM4#
main62552-01010-E2i198909-199209
BROWN,TRIM4#
main62552-01010-J0i198809-199209
DARK BLUE,TRIM8#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-01020-B0i199009-199209
SHADOW GRAY,TRIM1#
main67913-01020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main67913-01020-D0i198809-199209
MAROON,TRIM3#
main67913-01020-E0i198809-198909
DARK BEIGE,TRIM4#
main67913-01020-E2i198909-199209
BROWN,TRIM4#
main67913-01020-J0i198809-199209
DARK BLUE,TRIM8#
67914PLATE, FRONT DOOR SCUFF, LH
main67913-01020-B0i199009-199209
SHADOW GRAY,TRIM1#
main67913-01020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main67913-01020-D0i198809-199209
MAROON,TRIM3#
main67913-01020-E0i198809-198909
DARK BEIGE,TRIM4#
main67913-01020-E2i198909-199209
BROWN,TRIM4#
main67913-01020-J0i198809-199209
DARK BLUE,TRIM8#
67917APLATE, REAR DOOR SCUFF, RH
main67917-01020-B0i199009-199209
SHADOW GRAY,TRIM1#
main67917-01020-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main67917-01020-D0i198809-199209
MAROON,TRIM3#
main67917-01020-E0i198809-198909
DARK BEIGE,TRIM4#
main67917-01020-E2i198909-199209
BROWN,TRIM4#
main67917-01020-J0i198809-199209
DARK BLUE,TRIM8#
67918APLATE, REAR DOOR SCUFF, LH
main67918-01010-B0i199009-199209
SHADOW GRAY,TRIM1#
main67918-01010-B1i198809-199009
DARK SMOKE GRAY,TRIM1#
main67918-01010-D0i198809-199209
MAROON,TRIM3#
main67918-01010-E0i198809-198909
DARK BEIGE,TRIM4#
main67918-01010-E2i198909-199209
BROWN,TRIM4#
main67918-01010-J0i198809-199209
DARK BLUE,TRIM8#
7104
6777103030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-03030
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9008046006
main90080-46006
9016740027
main90167-40027
9046804046
main90468-04046
9046805017
main90468-05017
9046805060
main90468-05060
9354014510
main93540-14510

39 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
