Toyota COROLLA NAP/SED155 — LUGGAGE COMPARTMENT DOOR & LOCK

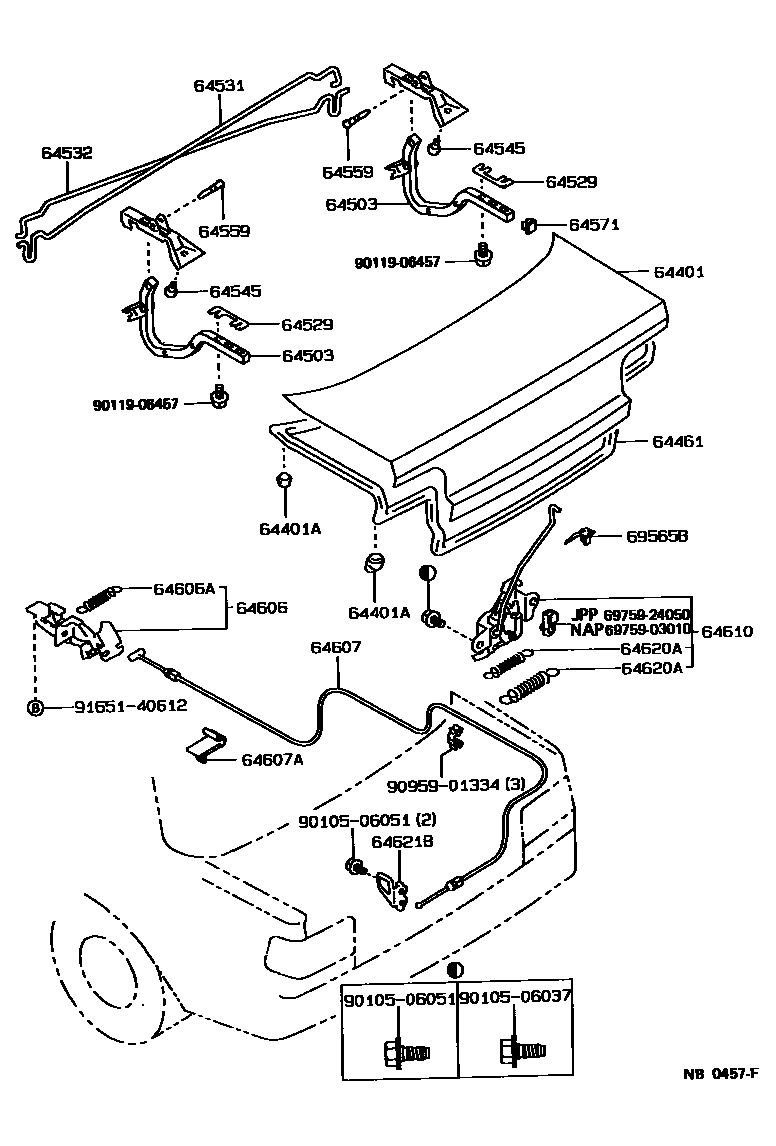

Parts diagram

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

64545CUSHION, LUGGAGE DOOR HINGE

64559PIN, LUGGAGE DOOR HINGE

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

69565BFUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

6975903010SNAP, DOOR LOCK CONTROL LINK, NO.1

6975924050SNAP, DOOR LOCK CONTROL LINK, NO.1

9010506037

9010506051

9011906457

9095901334

9165140612

25 parts on this diagram · 1 diagram in section

LUGGAGE COMPARTMENT DOOR & LOCK for Toyota COROLLA NAP/SED155

This section contains 25 genuine Toyota parts for the LUGGAGE COMPARTMENT DOOR & LOCK system of the Toyota COROLLA NAP/SED155. Key components include: PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR, CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL), WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR, ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH, SPACER, LUGGAGE COMPARTMENT DOOR HINGE.
