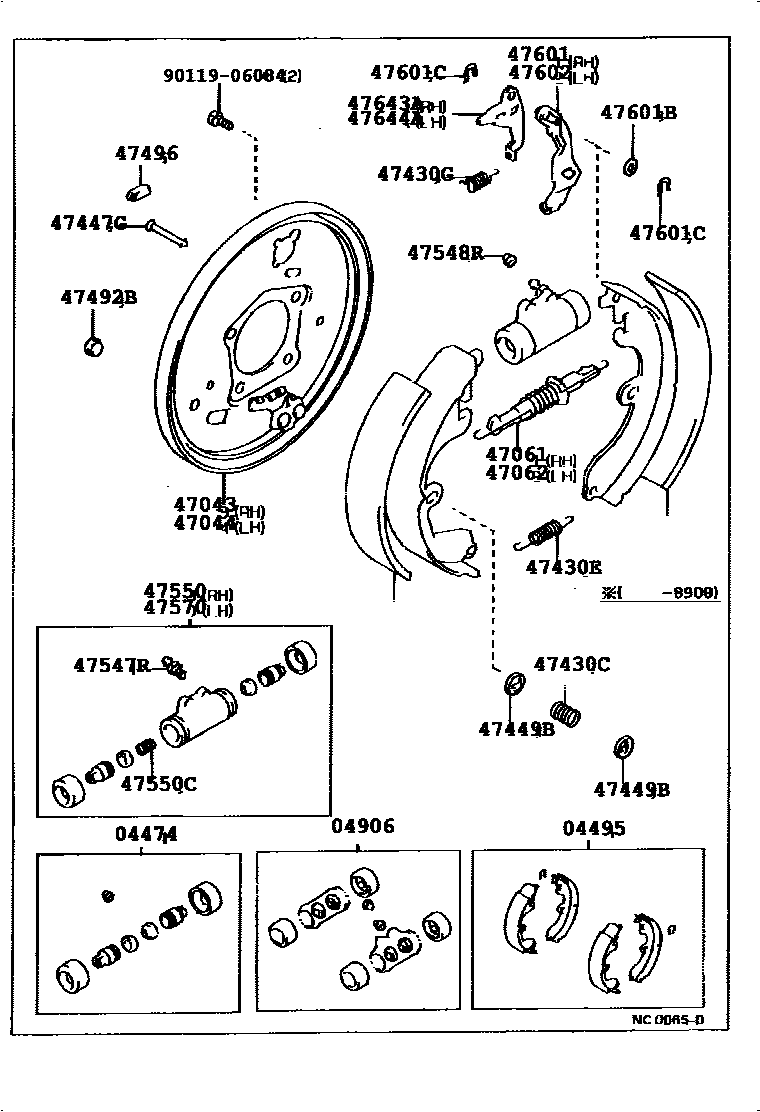

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-16020iAE92198809-198909

04495SHOE KIT, REAR BRAKE

main04495-12101iAE92198809-198909

main04495-12171iAE92198909-199209

04906CUP KIT, REAR WHEEL CYLINDER

main04906-16020iAE92198809-199209

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12070iAE92198809-199209

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12070iAE92198809-199209

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-32010iAE92198809-199209

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-32010iAE92198809-199209

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×2iAE92198809-198909

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iAE92198809-198909

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iAE92198809-198909

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010×2iAE92198809-198909

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030×4iAE92198809-198909

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iAE92198809-198909

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAE92198809-198909

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAE92198809-199209

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iAE92198809-199209

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-16030iAE92198809-199006

main47550-20120iAE92199006-199209

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAE92198809-198909

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-16010iAE92198809-199006

main47570-20030iAE92199006-199209

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iAE92198809-199209

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAE92198809-199209

T=0.3

main90564-08151iAE92198809-199209

T=0.6

main90564-08152iAE92198809-199209

T=0.9

main90564-08172iAE92198809-199209

T=0.2

main90564-08173iAE92198809-199209

T=0.4

main90564-08174iAE92198809-199209

T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iAE92198809-198909

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAE92198809-199209

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-32010iAE92198809-199209

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-32010iAE92198809-199209

9011906084

main90119-06084

26 parts on this diagram · 1 diagram in section
