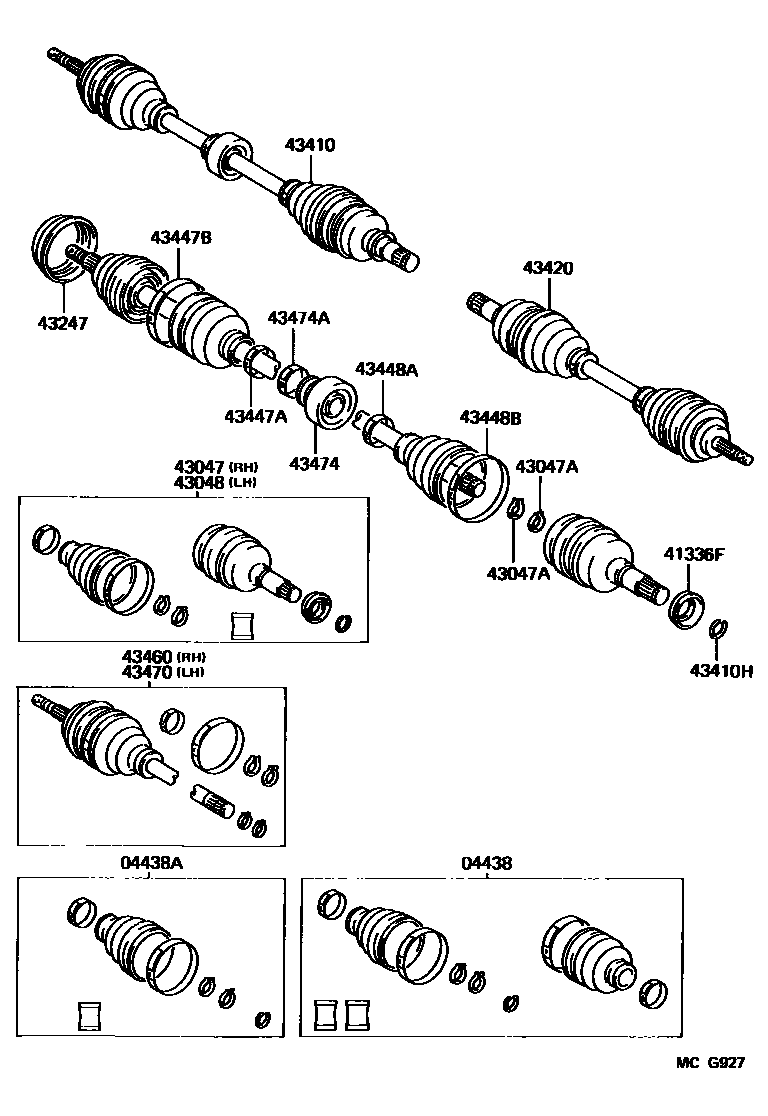

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-01040×2iAE92198809-199009

main04438-01050×2iAE92199009-199209

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-01030×2iAE92198809-199209

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-01010×2iAE92198809-199209

43047JOINT SUB-ASSY, FRONT AXLE INBOARD, RH

main43047-09020iAE92198809-199209

43047ARING, SHAFT SNAP (FOR FRONT AXLE INBOARD JOINT)

main90080-52008×4iAE92198809-199209

43048JOINT SUB-ASSY, FRONT AXLE INBOARD, LH

main43048-09020iAE92198809-199209

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-01010×2iAE92198809-198908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-01020iAE92198809-199009

main43410-01030iAE92199009-199101

main43410-01031iAE92199101-199209

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90080-52015×2iAE92198809-199209

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-01020iAE92198809-199009

main43420-01030iAE92199009-199101

main43420-01031iAE92199101-199209

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90080-46051×2iAE92198809-199209

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90080-46049×2iAE92198809-199209

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90080-46051×2iAE92198809-199209

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90080-46049×2iAE92198809-199209

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09030iAE92198809-199009

main43460-09040iAE92199009-199101

main43460-09041iAE92199101-199209

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-09040iAE92198809-199009

main43470-09050iAE92199009-199101

main43470-09051iAE92199101-199209

43474DAMPER, DRIVE SHAFT

main43474-01010iAE92198809-199209

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90080-46051iAE92198809-199209

18 parts on this diagram · 1 diagram in section
