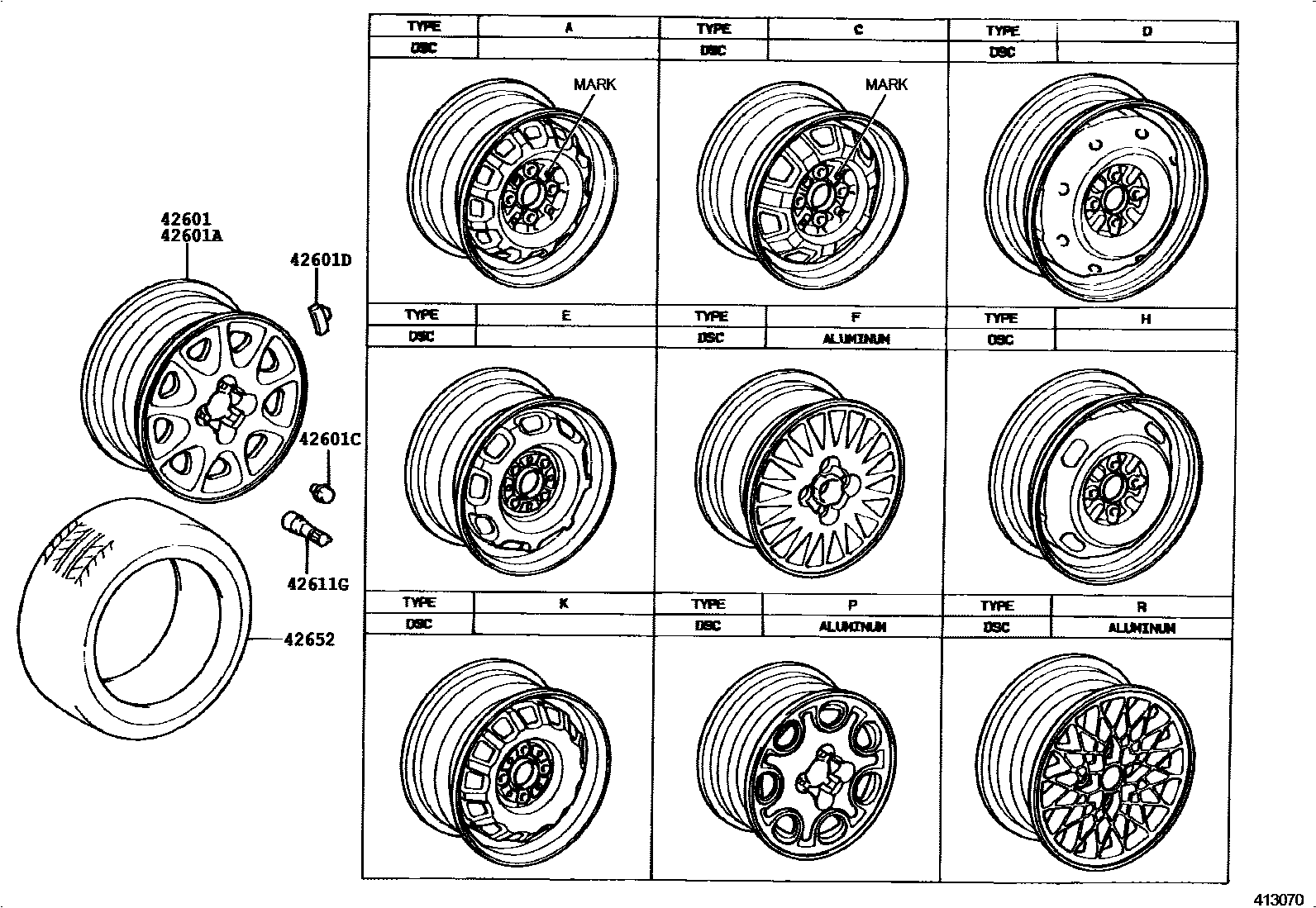

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-02050×4iAE92..STD;AE92..DX..CND199008-199209

13X5J,NO MARK,TYPE A:REFER ILLUST.

main42611-02061×4iAE92..DX,LE198909-199008

13X5J,NO MARK,TYPE C:REFER ILLUST.

main42611-02070×4iAE92..STD;AE92..DX..CND199008-199209

13X5J,MARK FN,TYPE A:REFER ILLUST.

main42611-12850×4iAE92..LE198809-198908

13X5J,ALUMINUM,TYPE F:REFER ILLUST.

main42611-20300×4iAE92..DX,LE199001-199008

13X5J,MARK FD,TYPE C:REFER ILLUST.

main42611-20300-03×4iAE92..DX,LE198909-199001

13X5J,MARK FD,DARK GRAY,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-01060iAE92198809-199209

4TX14,TYPE H:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iAE92..DX,STD198809-199209

main90942-01021×16iAE92..DX..CND; AE92..LE199008-199209

CAP NUT

main90942-01033×16iAE92..LE198809-199209

W(ALUMINUM WHEEL)

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90080-42019iAE92..LE198909-199008

10G

main90080-42020iAE92..LE198909-199008

15G

main90080-42021iAE92..DX,STD;AE92..LE..CND199008-199209

20G

main90080-42022iAE92..DX,STD198809-199008

25G

main90080-42023iAE92..DX,STD198809-199008

30G

main90080-42024iAE92..LE198809-198908

35G

main90080-42025iAE92..DX,STD;AE92..LE..CND199008-199209

40G

main90080-42026iAE92..DX,STD;AE92..LE..CND199008-199209

45G

main90080-42027iAE92..LE198909-199008

50G

main90080-42028iAE92..LE198909-199008

55G

main90080-42029iAE92..LE198809-198908

60G

main90080-42030iAE92..DX,STD;AE92..LE..CND199008-199209

65G

main90080-42031iAE92..DX,STD198809-199008

70G

main90080-42032iAE92..LE198909-199008

75G

main90080-42033iAE92..DX,STD;AE92..LE..CND199008-199209

80G

main90080-42034iAE92..LE198909-199008

5G

main90081-42001iAE92..LE..CND; AE92..LE..USA199008-199209

30G,T=8.0; 30G,T=8.0,W(ALUMINUM WHEEL)

main90081-42002iAE92..LE..CBR; AE92..LE..EFI198908-199008

35G,T=8.0; 35G,T=8.0,W(ALUMINUM WHEEL)

main90081-42003iAE92..LE..CND; AE92..LE..USA199008-199209

40G,T=8.0; 40G,T=8.0,W(ALUMINUM WHEEL)

main90081-42004iAE92..LE198809-198908

45G,T=8.0,W(ALUMINUM WHEEL)

main90081-42005iAE92..LE..CBR; AE92..LE..EFI198908-199008

50G,T=8.0; 50G,T=8.0,W(ALUMINUM WHEEL)

main90081-42006iAE92..LE..CND; AE92..LE..USA199008-199209

55G,T=8.0; 55G,T=8.0,W(ALUMINUM WHEEL)

main90081-42007iAE92..LE..CBR; AE92..LE..EFI198908-199008

60G,T=8.0; 60G,T=8.0,W(ALUMINUM WHEEL)

main90081-42008iAE92..LE..CND; AE92..LE..USA199008-199209

65G,T=8.0; 65G,T=8.0,W(ALUMINUM WHEEL)

main90081-42009iAE92..LE..CBR; AE92..LE..EFI198908-199008

70G,T=8.0; 70G,T=8.0,W(ALUMINUM WHEEL)

main90081-42010iAE92..LE..CND; AE92..LE..USA199008-199209

75G,T=8.0; 75G,T=8.0,W(ALUMINUM WHEEL)

main90081-42011iAE92..LE..CBR; AE92..LE..EFI198908-199008

80G,T=8.0; 80G,T=8.0,W(ALUMINUM WHEEL)

main90081-42012iAE92..LE..CBR; AE92..LE..EFI198908-199008

10G,T=8.0; 10G,T=8.0,W(ALUMINUM WHEEL)

main90081-42013iAE92..LE..CND; AE92..LE..USA199008-199209

15G,T=8.0; 15G,T=8.0,W(ALUMINUM WHEEL)

main90081-42014iAE92..LE..CBR; AE92..LE..EFI198908-199008

20G,T=8.0; 20G,T=8.0,W(ALUMINUM WHEEL)

main90081-42015iAE92..LE..CND; AE92..LE..USA199008-199209

25G,T=8.0; 25G,T=8.0,W(ALUMINUM WHEEL)

main90081-42016iAE92..LE..CBR; AE92..LE..EFI198908-199008

5G,T=6.1; 5G,T=6.1,W(ALUMINUM WHEEL)

main90942-03194iAE92..DX,STD;AE92..LE..CND199204-199209

7.5G,T=7.5

main90942-03195iAE92..DX,STD;AE92..LE..CND199204-199209

12.5G,T=7.5

main90942-03203iAE92..DX,STD;AE92..LE..CND199204-199209

17.5G,T=9.5

main90942-03204iAE92..DX,STD;AE92..LE..CND199204-199209

22.5G,T=9.5

main90942-03205iAE92..DX,STD;AE92..LE..CND199204-199209

27.5G,T=9.5

main90942-03206iAE92..DX,STD;AE92..LE..CND199204-199209

32.5G,T=9.5

main90942-03207iAE92..DX,STD;AE92..LE..CND199204-199209

37.5G,T=9.5

main90942-03208iAE92..LE..CND; AE92..LE..USA199204-199209

7.5G,T=6.1; 7.5G,T=6.1,W(ALUMINUM WHEEL)

main90942-03209iAE92..LE..CND; AE92..LE..USA199204-199209

12.5G,T=7.0; 12.5G,T=7.0,W(ALUMINUM WHEEL)

main90942-03210iAE92..LE..CND; AE92..LE..USA199204-199209

17.5G,T=8.0; 17.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03211iAE92..LE..CND; AE92..LE..USA199204-199209

22.5G,T=8.0; 22.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03212iAE92..LE..CND; AE92..LE..USA199204-199209

27.5G,T=8.0; 27.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03213iAE92..LE..CND; AE92..LE..USA199204-199209

32.5G,T=8.0; 32.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03214iAE92..LE..CND; AE92..LE..USA199204-199209

37.5G,T=8.0; 37.5G,T=8.0,W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×5iAE92..DX..CND199010-199209

42652TIRE

main42652-02040×4iAE92..LE;AE92..DX..EFI198809-199112

P175/70R13

6 parts on this diagram · 2 diagrams in section
