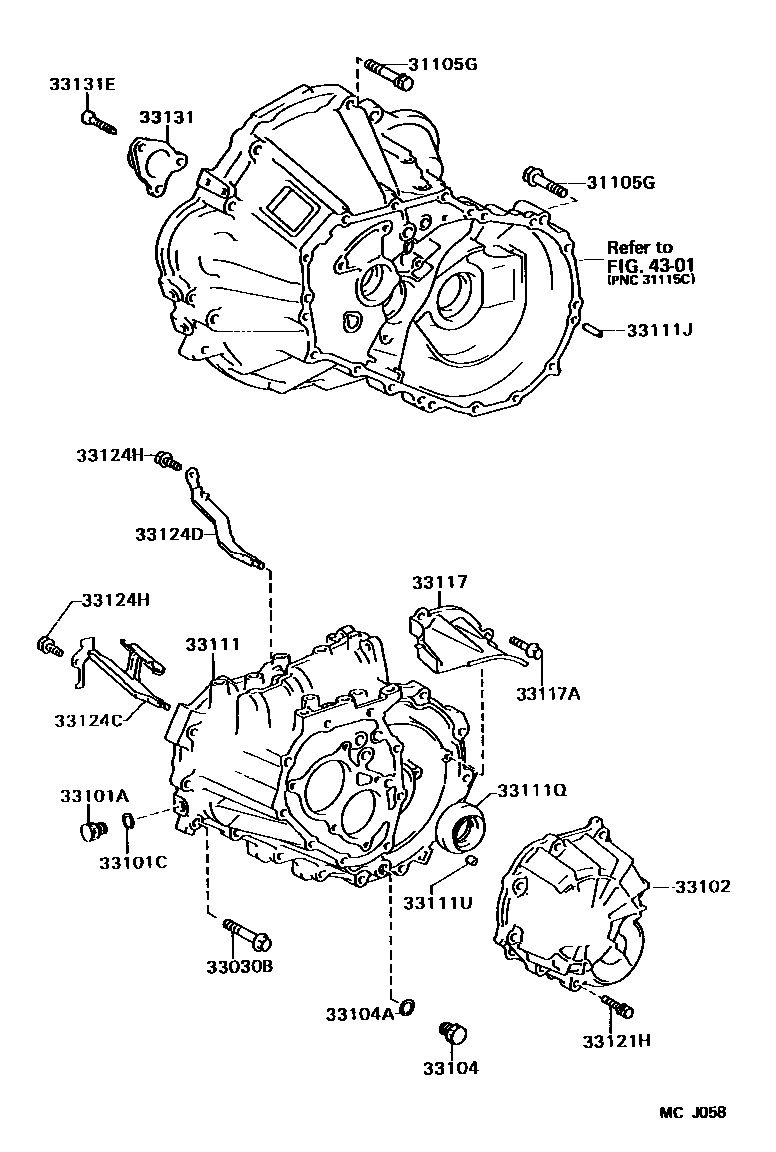

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iAE92..5F..DX198809-198811

*10-1.25PX43-26

main90119-12042iAE92..5F198811-199209

*12-1.25PX75-30

main90119-12168×2iAE92..5F..DX198809-198811

*12-1.25PX55-30

main91611-61025iAE92..5F..DX198809-198811

*10-1.25PX25-25

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064×16iAE92..5F198809-198904

*8-1.25PX51-28

main90105-08086×3iAE92..5F198904-199209

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE92..5F198809-199209

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAE92..5F198809-199209

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12020iAE92..5F198809-199105

main33102-12021iAE92..5F199105-199209

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE92..5F198809-199209

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE92..5F198809-199209

33111CASE, MANUAL TRANSMISSION

main33111-16040iAE92..5F198809-199209

main33111-16041iAE92..5F198809-199107

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iAE92..5F198809-199209

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAE92..5F198809-199108

main90311-34017iAE92..5F199202-199209

main90311-34018iAE92..5F199108-199202

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iAE92..5F198809-199209

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-01050iAE92..5F198909-199009

*86

main33117-12011iAE92..5F..CBR198811-199009

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAE92..5F..DX198809-198811

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main91611-60835×9iAE92..5F198809-199209

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAE92..5F198809-199209

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAE92..5F198809-199209

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820×2iAE92..5F198809-199209

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAE92..5F198809-199209

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028×3iAE92..5F198809-199209
