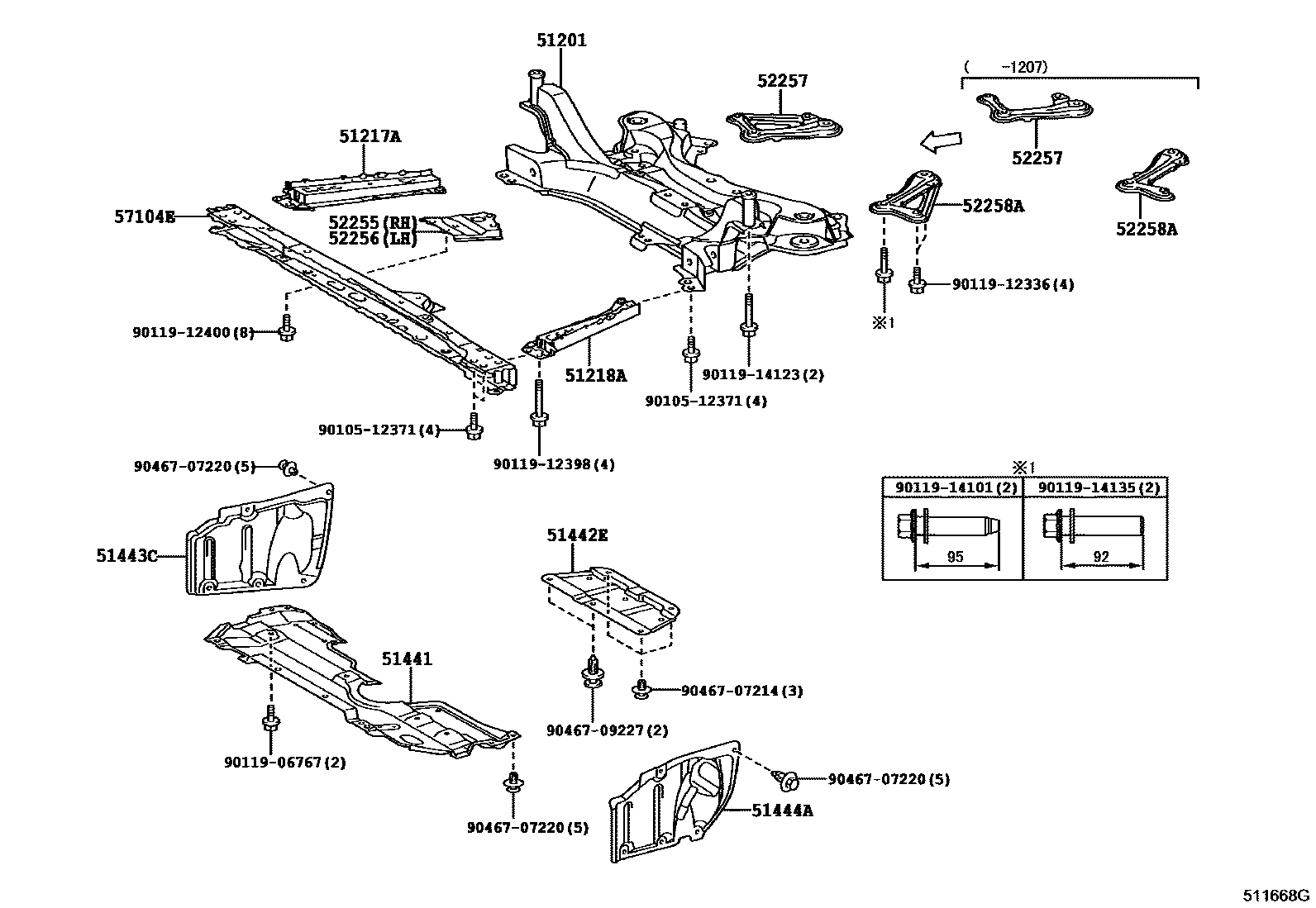

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iAZE151200703-201003

main51201-12442iAZE151201211

sub51201-78010

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-12010iAZE151200703-201003

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-12010iAZE151200703-201003

51441COVER, ENGINE UNDER, NO.1

main51441-12270iAZE151200703-201003

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iAZE151200703-201003

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iAZE151200703-201003

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iAZE151200703-201003

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iAZE151200703-201003

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iAZE151200703-201003

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-12010iAZE151200703-200803

main52257-12011iAZE151200804-201003

main52257-21040iAZE151201208

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-12010iAZE151200703-200803

main52258-12011iAZE151200804-201003

main52258-21040iAZE151201208

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iAZE151200703-201003

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

9011914135

main90119-14135

9046707214

main90467-07214

9046707220

main90467-07220

9046709227

main90467-09227

23 parts on this diagram · 1 diagram in section
