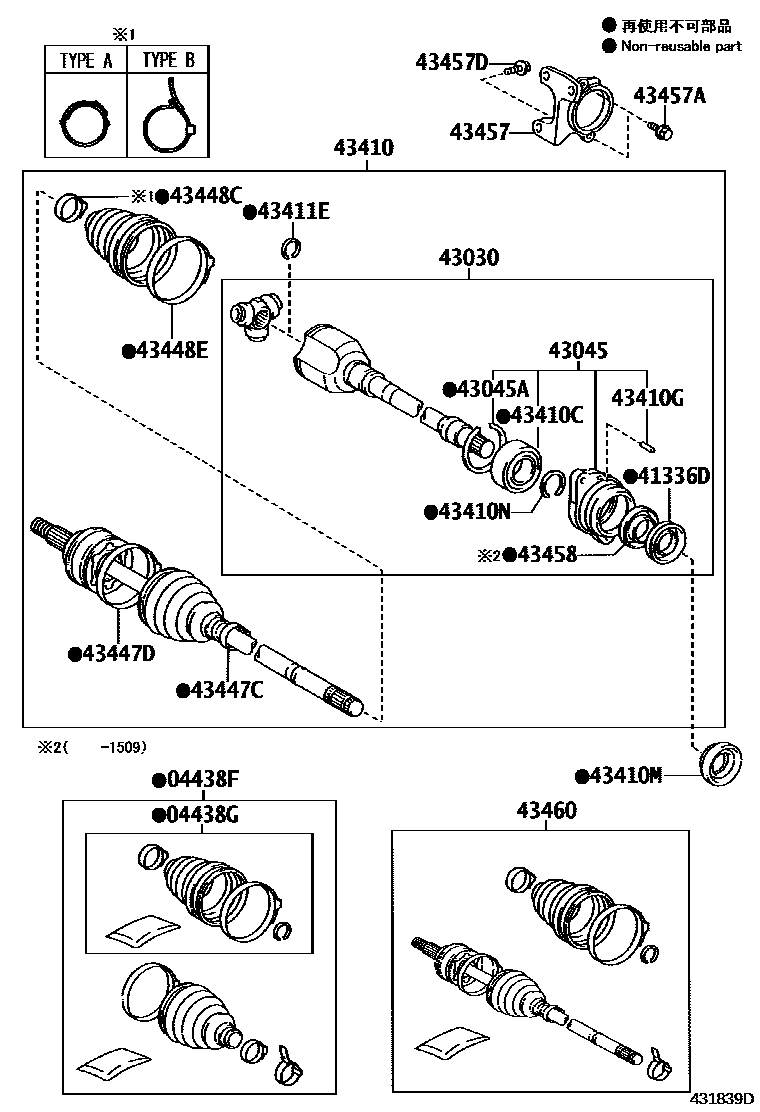

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-44050iAZE151201003-201512

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-42180iAZE151200703-201003

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iAZE151200703-201003

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-44021iAZE151200703-201003

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iAZE151200703-201003

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iAZE151200703-201003

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12820iAZE151201003

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41003iAZE151201003

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iAZE151200703-201003

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40030iAZE151..MTM201003-201102

main90311-40031iAZE151..ATM201310-201512

*345

main90311-40036iAZE151..MTM201102-201512

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iAZE151201003

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iAZE151200703-201003

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iAZE151200703-201003

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAZE151200703-201003

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iAZE151200703-201003

TYPE A:REFER ILLUST.

main90949-01559iAZE151200703-201003

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iAZE151201003

43457BRACKET, DRIVE SHAFT BEARING

main43457-42010iAZE151..MTM200703-201003

main43457-42090iAZE151..ATM200703-201003

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iAZE151201003

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iAZE151200703-201003

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iAZE151200703-201003

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-49645iAZE151200703-201003

21 parts on this diagram · 2 diagrams in section
