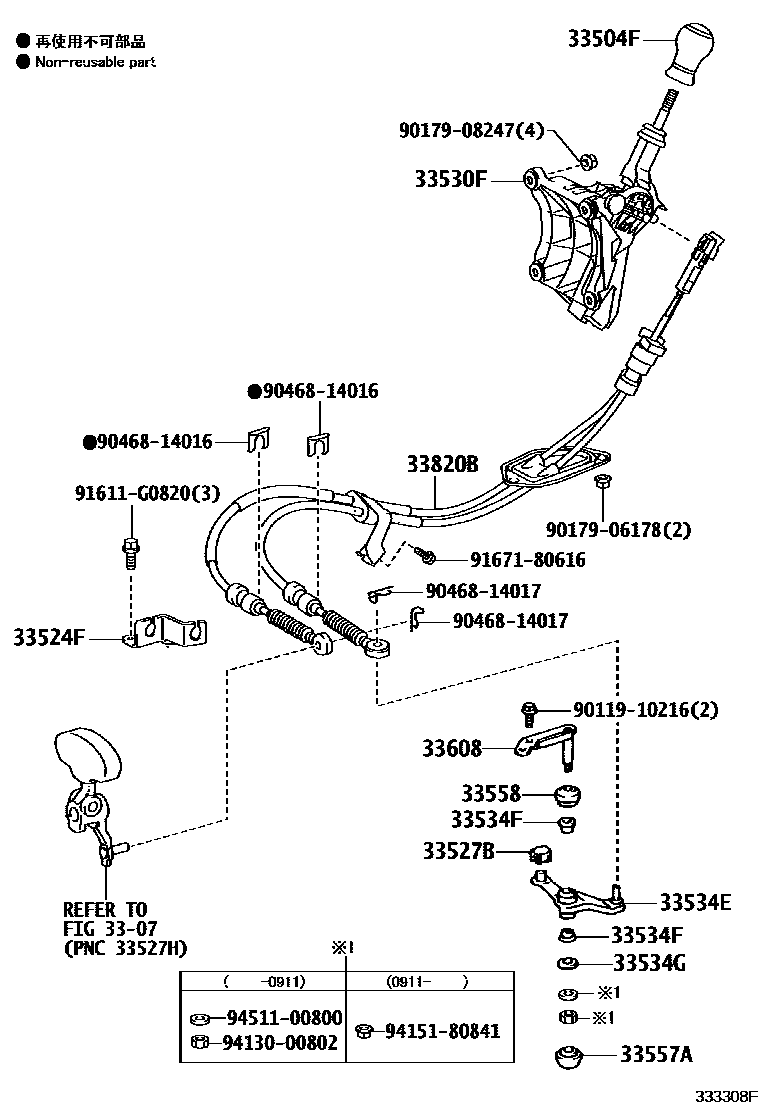

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12300-B1iAZE151..MTM200703-201512

DK.GRAY,TRIM1#

main33504-12430-B0iAZE151..ATM200703-201512

DK.GRAY,TRIM1#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-28020iAZE151..MTM200703-201003

33527BBUSH (FOR CONTROL SHIFT LEVER)

main33557-33010iAZE151..MTM200703-201003

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12A00iAZE151..MTM200703-201003

33534ECRANK, SELECTING BELL, NO.2

main33534-28090iAZE151..MTM200703-201003

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iAZE151..MTM200703-201003

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAZE151..MTM200703-201003

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iAZE151..MTM200703-201003

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iAZE151..MTM200703-201003

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-12031iAZE151..MTM200703-201003

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-12D50iAZE151..MTM200703-201003

main33820-12D80iAZE151..ATM200703-201003

9011910216

main90119-10216

9017906178

main90179-06178

9017908247

main90179-08247

9046814016

main90468-14016

9046814017

main90468-14017

91611G0820

main91611-G0820

9167180616

main91671-80616

9413000802

main94130-00802

9415180841

main94151-80841

9451100800

main94511-00800

22 parts on this diagram · 3 diagrams in section
