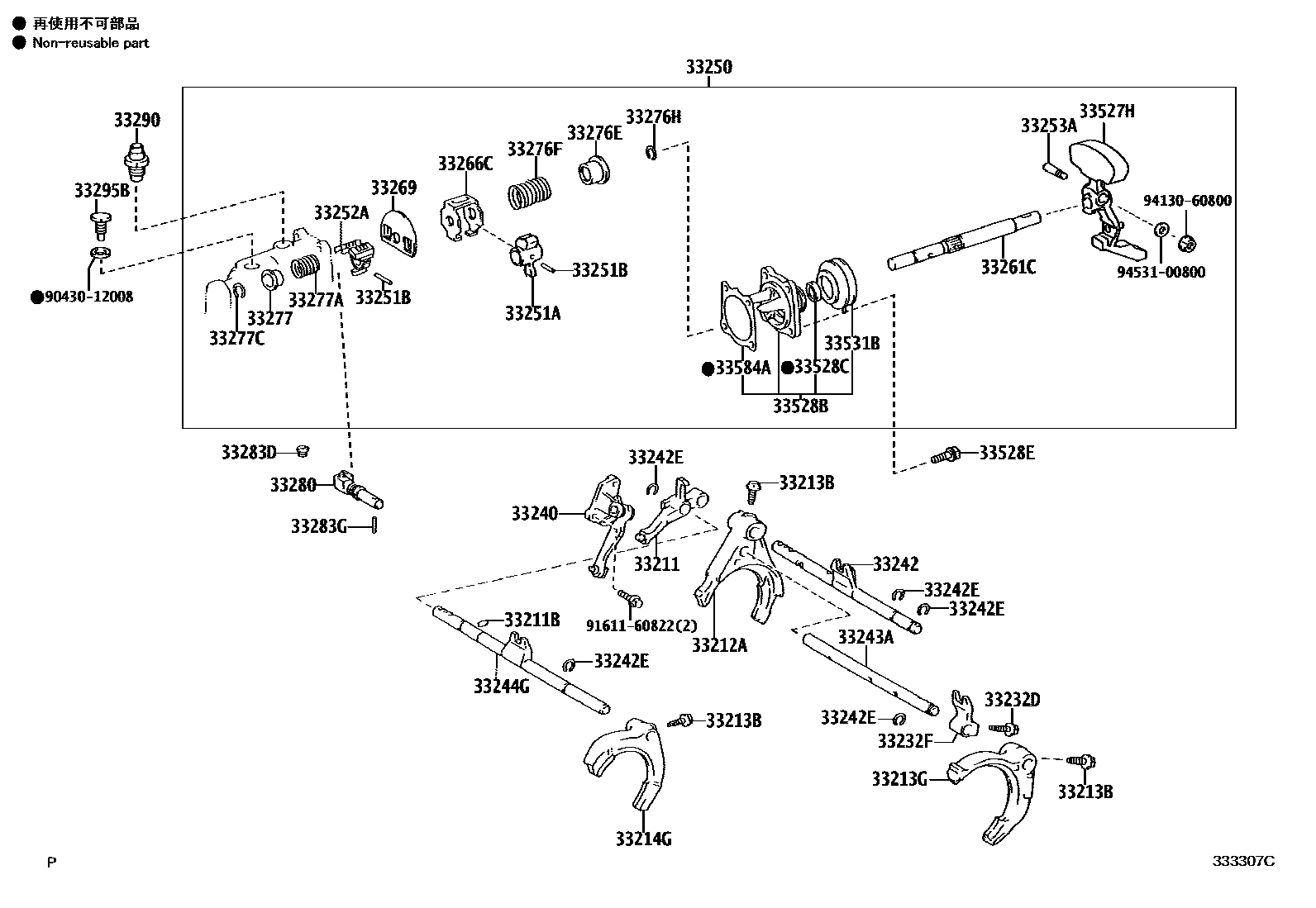

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33211BROLLER(FOR REVERSE SHIFT FORK)
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33232DBOLT (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244GSHAFT, GEAR SHIFT FORK, NO.3
33250SHAFT ASSY, SHIFT & SELECT LEVER
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33266CPLATE, SHIFT INTERLOCK
33269COVER, SHIFT INTERLOCK PLATE
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277CRING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
33295BPIN, SHIFT GATE
33527HLEVER, CONTROL SHIFT
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9043012008
main90430-12008
9161160822
main91611-60822
9413060800
main94130-60800
9453100800
main94531-00800
42 parts on this diagram · 1 diagram in section
