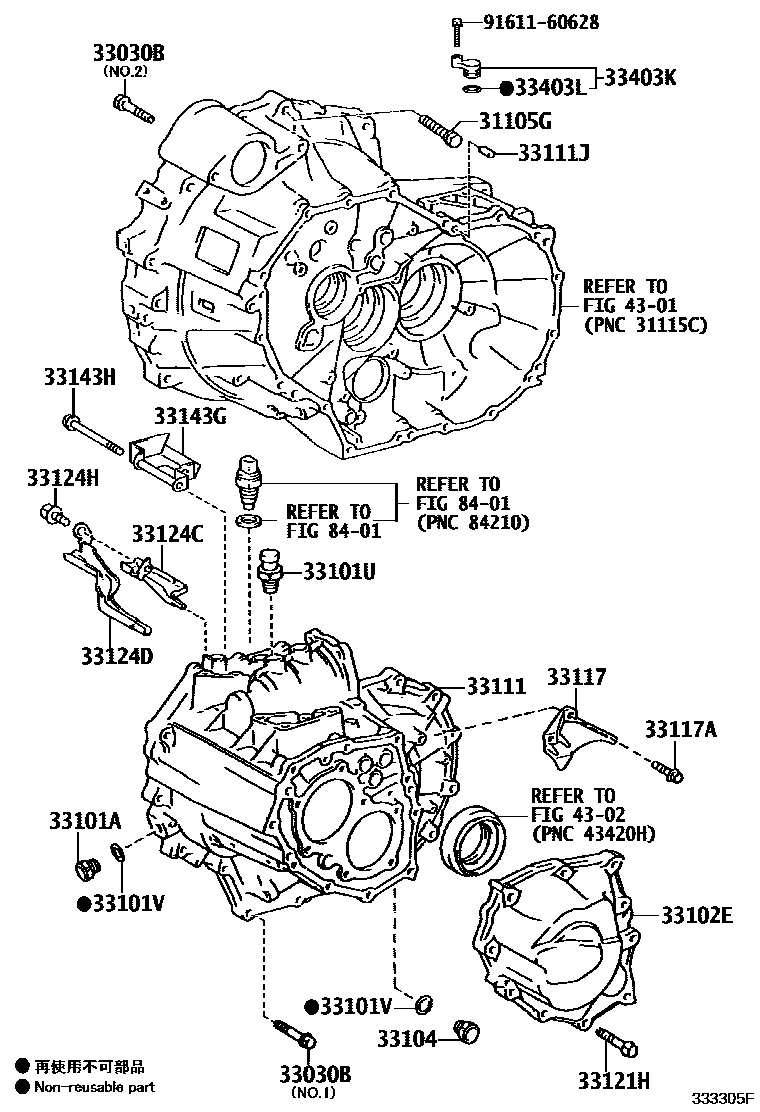

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-12147i200703-201003

*12-1.25PX74.5-25

main90119-12252×2i201003

*12-1.25PX60-30

main91512-61060×2i200703-201003

*10-1.25PX60-30

main91512-61065i200703-201003

*10-1.25PX65-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×14i201003

*8-1.25PX45-27.5,NO.1

main90105-08126×3i200911-201003

*8-1.25PX45-27.5,NO.2

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033i200703-201003

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133i200703-201003

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008×2i200703-201003

33102ECOVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-33012i200703-201003

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i200703-201003

33111CASE, MANUAL TRANSMISSION

main33101-42040i200703-201003

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6i200703-201003

L=23,OD=8

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33107-20010i200703-201003

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main91641-H0820×2i200703-201003

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273×10i200703-201003

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-28050i200703-201003

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-28060i200703-201003

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830×2i200703-201003

33143GBAFFLE, TRANSMISSION OIL

main33143-42010i200703-201003

33143HBOLT(FOR TRANSMISSION OIL BAFFLE)

main90119-08439i200703-201003

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230i200703-201003

33403LRING, O

main96711-24018i200703-201003

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160628

main91611-60628

23 parts on this diagram · 1 diagram in section
