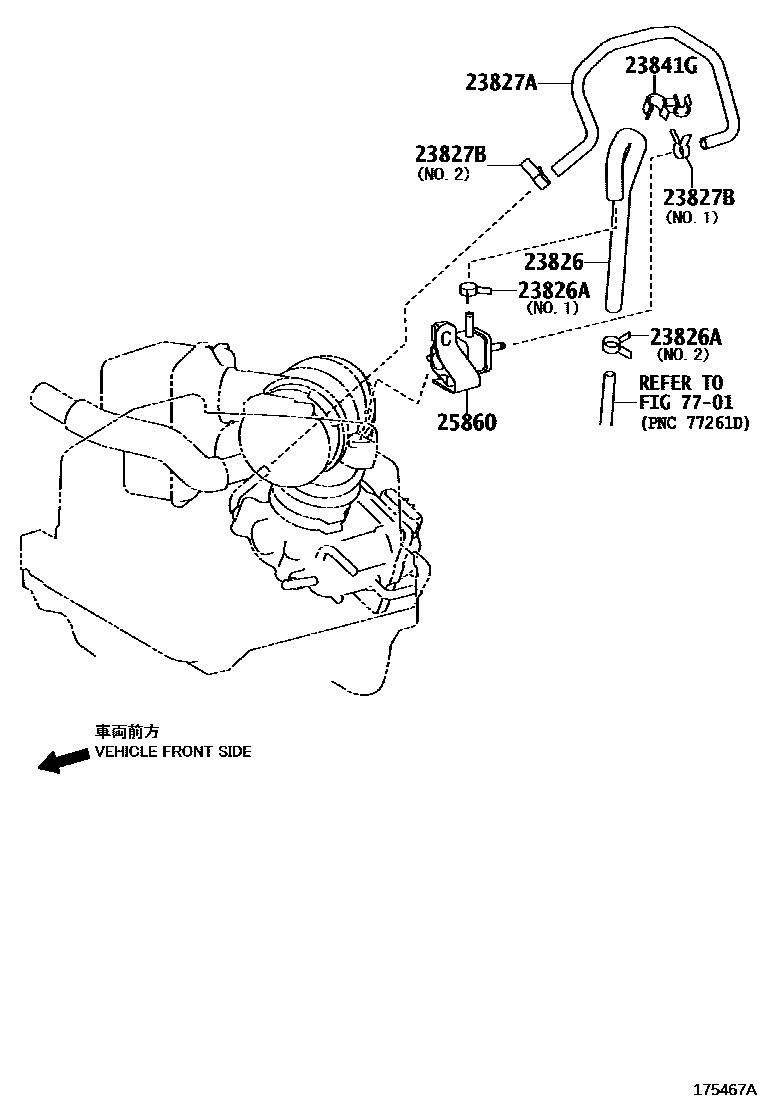

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28380i2AZFE..AZE151200703-201512

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i2AZFE..AZE151200703-201512

NO.1

main96136-41501i2AZFE..AZE151200703-201512

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28320i2AZFE..AZE151200703-201003

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51000i2AZFE..AZE151200703-201003

NO.2

main96132-51100i2AZFE..AZE151200703-201003

NO.1

23841GCLAMP, FUEL HOSE

main23841-28050i2AZFE..AZE151200703-201003

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28170i2AZFE..AZE151200703-201003

7701

7 parts on this diagram · 1 diagram in section
