STANDARD TOOL

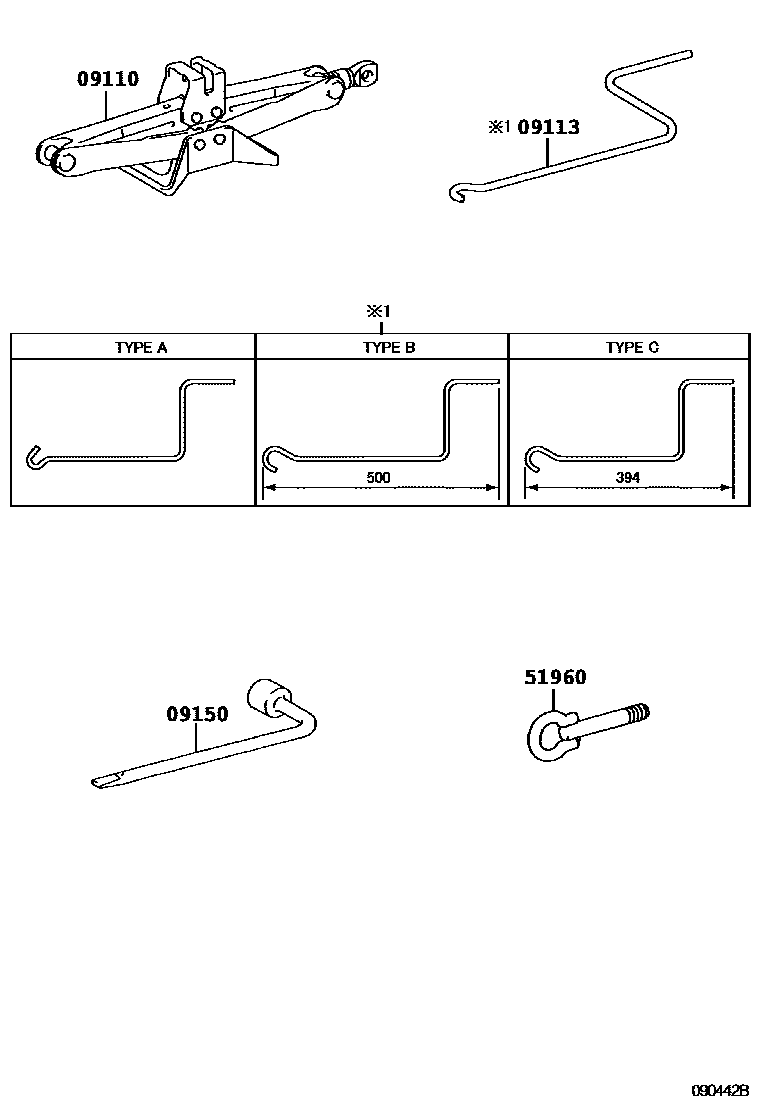

Parts diagram
09110JACK ASSY
main09111-12160i200703-200712
sub09111-12210
main09111-12210i200909-201009
sub09111-12230
main09111-12230i201010-201107
main09111-47010i200712-200908
sub09111-52060
main09111-52060i201107
09113HANDLE, JACK
main09113-20040i200703-201107
TYPE A:REFER ILLUST.
sub09113-20050
main09113-20050i201110
TYPE C:REFER ILLUST.
main09113-52010i200703-201109
TYPE B:REFER ILLUST.
main09113-52040i201108-201110
TYPE C:REFER ILLUST.
sub09113-20050
09150WRENCH, HUB NUT BOX
main09150-35070i200703-201003
51960HOOK ASSY, FRONT
main51960-28020i200703-201003

4 parts on this diagram · 1 diagram in section
