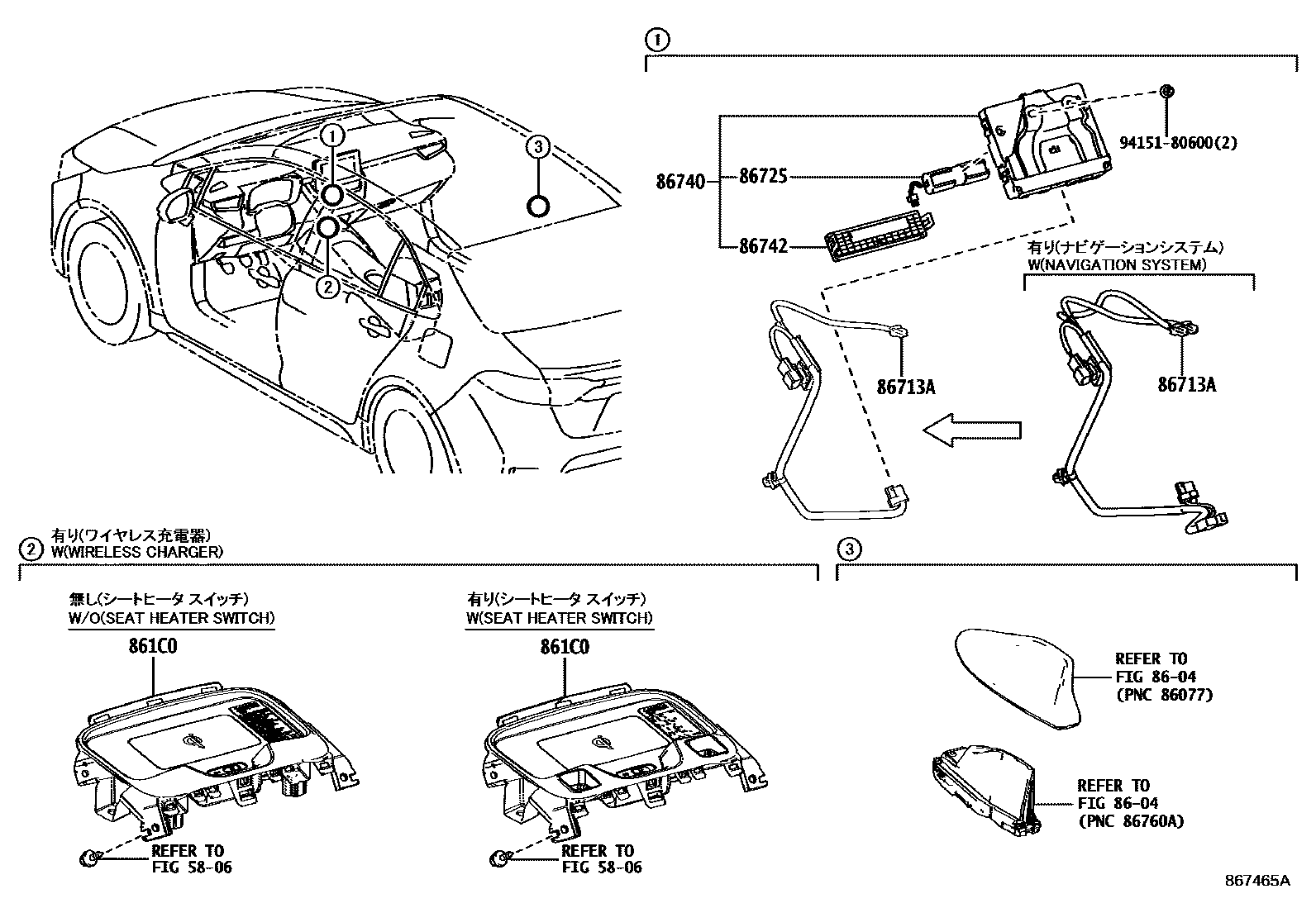

TELEPHONE & MAYDAY
5806CONSOLE BOX & BRACKET
8604ANTENNA
861C0CRADLE ASSY, MOBILE WIRELESS CHARGER
SEAT COVER MATERIAL-LEATHER&WIRELESS CHARGER-WITH
WIRELESS CHARGER-WITH
WIRELESS CHARGER-WITH
86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)
main86713-12060iMZEA12,ZRE212,ZWE213..(L,S)..USA; MZEA12,ZRE212,ZWE213..(L,S,X,Y)..USA; MZEA12,ZRE212,ZWE213..USA; ZRE212..D; ZWE21#..CND202004-202208
AUDIO-8INCH 6SPEAKER; GUAM,SAIPAN SPEC&AUDIO-7INCH 6SPEAKER; GUAM,SAIPAN SPEC&AUDIO-8INCH 6SPEAKER; HAWAII SPEC&AUDIO-7INCH 6SPEAKER; HAWAII SPEC&AUDIO-8INCH 6SPEAKER; PUERTO RICO SPEC&AUDIO-7INCH 6SPEAKER; PUERTO RICO SPEC&AUDIO-8INCH 6SPEAKER
main86713-12010iMZEA12,ZRE212,ZWE211..USA; MZEA12,ZRE212..CVT..(L,S); MZEA12,ZRE212..X,Y; MZEA12..CVT..S; ZWE211..USA201901-201906
AMERICAN SAMOA SPEC; AMERICAN SAMOA SPEC&AUDIO-8INCH 6SPEAKER; AMERICAN SAMOA SPEC&AUDIO-8INCH 6SPEAKER; AMERICAN SAMOA SPEC&AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER; AMERICAN SAMOA SPEC&WITH(SMART ENTRY & PANIC ALARM)&AUDIO-8INCH 6SPEAKER; AMERICAN SAMOA SPEC&WITH(SMART ENTRY & PANIC ALARM)&AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
86725BATTERY, MOBILEPHONE
GUAM,SAIPAN SPEC
main86725-78010iMZEA12,ZRE212,ZWE211..(D,L,S)..USA; MZEA12,ZRE212,ZWE211..USA; ZWE211..CND201901-202004
AUDIO-8INCH 6SPEAKER; GUAM,SAIPAN SPEC; HAWAII SPEC; PUERTO RICO SPEC
86740TRANSCEIVER ASSY, TELEPHONE
main86740-12090iMZEA12,ZRE212,ZWE211..(D,L,S)..USA; MZEA12,ZRE212,ZWE211..USA; ZWE211..CND201901-202003
AUDIO-8INCH 6SPEAKER; GUAM,SAIPAN SPEC; HAWAII SPEC; PUERTO RICO SPEC
86742COVER, TRANSCEIVER
main86742-06020iMZEA12,ZRE212,ZWE213..(L,S)..USA; MZEA12,ZRE212,ZWE213..(L,S,X,Y)..USA; MZEA12,ZRE212,ZWE213..USA; ZRE212..D; ZWE21#..CND202004-202208
AUDIO-8INCH 6SPEAKER; GUAM,SAIPAN SPEC&AUDIO-7INCH 6SPEAKER; GUAM,SAIPAN SPEC&AUDIO-8INCH 6SPEAKER; HAWAII SPEC&AUDIO-7INCH 6SPEAKER; HAWAII SPEC&AUDIO-8INCH 6SPEAKER; PUERTO RICO SPEC&AUDIO-7INCH 6SPEAKER; PUERTO RICO SPEC&AUDIO-8INCH 6SPEAKER
AMERICAN SAMOA SPEC
9415180600
main94151-80600
8 parts on this diagram · 2 diagrams in section
