FRONT SEAT & SEAT TRACK

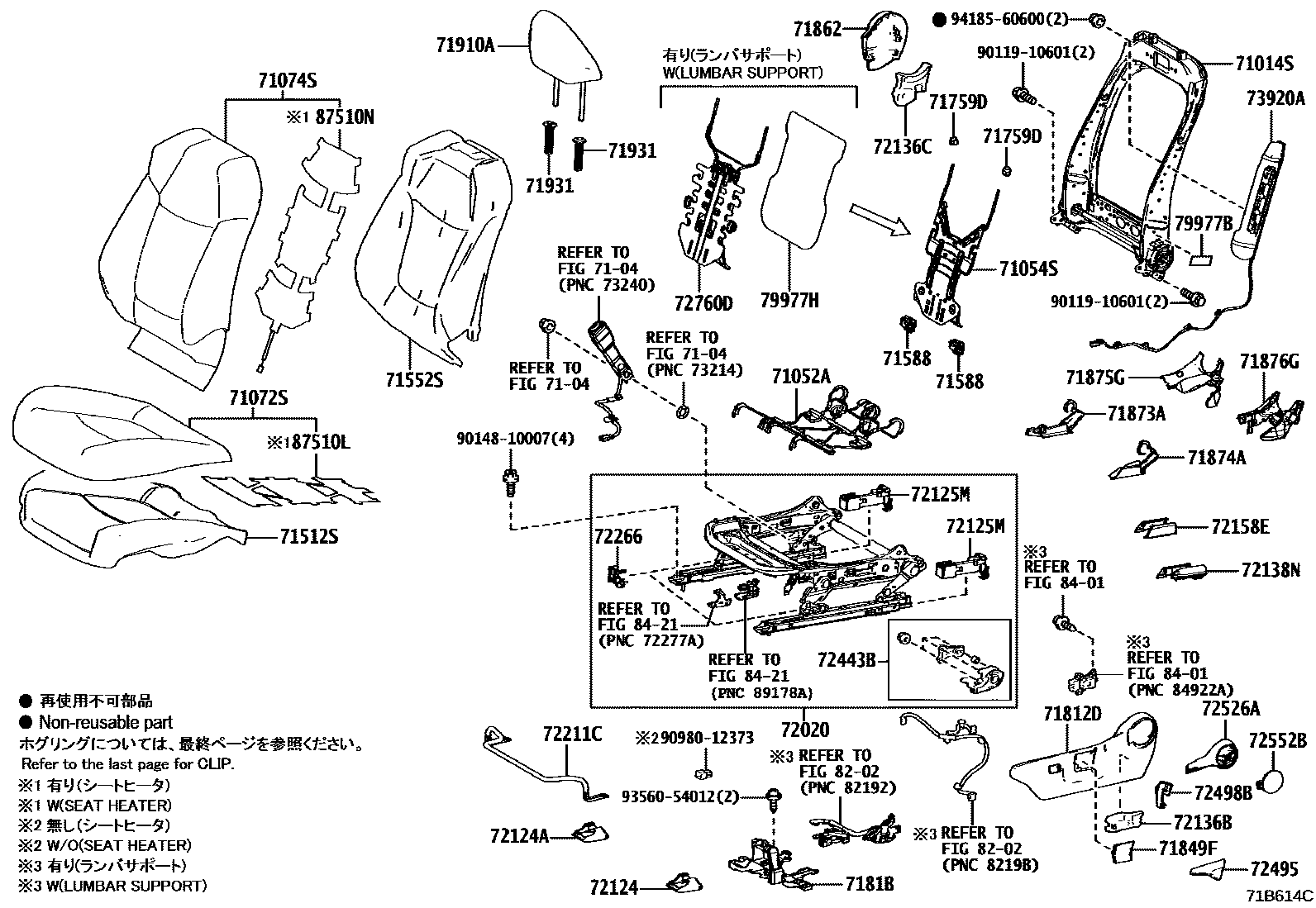

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-12660i202004-202208
main71014-12670i202004-202208
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71014-42190i201901-202004
main71014-42210i201901-202004
SEAT COVER MATERIAL-LEATHER; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER); SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER)
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-47090i202209
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-47050i202409
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-12Y90-B1i202004-202208
LT.GRAY/BLACK,TRIM1#
main71072-12Y90-B3i202003-202004
DK.GRAY/BLACK,TRIM2#
main71072-12Y90-C0i201901-202003
DK. GRAY,TRIM2#
main71072-12Y90-C1i201901-202003
LT. GRAY,TRIM1#
main71072-12Z00-A1supersedes 71072-12Z10-C3i202004-202106
FROMAGE/BLACK,TRIM0#
main71072-12Z00-B2supersedes 71072-12Z10-C5i202004-202208
LT.GRAY/BLACK,TRIM1#
main71072-12Z10-A1i202004-202208
FROMAGE/BLACK,TRIM0#
main71072-12Z10-B2i202004-202208
LT.GRAY/BLACK,TRIM1#
main71072-12Z10-C1i202004-202208
BLACK/GRAY DOT/BLACK,TRIM2#
main71072-1AB80-A4supersedes 71072-12Z00-C2i202004-202208
FROMAGE/BLACK/SHELL,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),FROMAGE/BLACK/SHELL,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE/BLACK/SHELL,TRIM0#
main71072-1AB80-C4supersedes 71072-12Z00-C3i202004-202208
BLACK/BLACK/SHELL,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK/BLACK/SHELL,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/SHELL,TRIM2#
main71072-1AB80-C5i201901-202003
FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER,FROMAGE,TRIM0#
main71072-1AB80-C6i201901-202003
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71072-1AC20-C2i201901-202003
BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLACK,TRIM20
main71072-1AC20-C3i202003-202004
BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLACK,TRIM20
main71072-1AC20-J2i201901-202003
BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLUE,TRIM21
main71072-1AC20-J3i202003-202004
BLACK/BLUE/BLACK,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE/BLACK,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLUE/BLACK,TRIM21
main71072-1AM30-A1i202409
FROMAGE,TRIM0#
main71072-1AM30-C1i202409
BLACK,TRIM2#
main71072-1AM40-B0i202409
SE GRAY,TRIM22,23
main71072-1AM40-C1i202409
BLACK,TRIM26
main71072-1AM80-C1i202209-202409
BLACK/BLACK,TRIM20
main71072-1AM80-C2i202409
BLACK/RED,TRIM26
main71072-1AQ30-C1i202209-202409
BLACK/ORCHID BROWN,TRIM0#
main71072-1AQ30-C2i202409
BLACK/BLACK,TRIM2#
main71072-1AQ30-C3i202209
BLACK/LT.GRAY,TRIM1#
main71072-1AQ40-C1i202409
BLACK/BLACK,TRIM2#
main71072-1AQ40-C2i202209-202308
BLACK/LT.GRAY,TRIM1#
main71072-1AQ50-B0i202209-202409
SE GRAY,TRIM22,23
main71072-1AQ50-C1i202209-202409
BLACK,TRIM26
main71072-12Z00-C0supersedes 71072-12Z10-C4i202003-202004
BLACK/GRAY DOT/BLACK,TRIM2#; SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY DOT/BLACK,TRIM2#
main71072-12Z00-C2supersedes 71072-12Z10-C3i201901-202003
FROMAGE,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#
main71072-12Z00-C3supersedes 71072-12Z10-C4i201901-202003
BALCK,TRIM2#; SEAT HEATER-WITH(DRIVER & PASSENGER),BALCK,TRIM2#
main71072-12Z00-C4supersedes 71072-12Z10-C5i201901-202003
LT. GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#
main71072-1AB90-A4supersedes 71072-12Z10-C3i202003-202004
SEAT COVER MATERIAL-LEATHER,FROMAGE/BLACK/SHELL,TRIM0#
main71072-1AB90-C4supersedes 71072-12Z10-C4i202003-202004
SEAT COVER MATERIAL-LEATHER,BLACK/BLACK/SHELL,TRIM2#
main71072-1AB90-C5supersedes 71072-12Z10-C3i201901-202003
SEAT COVER MATERIAL-LEATHER,FROMAGE,TRIM0#
main71072-1AB90-C6supersedes 71072-12Z10-C4i201901-202003
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71072-1AC00-B2supersedes 71072-1AC10-B2i201901-202003
SEAT HEATER-WITH(DRIVER & PASSENGER),SE GRAY,TRIM1#,23
main71072-1AC00-B3supersedes 71072-1AC10-B3i202003-202004
SEAT HEATER-WITH(DRIVER & PASSENGER),SE GRAY/BLACK/GRAY,TRIM23
main71072-1AC00-C1supersedes 71072-1AC10-C2i201901-202003
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM20,22
main71072-1AC00-C2supersedes 71072-1AC10-C2i202003-202004
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/BLUE,TRIM20,22
main71072-1AC30-C2i201901-202003
SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AC30-C3i202003-202004
SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71072-1AC30-J2i201901-202003
SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71072-1AC30-J3i202003-202004
SEAT COVER MATERIAL-LEATHER,BLACK/BLUE/BLACK,TRIM21
main71072-1AJ40-A1supersedes 71072-12Z10-C3i202003-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE/BLACK,TRIM0#; SEAT LUMBAR SUPPORT-ELECTRICAL,FROMAGE/BLACK,TRIM0#
main71072-1AJ40-B0supersedes 71072-12Z10-C5i202003-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM1#; SEAT LUMBAR SUPPORT-ELECTRICAL,LT.GRAY/BLACK,TRIM1#
main71072-1AJ40-C1supersedes 71072-12Z00-C3i202003-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY DOT/BLACK,TRIM2#; SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK/GRAY DOT/BLACK,TRIM2#
main71072-1AJ40-C2supersedes 71072-12Z10-C3i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/FROMAGE,TRIM0#; SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK/FROMAGE,TRIM0#
main71072-1AJ40-C3supersedes 71072-12Z10-C4i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM2#; SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK/BLACK,TRIM2#
main71072-1AJ40-C4supersedes 71072-12Z00-C4i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT. GRAY,TRIM1#; SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK/LT. GRAY,TRIM1#
main71072-1AJ50-B1supersedes 71072-1AC10-B2i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),SE GRAY,TRIM1#,23
main71072-1AJ50-B2supersedes 71072-1AC10-B3i202003-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),SE GRAY/BLACK/GRAY,TRIM23
main71072-1AJ50-C1supersedes 71072-1AC10-C2i201901-202003
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM20,22
main71072-1AJ50-C2supersedes 71072-1AC10-C2i202003-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/BLUE,TRIM20,22
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-1AA60-B3i201901-202004
LT. GRAY,TRIM1#
main71074-1AA60-C2i201901-202004
DK. GRAY,TRIM2#
main71074-1AC00-B4supersedes 71074-1AC10-B4i201901-202004
LT. GRAY,TRIM1#; SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#; SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#
main71074-1AC01-B4i202004-202208
GRAY,TRIM1#
main71074-1AC01-E5i202004-202106
ORCHID BROWN,TRIM0#
main71074-1AC11-B4i202004-202208
GRAY,TRIM1#
main71074-1AC11-C5i202004-202208
BLACK,TRIM2#
main71074-1AC11-E5i202004-202208
ORCHID BROWN,TRIM0#
main71074-1AC20-C5supersedes 71074-1AC00-C5i201901-202004
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71074-1AC20-E5supersedes 71074-1AC00-E5i201901-202004
FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,FROMAGE,TRIM0#; SEAT COVER MATERIAL-LEATHER,FROMAGE,TRIM0#
main71074-1AC51-B4i202004-202208
SE GRAY,TRIM23
main71074-1AC60-J4i201901-202004
BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLUE,TRIM21
main71074-1AE50-B0i202004-202208
GRAY,TRIM1#
main71074-1AE50-C0i202004-202208
BLACK,TRIM2#
main71074-1AL80-C2i202209
BLACK/BLACK,TRIM2#
main71074-1AL80-C3i202209
BLACK/LT.GRAY,TRIM1#
main71074-1AM30-C0i202209-202409
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71074-1AM30-E0i202209-202409
ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER,ORCHID BROWN,TRIM0#
main71074-1AM31-C1i202409
BLACK,TRIM2#
main71074-1AM31-E1i202409
ORCHID BROWN,TRIM0#
main71074-1AM40-B0i202409
SE GRAY,TRIM22,23
main71074-1AM40-C1i202409
BLACK,TRIM26
main71074-1AM60-C1supersedes 71074-1AM61-C4i202209-202408
BLACK/BLACK,TRIM20
main71074-1AM60-C2supersedes 71074-1AM61-C3i202209-202408
BLACK/RED,TRIM26
main71074-1AM61-C3i202409
BLACK/RED,TRIM26
main71074-1AM61-C4i202409
BLACK/BLACK,TRIM20
main71074-1AP50-C0i202209-202409
BLACK/ORCHID BROWN,TRIM0#
main71074-1AP50-C1i202209-202409
BLACK/BLACK,TRIM2#
main71074-1AP50-C2i202409
BLACK/LT.GRAY,TRIM1#
main71074-1AP60-C0i202209-202409
BLACK/BLACK,TRIM2#
main71074-1AP60-C1i202209-202308
BLACK/LT.GRAY,TRIM1#
main71074-1AP80-B0i202209-202409
SE GRAY,TRIM22,23
main71074-1AP80-C1i202409
BLACK,TRIM26
main71074-1AC00-C5supersedes 71074-1AC10-C5i201901-202004
BLACK,TRIM2#; SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-1AC00-E5supersedes 71074-1AC10-E5i201901-202004
FROMAGE,TRIM0#; SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#; SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),FROMAGE,TRIM0#
main71074-1AC30-C5supersedes 71074-1AC10-C5i201901-202004
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71074-1AC30-E5supersedes 71074-1AC10-E5i201901-202004
SEAT COVER MATERIAL-LEATHER,FROMAGE,TRIM0#
main71074-1AC40-B4supersedes 71074-1AC50-B4i201901-202004
SEAT HEATER-WITH(DRIVER & PASSENGER),SE GRAY,TRIM1#,23; SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),SE GRAY,TRIM1#,23
main71074-1AC40-C3supersedes 71074-1AC51-C3i201901-202004
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM20,22; SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM20,22
main71074-1AC60-C4i201901-202004
BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLACK,TRIM20
main71074-1AC70-C4i201901-202004
SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71074-1AC70-J4i201901-202004
SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-12450i202004-202208
main71512-12460i202409
main71512-12470i202409
main71512-12530supersedes 71512-12470i202409
main71512-12600i202209-202409
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-12700i202409
main71552-12710i202409
main71552-12760i202409
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71587-47010×2i202409
71759DHOOK, FRONT SEATBACK, NO.2
main71759-50040×2i202004-202208
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-12490-C0supersedes 71812-47130-C1i202409
BLACK,TRIM0#,2#; BLACK,TRIM2#
main71812-33400-C0i202409
BLACK,TRIM2#
main71812-47130-C1i202004-202208
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
main71812-47160-C1i201901-202004
SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,1#,2#; SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2#; SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM0#,1#,2#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-33010i202409
main7181B-47010i202409
71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
main71849-12020-C0i202409
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
main71849-47010-C1i202004-202208
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-47090-C1i201901-202004
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71874-47080i202209
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-47070i202004-202208
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-47080-C1i202409
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-47040-C1i202409
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-12K10-C2×2supersedes 71910-12N00-C2i201901-202001
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71910-12K10-E2×2supersedes 71910-12N00-E2i201901-202001
ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER,ORCHID BROWN,TRIM0#
main71910-12K11-C2×2i202001-202003
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71910-12K11-C3×2i202003-202004
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71910-12K11-C4×2i202209-202409
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71910-12K11-E2×2i202001-202003
ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER,ORCHID BROWN,TRIM0#
main71910-12K11-E3×2i202003-202004
ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT),ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL,ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER,ORCHID BROWN,TRIM0#
main71910-12K11-E4×2i202209-202409
ORCHID BROWN,TRIM0#; SEAT COVER MATERIAL-LEATHER,ORCHID BROWN,TRIM0#
main71910-12K60-B1×2i201901-202003
SE GRAY,TRIM1#,23
main71910-12K60-B2×2i202004-202208
SE GRAY,TRIM23
main71910-12K60-C1×2i201901-202003
BLACK,TRIM20,22
main71910-12K60-C2×2i202003-202004
BLACK,TRIM20,22
main71910-12M90-B0×2i201901-202003
GRAY,TRIM1#
main71910-12M90-B1×2i202003-202004
GRAY,TRIM1#
main71910-12M90-C0×2i201901-202003
BLACK,TRIM2#
main71910-12M90-C1×2i202004-202208
BLACK,TRIM2#
main71910-12N00-B0×2i201901-202003
GRAY,TRIM1#
main71910-12N00-B1×2i202003-202004
GRAY,TRIM1#
main71910-12N00-C2×2i202004-202208
BALCK,TRIM2#
main71910-12N00-E2×2i202004-202208
ORCHID BROWN,TRIM0#
main71910-12N10-C0×2i201901-202001
BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71910-12N10-C1×2i201901-202001
BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71910-12N11-C0×2i202001-202003
BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71910-12N11-C1×2i202001-202003
BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71910-12N11-C2×2i202003-202004
BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM20
main71910-12N11-C3×2i202003-202004
BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-LEATHER,BLACK/BLUE,TRIM21
main71910-12N11-C5×2i202209-202409
BLACK/BLACK,TRIM20
main71910-12N11-C7×2i202209-202409
BLACK/RED,TRIM26
main71910-12N12-C8×2i202409
BLACK/BLACK,TRIM20
main71910-12N12-C9×2i202409
BLACK/RED,TRIM26
main71910-12N20-B0×2i202209
GRAY,TRIM1#
main71910-12N20-C0×2i202209
BLACK,TRIM2#
main71910-12N90-B2×2i202209-202409
SE GRAY,TRIM22,23
main71910-12N90-C2×2i202209-202409
BLACK,TRIM26
main71910-12P40-B0×2i202409
SE GRAY,TRIM22,23
main71910-12P40-C0×2i202409
BLACK / GRAY DOT,TRIM26
main71910-12R40-B0×2i202209-202409
GRAY,TRIM1#
main71910-12R40-C0×2i202209-202409
BLACK,TRIM2#
main71910-12R40-E0×2i202209-202409
ORCHID BROWN,TRIM0#
main71910-12R41-B1×2i202409
GRAY,TRIM1#
main71910-12R41-C1×2i202409
BLACK / GRAY DOT,TRIM2#
main71910-12R41-E1×2i202409
ORCHID BROWN,TRIM0#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-B8×2i202209
W(LOCK),LT.GRAY,TRIM1#
main71930-47050-C5×2i202409
W(LOCK),BLACK,TRIM1#,2#; W(LOCK),BLACK,TRIM2#
main71930-47050-E8×2i201901-202004
W(LOCK),ORCHID BROWN,TRIM0#
main71931-47030-B9×2i202209
W/O(LOCK),LT.GRAY,TRIM1#
main71931-47030-C4×2i202409
W/O(LOCK),BLACK,TRIM1#,2#; W/O(LOCK),BLACK,TRIM2#
main71931-47030-E8×2i202209-202409
W/O(LOCK),ORCHID BROWN,TRIM0#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-33450i202409
main72020-47370i201901-201905
main72020-47371i202004-202208
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-10100i202209
TYPE B
main72123-47060i202409
TYPE A
72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-10100i202209-202409
TYPE B
main72123-47060i202409
TYPE A
72125MCOVER, SEAT TRACK, UPPER NO.3
main72125-47010×2i201901-202004
main72125-47020×2i201901-202004
SEAT COVER MATERIAL-LEATHER; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER); SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER)
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-12090i202209
72136BSPACER, SEAT TRACK, LOWER NO.3
main72136-12110i202209
main72136-33290i202209-202409
SEAT COVER MATERIAL-LEATHER
72136CSPACER, SEAT TRACK, LOWER NO.4
main72136-33300i202209-202409
SEAT COVER MATERIAL-LEATHER
main72136-33340i202004-202208
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72137-47060i202209-202409
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
main72158-47080i202409
72211HANDLE, SEAT TRACK ADJUSTING
main72211-12290i201901-202004
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-47050i202004-202208
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-47010×2i201901-202004
main72265-47020×2i202409
72443BGEAR, VERTICAL ADJUSTER, LH
main72443-47020i201901-201903
main72443-47021i202004-202208
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-12020-C0i202409
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
main72495-47020-C1i202209-202304
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
72498BCOVER, VERTICAL ADJUSTER BRACKET, OUTER
main72498-47020i202409
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-33050-C0i202409
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
72552BCOVER, RECLINING HINGE, LH
main72551-33010-C0i202409
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-33140i202409
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-12090i202004-202208
main73920-12150i202409
79977BFELT, SEATBACK FRAME
main79977-12090i202409
79977HFELT, FRONT SEATBACK, LH
main79977-33030i201901-202004
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER); SEAT LUMBAR SUPPORT-ELECTRICAL; SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER)
main79977-76010i202409
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8421AIR BAG
→ Go to FIG 84-21
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-12390i202004-202208
main87510-12410supersedes 87510-12400i202409
main87510-12420i202409
main87510-12440i202409
main87510-12400i201901-202004
SEAT HEATER-WITH(DRIVER & PASSENGER)
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-12080i201901-202004
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER); SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER); SEAT HEATER-WITH(DRIVER & PASSENGER); SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER)
main87530-12090i202209-202409
main87530-12120i202409
9011910601
main90119-10601
9014810007
main90148-10007
9098012373
main90980-12373
9356054012
main93560-54012
9418560600
main94185-60600

51 parts on this diagram · 14 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
