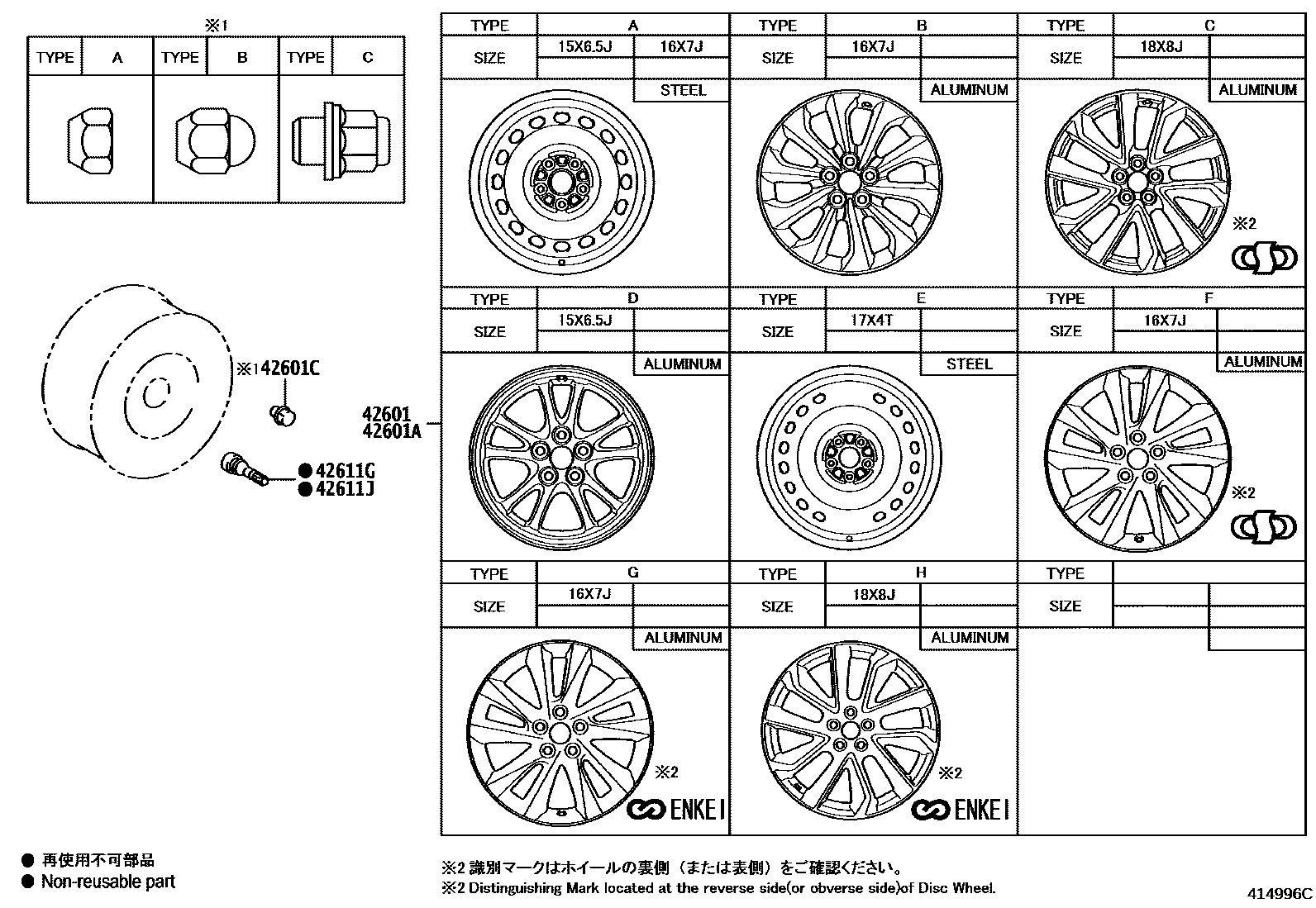

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X7J,#,LE PACKAGE,TYPE B:REFER ILLUST.; 16X7J,#,TYPE B:REFER ILLUST.
18X8J,#,TYPE C:REFER ILLUST.
16X7J,#,LE PACKAGE,TYPE F:REFER ILLUST.; 16X7J,#,LE PACKAGE2,TYPE F:REFER ILLUST.; 16X7J,#,TYPE F:REFER ILLUST.
16X7J,#,LE PACKAGE,TYPE G:REFER ILLUST.; 16X7J,#,LE PACKAGE2,TYPE G:REFER ILLUST.; 16X7J,#,TYPE G:REFER ILLUST.
18X8J,#,TYPE C:REFER ILLUST.
18X8J,#,TYPE H:REFER ILLUST.
15X6.5J, #,TYPE D:REFER ILLUST.
16X7J,#,TIRE&DISK WHEEL-205/55R16 ALL SEASON TIRE STEEL WHEEL,TYPE A:REFER ILLUST.; 16X7J,#,TYPE A:REFER ILLUST.
16X7J,#,TIRE&DISK WHEEL-205/55R16 ALL SEASON TIRE STEEL WHEEL,TYPE A:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,SPARE TIRE-T125/70D17,TYPE E:REFER ILLUST.; 17X4T,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
LE PACKAGE&TIRE&DISK WHEEL-205/55R16 ALL SEASON TIRE ALMINUM WHEEL,TYPE C:REFER ILLUST.; LE PACKAGE2&TIRE&DISK WHEEL-205/55R16 ALL SEASON TIRE ALMINUM WHEEL,TYPE C:REFER ILLUST.; PUERTO RICO SPEC&LE PACKAGE&TIRE&DISK WHEEL-205/55R16 ALL SEASON TIRE ALMINUM WHEEL,TYPE C:REFER ILLUST.; PUERTO RICO SPEC&LE PACKAGE2&TIRE&DISK WHEEL-205/55R16 ALL SEASON TIRE ALMINUM WHEEL,TYPE C:REFER ILLUST.; TYPE C:REFER ILLUST.
PUERTO RICO SPEC,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
TIRE&DISK WHEEL-205/55R16 ALL SEASON TIRE STEEL WHEEL,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TIRE INFLATION PRESSURE WARNING-WITHOUT
42611JVALVE (FOR TUBELESS TIRE SPARE)
5 parts on this diagram · 3 diagrams in section
