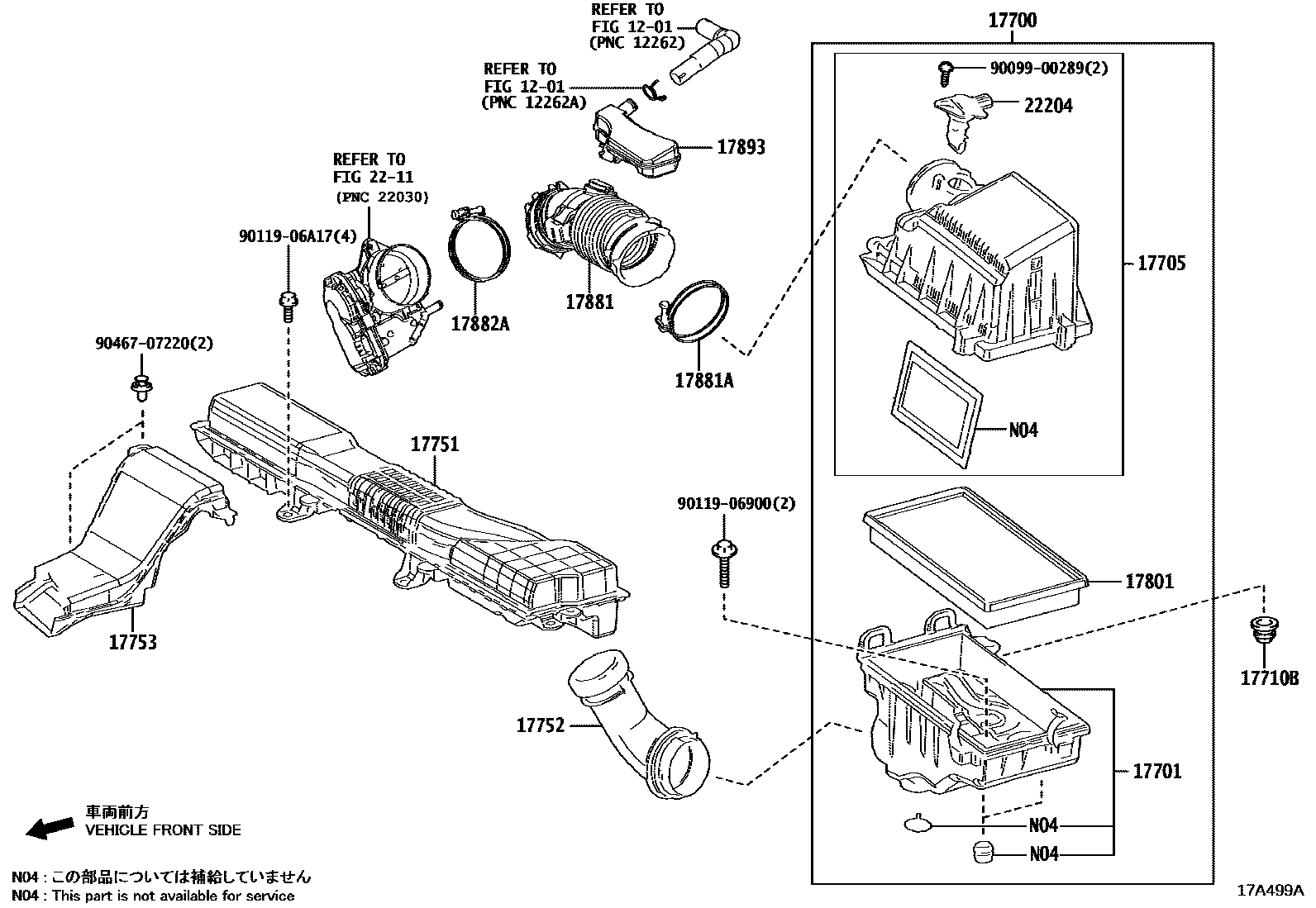

AIR CLEANER

0001 1 0003 1 0004 1 0005 1 0006 1

1201

17700CLEANER ASSY, AIR

main17700-24620iM20AFKS..MZEA12201901-202106

main17700-24630iM20AFKS..MZEA1#..L,S,Y202106-202409

main17700-37340i2ZRFXE..ZWE211201901-202208

main17700-37360i2ZRFAE..ZRE212201901-202106

main17700-37370i2ZRFAE..ZRE212202106-202208

main17700-37410i2ZRFXE..ZWE21#202209-202409

17701CASE SUB-ASSY, AIR CLEANER

main17701-24440iM20AFKS..MZEA12201901-202409

main17701-37230i2ZRFXE..ZWE211201901-202208

main17701-47080i2ZRFAE..ZRE212201901-202208

main17701-V1010i2ZRFXE..ZWE21#202209-202409

17705CAP SUB-ASSY, AIR CLEANER

main17705-24330iM20AFKS..MZEA12201901-202106

main17705-24340iM20AFKS..MZEA12202106-202409

main17705-37200i2ZRFXE..ZWE21#201901-202208

main17705-37230i2ZRFAE..ZRE212201901-202106

main17705-37240i2ZRFAE..ZRE212202106-202208

main17705-V1010i2ZRFXE..ZWE21#202209-202409

17710BGROMMET

main90480-18006i2ZRFXE..ZWE21#201901-202409

17751INLET, AIR CLEANER, NO.1

main17751-24010iM20AFKS..MZEA12201901-202208

main17751-24050iM20AFKS..MZEA18..D202209-202409

main17751-37110i2ZRFXE..ZWE211201901-202208

main17751-37150i2ZRFAE..ZRE212201901-202208

main17751-37170i2ZRFXE..ZWE21#202209-202409

17752INLET, AIR CLEANER, NO.2

main17752-24050iM20AFKS..MZEA1#..L,S,Y201901-202409

main17752-37170i2ZRFXE..ZWE21#201901-202208

main17752-37190i2ZRFXE..ZWE21#202209-202409

main17752-47020i2ZRFAE..ZRE212201901-202208

17753INLET, AIR CLEANER, NO.3

main17753-24030i2ZRFXE..ZWE21#202209-202409

main17753-37040i2ZRFAE..ZRE212201901-202208

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21060i2ZRFXE..ZWE21#201901-202409

main17801-77050iM20AFKS..MZEA12201901-202409

17881HOSE, AIR CLEANER, NO.1

main17881-24050iM20AFKS..MZEA1#..L,S,Y201901-202409

main17881-37330i2ZRFXE..ZWE21#201901-202208

main17881-37340i2ZRFAE..ZRE212201901-202208

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE..ZWE21#201901-202409

main96111-10780i2ZRFAE..ZRE212201901-202208

main96111-10850iM20AFKS..MZEA12201901-202409

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800iM20AFKS..MZEA1#..L,S,Y201901-202409

17893RESONATOR, INTAKE AIR

main17893-24020iM20AFKS..MZEA12201901-202409

main17893-37130i2ZRFXE..ZWE211201901-202208

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010i2ZRFXE..ZWE21#202209-202409

main22204-75030i2ZRFXE..ZWE211201901-202208

main22204-75040iM20AFKS..MZEA1#..L,S,Y201901-202409

9009900289

main90099-00289

9011906900

main90119-06900

9011906A17

main90119-06A17

9046707220

main90467-07220

19 parts on this diagram · 5 diagrams in section
