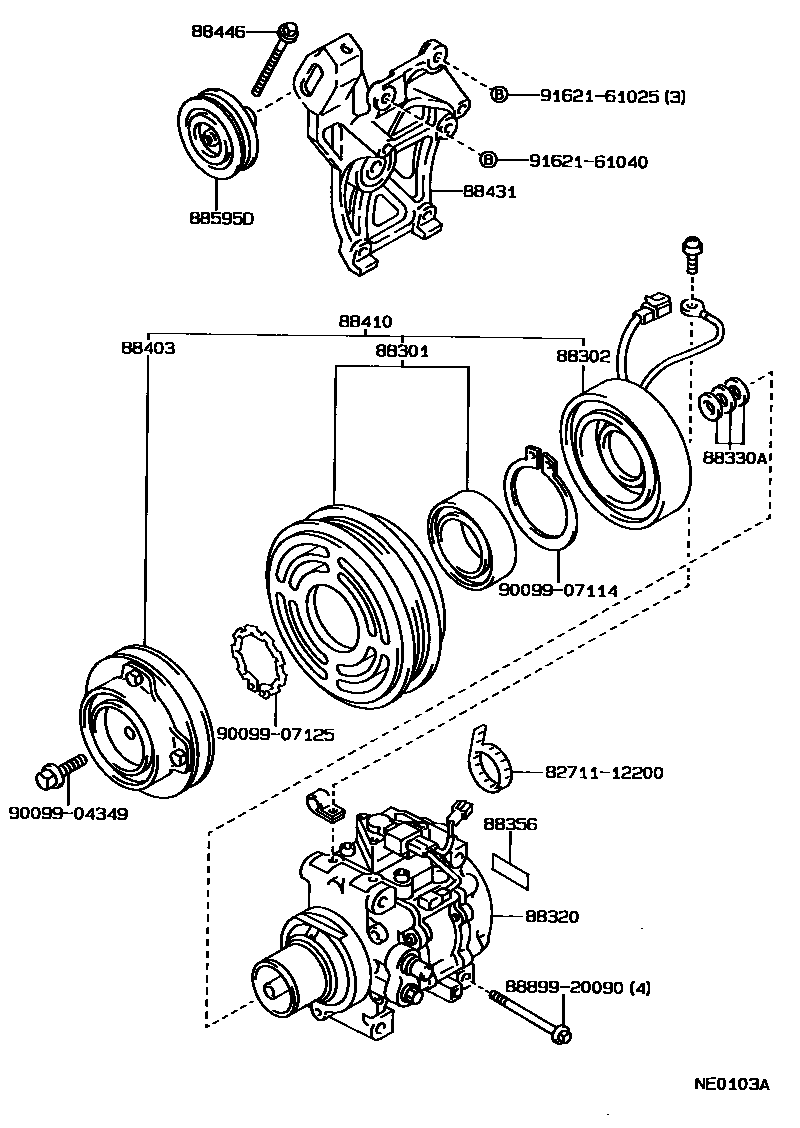

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iAE92..CBR198708-198801

main88412-12190iAE92..DX,SR5198801-199106

main88412-16030iAE92..EFI198708-199106

sub88412-32060

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12141iAE92..DX198708-199106

main88411-12150iAE92..SR5..CND198908-199106

main88411-16021iAE92..EFI198708-198908

sub88411-60030

main88411-60030iAE92..GTS..USA198908-199106

88320COMPRESSOR ASSY, COOLER

main88320-12520iAE92..USA..CBR198708-198908

sub88320-35H91

main88320-12530iAE92..CND..EFI198708-198908

W(POWER STEERING)

sub88320-12860

main88320-12540iAE92..CND..EFI198708-198810

sub88320-12850

main88320-12700iAE92..CND..EFI198808-198908

W(POWER STEERING)

main88320-12710iAE92..CND..EFI198808-198908

main88320-12720iAE92..SR5..USA..EFI198807-199106

sub88320-35H91

main88320-12740iAE92..USA..EFI198810-198908

main88320-12830iAE92..GTS198908-199106

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAE92198708-199106

88356LABEL, COMPRESSOR CAUTION

main88356-12010iAE92..3FC,5F;AE92..4FC..USA198708-199106

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iAE92198708-199106

88410CLUTCH ASSY, MAGNET

main88410-12240iAE92..CBR198708-198801

main88410-12270iAE92..CBR198801-198908

main88410-12300iAE92..GTS198908-199106

main88410-12330iAE92..DX,SR5198908-199106

main88410-16021iAE92..EFI198708-198908

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12380iAE92..DX,SR5198708-199106

main88431-12390iAE92..CND..EFI198708-198908

W(POWER STEERING)

main88431-12390iAE92..GTS198908-199106

main88431-12410iAE92..USA..EFI198708-198908

88446BOLT, IDLE PULLEY

main88446-12030iAE92..DX,SR5198708-199106

main88446-35010iAE92..GTS198708-199106

88595DPULLEY ASSY, IDLE

main88440-17010iAE92..DX,SR5198708-199106

main88440-32030iAE92..GTS198708-199106

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9162161025

main91621-61025

9162161040

main91621-61040

17 parts on this diagram · 4 diagrams in section
