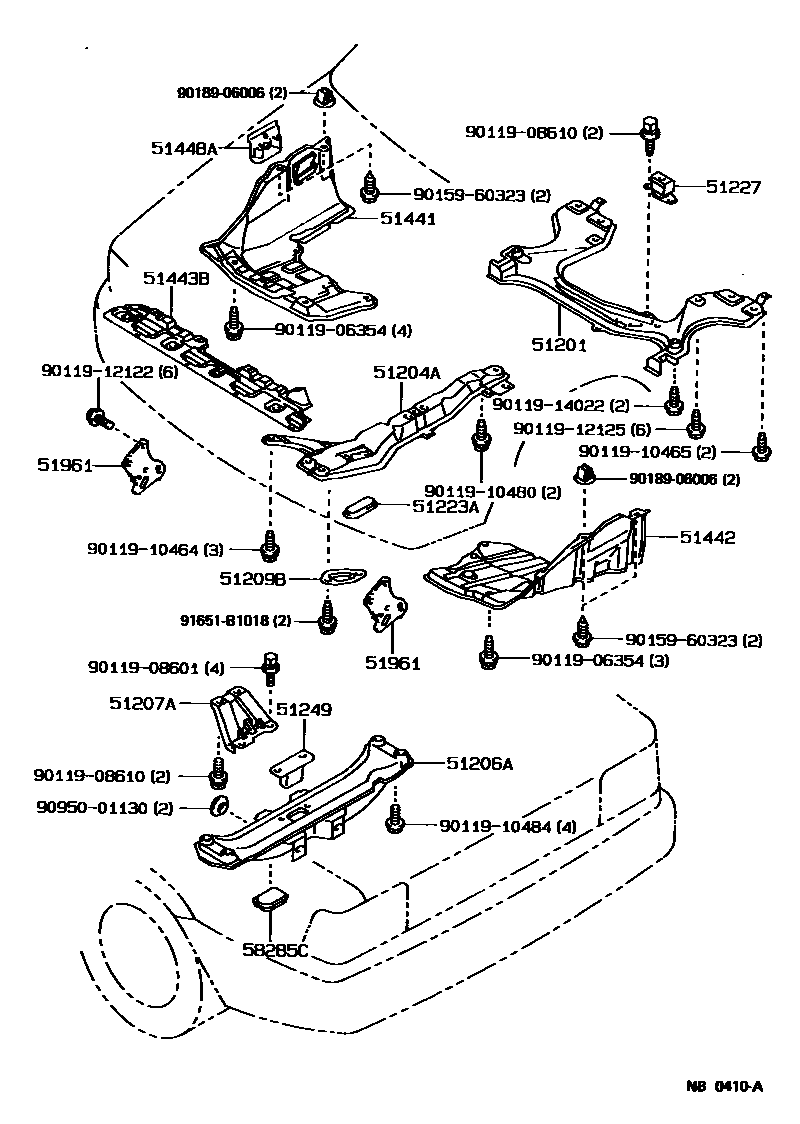

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12280iAE92198708-198710

main51201-12281iAE92198710-198711

main51201-12282iAE92198711-199106

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12060iAE92198708-199106

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12030iAE92198708-199106

51207AMEMBER SUB-ASSY, DIFFERENTIAL SUPPORT

main51207-12010iAE92..GTS198708-199106

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAE92198708-199106

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020×2iAE92198708-199106

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12030iAE92198708-198811

main51227-12031iAE92198811-199106

51249DAMPER, REAR SUSPENSION MEMBER

main51249-12020iAE92198708-198712

main51249-12030iAE92198712-198811

main51249-12040iAE92198811-199106

51441COVER, ENGINE UNDER, NO.1

main51441-12120iAE92198708-199106

51442COVER, ENGINE UNDER, NO.2

main51442-12050iAE92..5F198708-199106

main51442-12060iAE92..ATM198708-199106

51443BCOVER, ENGINE UNDER, NO.3

main51473-12010iAE92198708-199106

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE92198708-199106

51961HOOK, NO.1

main51963-12170×2iAE92198708-199106

58285CCOVER, REAR FLOOR HOLE

main58285-12020×2iAE92198708-199106

9011906354

main90119-06354

9011908601

main90119-08601

9011908610

main90119-08610

9011910464

main90119-10464

9011910465

main90119-10465

9011910480

main90119-10480

9011910484

main90119-10484

9011912122

main90119-12122

9011912125

main90119-12125

9011914022

main90119-14022

9015960323

main90159-60323

9018906006

main90189-06006

9095001130

main90950-01130

91651B1018

main91651-B1018

28 parts on this diagram · 1 diagram in section
