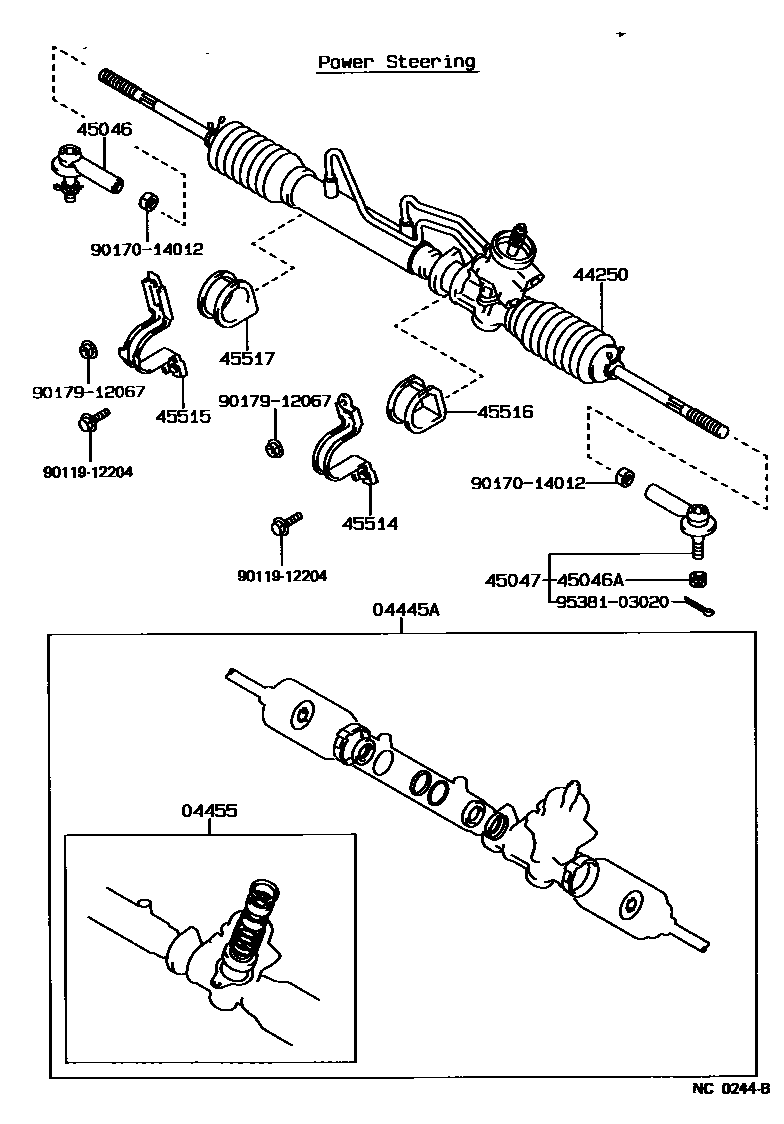

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12050iAE92..DX,SR5198708-199006

sub04445-12051

main04445-12051iAE92..DX,SR5199006-199106

main04445-12060iAE92..EFI198708-198812

sub04445-12061

sub04445-12120

main04445-12061iAE92..GTS198812-199106

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12030iAE92..DX,SR5198708-199006

sub04455-12031

main04455-12031iAE92..DX,SR5199006-199106

main04455-12040iAE92..EFI198708-198812

sub04455-12041

sub04455-12100

main04455-12041iAE92..GTS198812-199106

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12190iAE92..DX,SR5198708-199103

sub44250-12191

sub45517-12111

main44250-12191iAE92..DX,SR5199103-199106

main44250-12240iAE92..GTS198708-199103

sub44250-12241

sub45517-12111

main44250-12241iAE92..GTS199103-199106

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE92198708-199106

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE92198708-199106

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE92198708-199106

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12070iAE92..DX,SR5198708-199009

W(POWER STEERING)

main45514-12080iAE92198708-198905

main45514-12081iAE92198905-199106

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12150iAE92..GTS198708-199009

W(POWER STEERING)

main45515-12160iAE92198708-198905

sub45515-12161

main45515-12161iAE92198905-199106

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12050iAE92198905-199106

main45516-20010iAE92198905-199009

W(POWER STEERING)

main45516-20010iAE92198708-198905

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12110iAE92..DX,SR5198708-199103

W(POWER STEERING)

main45517-12111iAE92..GTS199103-199106

W(POWER STEERING)

main45517-12120iAE92..DX,SR5198708-199106

9011912204

main90119-12204

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 5 diagrams in section
