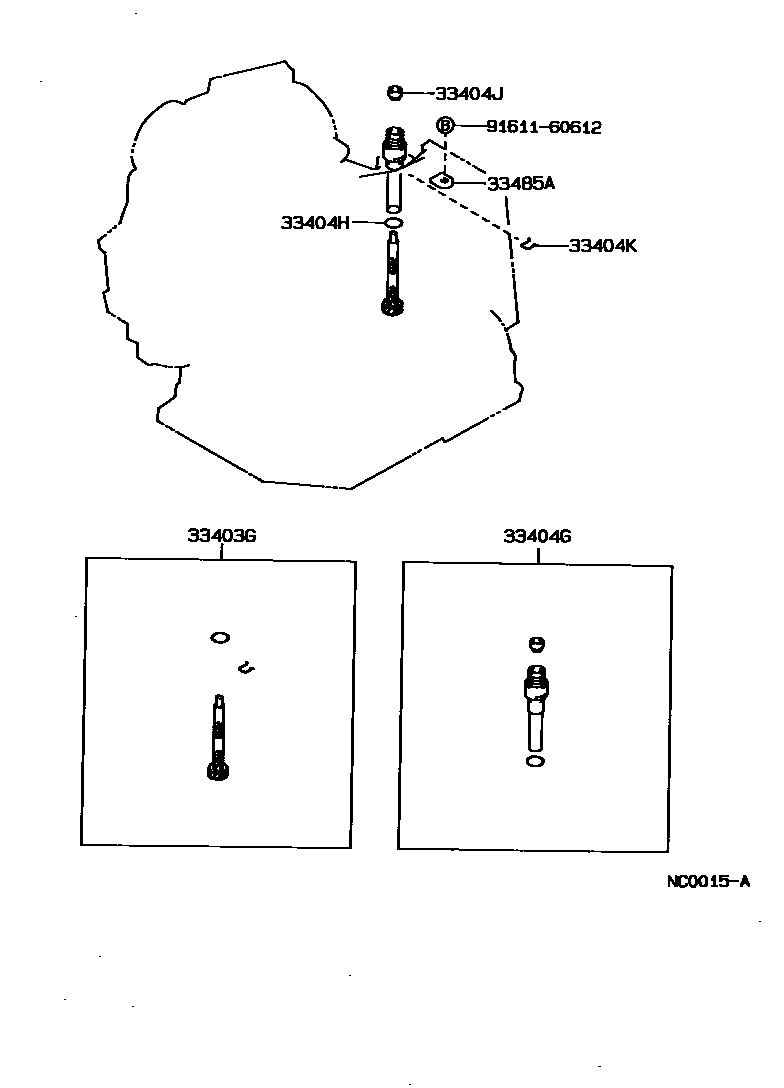

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A131L 0002 1A240L

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19285iAE92..4FC198708-199106

N=31,MARK 31:35

main33403-19305iAE92..3FC198708-199106

N=22,MARK 22:25

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iAE92..4FC198708-199106

main33404-32010iAE92..3FC198708-199106

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iAE92..3FC198708-199106

main96711-24030iAE92..4FC198708-199106

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE92..ATM198708-199106

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE92..ATM198708-199106

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iAE92..3FC198708-199106

main33485-30020iAE92..4FC198708-199106

9161160612

main91611-60612

7 parts on this diagram · 2 diagrams in section
